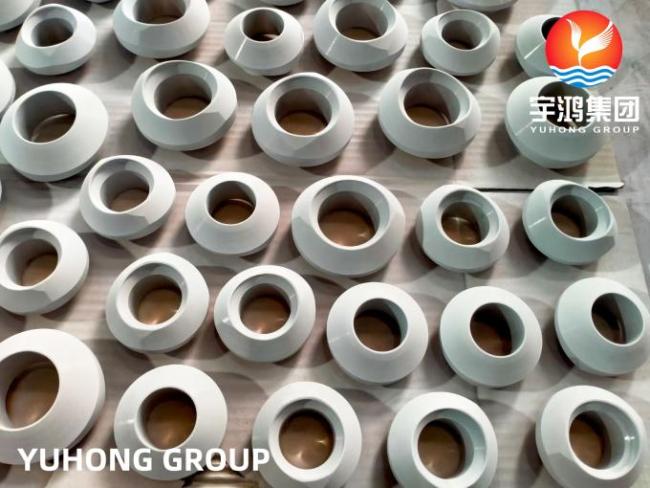

ASTM B366 C22 Hastelloy Insert Weldolet Nickel Alloy Forged Olets Fitting MSS-SP97

Price Negotiable

Price: NEGOTIABLE

MOQ: 1 pc

Delivery Time: 15-30 days

Brand: YUHONG SPECIAL STEEL

Product Description

ASTM B366 HASTELLOY C22 INSERT WELDOLET NICKEL ALLOY FORGED OLETS FITTING B16.11

Weldolet is the most common among all pipe olet. It is ideal for high pressure

weight application, and is welded onto the outlet of the run pipe. The end are

bevelled to facilitate this process, and therefore the weldolet is consider a

butt weld fitting.Weldolet is a branch butt weld connection fitting that is

adhered to outlet pipe to minimizes stress concentrations. And it provides overall

reinforcement.Normally it has the same or a higher schedule than the run pipe

schedule, and offers a variety of forged material grades, such as ASTM A105, A350, A182 etc.

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
Hastelloy C22	2.4602	N06022	NW 6022	NiCr21Mo14W

Material Test Certificates (MTC) for ASTM B366 Hastelloy C22 Olets as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Olets Size	1/8"-4" (DN6-DN100)
Olets Dimensions	ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc
Olets Connect Type	Welded, threaded, BW, SW
Specialized manufacturer of	Weldolets, Threadolets, Sockolets, Elbolets, Elbolets, Nippolets, Lateral Outlet, Coupolet, Flexolet, Sweepolet, Brazolet
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Olets uses & application	Olets To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Hastelloy C22 Olets also have a thicker wall for higher-pressure and high/low temperatures applications. Alloy C22 Olets are used, alternatively to welded connections, to facilitate maintenance operations, mainly depends, on the required strength for the flanged joint.

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
Hastelloy C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %
