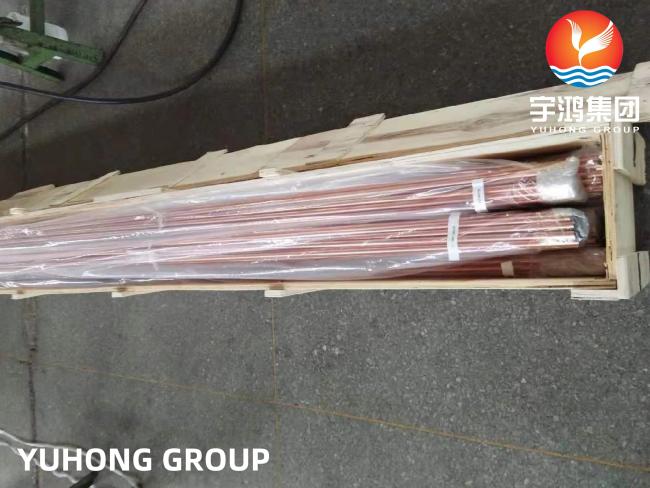

ASTM C12200 Cooper Alloy Steel Seamless Tube For Air Conditioning/Refrigeration Field Service
ASTM B111 C12200 COPPER NICKEL ALLOY SEAMLESS TUBE FOR CONDENSER
Copper Nicekl Alloy, prevents against seawater corrosion, high anti-fouling properties against sea microorganism. Widely applied to offshore and related industries such as ship-building & repairing, petrochemical, natural gas and so on.
What CTS Tubes can do?
First of all, CTS can supply Copper Nickel Tubes, Brass Tubes, Copper Alloy Tubing, Aluminium Brass Tubes, and Admiralty Brass Tubes, standard ASTM B111 C44300 C68700 C71500 or C70600.
Beside copper nickel tubes, there are also aluminium brass tubes, and admiralty brass tubes. For all standards, material, and size range, please check our Description and Technical information.
C12200 has similar corrosion resistance to C11000. It gives excellent resistance to weathering and very good resistance to many chemicals. It is often used specifically for corrosion resistance. It is suitable for use with most waters, and can be used underground because it resists soil corrosion. It resists non-oxidising mineral and organic acids, caustic solutions and saline solutions.
Specifications
| Grade | USA | U.K | Germany | Japan |
| China BG | ASTM | BS | DIN | JIS H |
| T 2 | C11000 | C101 / C102 | E-Cu58 | C1100 |
| TP 2 | C12200 | C106 | SF-Cu | C1220 |
| Type of product | Grade(s) | Technical requirements according to |
| Copper tube/ pipe | UNS C12200 | ASTM B111, ASME SB111 ASTM B135, ASME SB135 ASTM B251, ASME SB251 BS EN 1057 or closer |
| Brass tube/pipe | UNS C23000, UNS C26200 ... UNS C44300, UNS C68700 ... |
|
| Cupronickel tube/pipe | UNS C70600, UNS C71500 UNS C71640 |
Chemical Compositions
| Elements | ||
| Cu | P | |
| Min (%) | 99.9 | 0.015 |
| Max (%) | - | 0.04 |
Mechincal Properties
| Form | Temper | Temper Code | Tensile Strength (ksi) | YS-0.5% Ext (ksi) | Elongation (%) | Rockwell B scale | Rockwell F scale | Rockwell 30T scale | Shear Strength (ksi) | Fatigue Strength (ksi) | Section Size (in) | Cold Work (%) |
| Flat Products | 1/2 Hard | H02 | 42 Typ | 14 Typ | 40 Typ | 84 Typ | 50 Typ | 26 Typ | 13 Typ | 0.04 | ||
| 1/4 Hard | H01 | 38 Typ | 30 Typ | 35 Typ | 25 Typ | 70 Typ | 25 Typ | 0.25 | ||||
| 1/4 Hard | H01 | 38 Typ | 30 Typ | 25 Typ | 25 Typ | 70 Typ | 36 Typ | 25 Typ | 0.04 | |||
| 1/8 Hard | H00 | 36 Typ | 28 Typ | 30 Typ | 10 Typ | 60 Typ | 25 Typ | 25 Typ | 0.04 | |||
| 1/8 Hard | H00 | 36 Typ | 28 Typ | 40 Typ | 10 Typ | 60 Typ | 25 Typ | 0.25 | ||||
| As Hot Rolled | M20 | 32 Typ | 10 Typ | 50 Typ | 40 Typ | 22 Typ | 0.25 | |||||
| As Hot Rolled | M20 | 34 Typ | 10 Typ | 45 Typ | 45 Typ | 23 Typ | 0.04 | |||||
| Extra Spring | H10 | 57 Typ | 53 Typ | 4 Typ | 62 Typ | 95 Typ | 64 Typ | 29 Typ | 0.04 | |||
| Hard | H04 | 50 Typ | 45 Typ | 6 Typ | 50 Typ | 90 Typ | 57 Typ | 28 Typ | 13 Typ | 0.04 | ||
| Hard | H04 | 45 Typ | 40 Typ | 20 Typ | 45 Typ | 85 Typ | 26 Typ | 1 | ||||
| Hard | H04 | 50 Typ | 45 Typ | 12 Typ | 50 Typ | 90 Typ | 28 Typ | 0.25 | ||||
| Nominal Grain Size 0.025 mm | OS025 | 34 Typ | 11 Typ | 45 Typ | 45 Typ | 23 Typ | 11 Typ | 0.04 | ||||
| Nominal Grain Size 0.050 mm | OS050 | 32 Typ | 10 Typ | 50 Typ | 40 Typ | 22 Typ | 0.25 | |||||
| Nominal Grain Size 0.050 mm | OS050 | 32 Typ | 10 Typ | 45 Typ | 40 Typ | 22 Typ | 0.04 | |||||
| Spring | H08 | 55 Typ | 50 Typ | 4 Typ | 60 Typ | 94 Typ | 63 Typ | 29 Typ | 14 Typ | 0.04 | ||
| Pipe | Hard | H04 | 50 Typ | 10 Typ | 50 Typ | 90 Typ | 28 Typ | 30 | ||||
| Tube | Hard Drawn | H80 | 55 Typ | 8 Typ | 60 Typ | 95 Typ | 63 Typ | 29 Typ | 19 Typ | 0.065 | 40 | |
| Light Drawn, Light Cold Rolled | H55 | 40 Typ | 32 Typ | 25 Typ | 35 Typ | 77 Typ | 45 Typ | 26 Typ | 14 Typ | 0.065 | 15 | |
| Nominal Grain Size 0.025 mm | OS025 | 34 Typ | 11 Typ | 45 Typ | 45 Typ | 23 Typ | 0.065 | |||||
| Nominal Grain Size 0.050 mm | OS050 | 32 Typ | 10 Typ | 45 Typ | 40 Typ | 22 Typ | 11 Typ | 0.065 |
Applications
1. Air conditioning and refrigeration.
2. Gas, heater, and oil burner lines.
3. Plumbing pipe and steam tubes.
4. Brewery and distillery tubes.
5. Gasoline, hydraulic, and oil lines.
6. Rotating bands.
