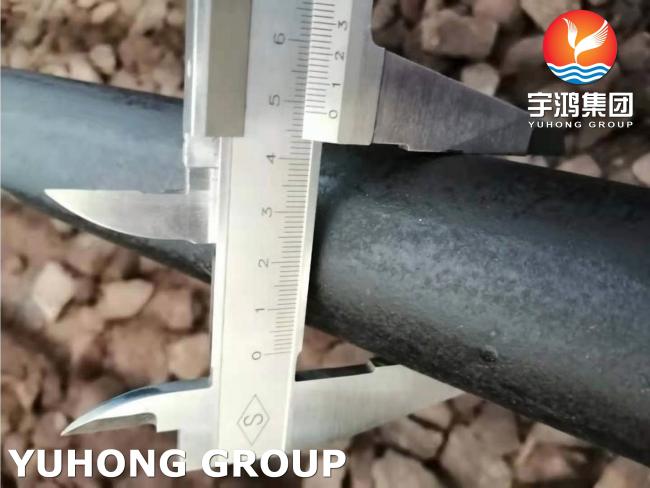

Black Painting Beveled ASTM A335 P11 Alloy Steel Seamless Pipe

Name: Black Painting Beveled ASTM A335 P11 Alloy Steel Seamless Pipe
Brand: Yuhong Group Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 1000KGS

Delivery Time: Depends on quantity

Brand: YUHONG

Product Description

Black Painting Beveled ASTM A335 P11 Alloy Steel Seamless Pipe

P11 Pipe is a chromium molybdenum alloy made pipe. It is used in the high temperature services. It is corrosion resistant, strong and ductile. YUHONG is a manufacturer of different grades of the chromium molybdenum alloy made pipes.

We are also one of the leading ASTM A335 P11 Pipe suppliers and stockiest. We supply these products to a large customer base over a range of industries. The main industries that use these products are the oil and gas industry, the power generation industry and the petrochemical industries.

CHEMICAL COMPOSITION

Grade	C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
ASTM A335 P11	0.015 max	0.30-0.60	0.025 max	0.025 max	0.50 max	4.00-6.00	0.45-0.65

Mechanical Properties Table

Tensile Strength, in MPa	Yield Strength, in MPa	Elongation, %
415 minimum	205 minimum	30 minimum

Size Chart of A335 Gr. P11 Pipe

NB	Size	OD	40S	5S	10S	S10	S20	S40	S60	XS/80S	S80	S100	S120	S140	S160	XXS
NB	Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
	1/8	10.29			1.2			1.73			2.41
	1/4	13.72			1.7			2.24			3.02
	3/8	17.15			1.7			2.31			3.2
15	1/2	21.34	2.8	1.7	2.1			2.77		3.73	3.73				4.78	7.47
20	3/4	26.67	2.9	1.7	2.1			2.87		3.91	3.91				5.56	7.82
25	1	33.4	3.4	1.7	2.8			3.38		4.55	4.55				6.35	9.09
32	1 1/4	42.16	3.6	1.7	2.8			3.56		4.85	4.85				6.35	9.7
40	1 1/2	48.26	3.7	1.7	2.8			3.68		5.08	5.08				7.14	10.2
50	2	60.33	3.9	1.7	2.8			3.91		5.54	5.54				9.74	11.1
65	2 1/2	73.03	5.2	2.1	3.1			5.16		7.01	7.01				9.53	14
80	3	88.9	5.5	2.1	3.1			5.49		7.62	7.62				11.1	15.2
90	3 1/2	101.6	5.7	2.1	3.1			5.74		8.08	8.08
100	4	114.3	6	2.1	3.1			6.02		8.56	8.56		11.1		13.5	17.1
125	5	141.3	6.6	2.8	3.4			6.55		9.53	9.53		12.7		15.9	19.1
150	6	168.3	7.1	2.8	3.4			7.11		10.97	11		14.3		18.3	22
200	8	219.1	8.2	2.8	3.8		6.4	8.18	10.3	12.7	12.7	15.1	19.3	20.6	23	22.2
250	10	273.1	9.3	3.4	4.2		6.4	9.27	12.7	12.7	15.1	19.3	21.4	25.4	28.6	25.4
300	12	323.9	9.5	4	4.6		6.4	10.3	14.3	12.7	17.5	21.4	25.4	28.6	33.3	25.4
350	14	355.6	9.5	4	4.8	6.4	7.9	11.1	15.1	12.7	19.1	23.8	27.8	31.8	35.7
400	16	406.4	9.5	4.2	4.8	6.4	7.9	12.7	16.7	12.7	21.4	26.2	31	36.5	40.5
450	18	457.2	9.5	4.2	4.8	6.4	7.9	14.3	19.1	12.7	23.8	29.4	34.9	39.7	45.2
500	20	508	9.5	4.8	5.5	6.4	9.5	15.1	20.6	12.7	26.2	32.5	38.1	44.5	50
550	22	558.8	9.5	4.8	5.5	6.4	9.5		22.2	12.7	28.6	34.9	41.3	47.6	54
600	24	609.6	9.5	5.5	6.4	6.4	9.5	17.5	24.6	12.7	31	38.9	46	52.4	59.5
650	26	660.4	9.5			7.9	13			12.7
700	28	711.2	9.5			7.9	13			12.7
750	30	762	9.5	6.4	7.9	7.9	13			12.7
800	32	812.8	9.5			7.9	13	17.5		12.7
850	34	863.6	9.5			7.9	13	17.5		12.7
900	36	914.4	9.5			7.9	13	19.1		12.7

ASTM A335 P11 Pipe Weight Chart

Size NPS	Pipe O.D.	Wall Thickness	Pipe I.D.	Weight per Foot	Standard to XXHY	Schedule Pipe #	Section Modulus	Gallon Capacity Per Linear Foot
1/2	0.84	0.109	0.622	0.85	STD	40	.0407	.0158
		0.188	0.464	1.31		160	.0528	.0088
		0.294	0.252	1.72	XXHY		.0577	.0026
		0.219	0.612	1.95		160	.1006	.0153
3/4	1.05	0.113	0.824	1.13	STD	40	.0705	.0277
		0.147	0.546	1.09	XHY	80	.0478	.0122
		0.154	0.742	1.48	XHY	80	.0853	.0225
		0.308	0.434	2.44	XXHY		.1103	.0077
1	1.315	0.133	1.049	1.68	STD	40	.1328	.0449
		0.179	0.957	2.17	XHY	80	.1606	.0374
		0.250	0.815	2.85		160	.1904	.0271
		0.358	0.599	3.66	XXHY		.2136	.0146
1 1/4	1.66	0.140	1.380	2.27	STD	40	.2346	.0777
		0.191	1.278	3.00	XHY	80	.2913	.0666
		0.250	1.160	3.77		160	.3421	.0549
		0.382	0.896	5.22			.4110	.0328
1 1/2	1.90	0.145	1.610	2.72	STD	40	.3262	.1058
		0.200	1.500	3.63	XHY	80	.4118	.0918
		0.281	1.338	4.86		160	.5079	.0730
		0.400	1.100	6.41			.5977	.0494
2	2.375	0.109	2.157	2.64		10	.4205	.1898
		0.154	2.067	3.66	STD	40	.5606	.1743
		0.218	1.939	5.03	XHY	80	.7309	.1534
		0.250	1.875	5.68			.8045	.1434
		0.281	1.813	6.29			.8666	.1344
		0.344	1.687	7.47		160	.9806	.1161
		0.436	1.503	9.04	XXHY		1.1043	.0922
2 1/2	2.875	0.120	2.635	3.53		10	.6870	.2833
		0.203	2.469	5.80	STD.	40	1.0640	.2487
		0.216	2.443	6.14			1.1169	.2435
		0.250	2.375	7.02			1.2468	.2301
		0.276	2.323	7.67	XHY	80	1.3386	.2202
		0.375	2.125	10.02		160	1.6371	.1842
		0.552	1.771	13.71	XXXHY		1.9971	.1280
3	3.50	0.120	3.260	4.34			1.0411	.4336
		0.156	3.188	5.58			1.3122	.4147
		0.172	3.156	6.12			1.4265	.4064
		0.188	3.124	6.66			1.5342	.3984
		0.216	3.068	7.58	STD.	40	1.7241	.3840
		0.250	3.000	8.69			1.9372	.3672
		0.281	2.938	9.67			2.1207	.3521
		0.300	2.900	10.26	XHY	80	2.2253	.3431
		0.438	2.624	14.34		160	2.8774	.2811
		0.600	2.300	18.6	XXHY		3.4243	.2158
3 1/2	4.0	0.120	3.760	4.98		10	1.3776	.5768
		0.226	3.548	9.12	STD.	140	2.3939	.5136
		0.250	3.500	10.02			2.6001	.4998
		0.281	3.438	11.17			2.8562	.4821
		0.318	3.364	12.52	XHY	80	3.1400	.4617
		0.636	2..728	22.87	XXHY		4.8795	.3085
4	4.5	0.120	4.260	5.62		10	1.7612	.7404
		0.156	4.188	7.24			2.2354	.7156
		0.188	4.124	8.67			2.6296	.6942
		0.203	4.094	9.32			2.8173	.6838
		0.219	4.062	10.02			3.0184	.6725
		0.237	4.026	10.80	STD.	40	3.2145	.6613
		0.250	4.000	11.36			3.3611	.6528
		0.281	3.938	12.67		60	3.7021	.6326
		0.312	3.876	13.97			4.0273	.6126
		0.337	3.826	15.00	XHY	80	4.2713	.5972
		0.438	3.624	19.02		120	5.1790	.5361
		0.531	3.438	22.53		160	5.8997	.4822
		0.674	3.152	27.57	XXHY		6.7927	.4054
5	5.563	0.188	5.187	10.80			4.1161	1.0979
		0.219	5.125	12.51			4.7279	1.0716
		0.258	5.047	14.63	STD.	40	5.4500	1.0391
		0.281	5.001	15.87			5.8644	1.0204
		0.312	4.939	17.51			6.4074	.99647
		0.344	4.875	19.19			6.9358	.9696
		0.375	4.813	20.80	XHY	80	7.4300	.9449
		0.500	4.563	27.06		120	9.2534	.8495
		0.625	4.313	32.99		160	10.7976	.7590
		0.750	4.063	38.59	XXHY		12.0954	.6734
6	6.625	0.109	6.407	7.59		5	3.5769	1.6748
		0.134	6.357	9.30		10	4.3475	1.6488
		0.156	6.313	10.79			5.0107	1.6260
		0.188	6.249	12.94			5.9351	1.5937
		0.203	6.219	13.94			6.3804	1.5780
		0.219	6.187	15.00			6.8261	1.5620
		0.250	6.125	17.04			7.6905	1.5306
		0.280	6.065	18.99	STD.	40	8.4958	1.5008
		0.312	6.001	21.06			9.3416	1.4688
		0.344	5.937	23.10			10.111	1.4391
		0.375	5.875	25.05			10.893	1.4082
		0.432	5.761	28.60	XHY	80	12.224	1.3541
		0.500	5.625	32.74			13.711	1.2909
		0.562	5.501	36.43		120	14.9806	1.2346
		0.625	5.375	40.09			16.1821	1.1787
		0.719	5.187	45.39		160	17.8243	1.0977
		0.864	4.897	53.21	XXHY		20.025	.9784
		1.000	4.625	60.13			21.7719	.8727
		1.125	4.375	66.14			23.1237	.7809

Permissible Variation In Wall Thickness

NPS [DN] Designator	Tolerance, % from Specified
	Over	Under
1/8 to 2 1/2 [6 to 65] incl., all t/D ratios	20.0%	12.5%
Above 2 1/2 [65], t/D < or = 5%	22.5%	12.5%
Above 2 1/2 [65], t/D > 5%	15.0%	12.5%
(t = Specified Wall Thickness; D = Specified Outside Diameter)

Tensile Strengths at Elevated Temperatures

Temp. °C	Tensile Strength MPa
40	414
100	414
150	414
200	414
250	414
300	414
325	414
350	414
375	414
400	414
425	414
450	404
475	390
500	371
525	349

APPLICATIONS:

Spacecraft

Turbine blades of jet engines

Nuclear reactors
