ASTM A815 WP32750 - S Elbow Super Duplex Butt Welded Fittings ASME B16.9
Price:
NEGOTIABLE
MOQ:
1PC
Delivery Time:
10-75DAYS
Brand:
YuHong
Product Description

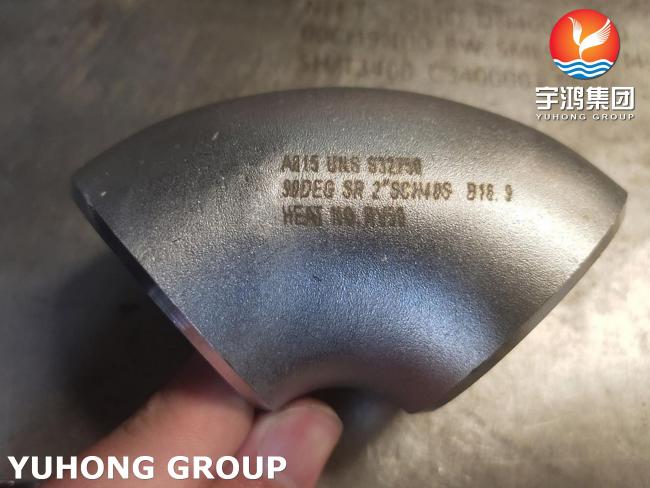

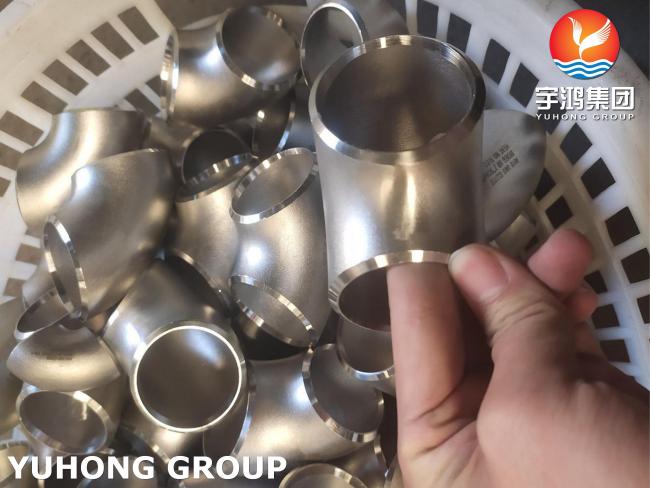

ASTM A815 WP32750-S ELBOW Super Duplex Butt Welded Fittings ASME B16.9
Duplex stainless steels are a family of stainless steels. These are called duplex (or austenitic-ferritic) grades because their metallurgical structure consists of two phases, austenite (face-centered cubic lattice) and ferrite (body centered cubic lattice) in roughly equal proportions. They are designed to provide better corrosion resistance, particularly chloride stress corrosion and chloride pitting corrosion.
Specification
ASTM A815/A815M-20 Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings.
| Specifications | ASTM A815 / ASME SA815 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 24″, Welded Butt Weld Fittings: 1/2″ – 48″ |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
Applications:
- 1. Chemical processing, transport and storage
- 2. Oil and gas exploration and offshore rigs
- 3. Oil and gas refining
- 4. Marine environments
- 5. Pollution control equipment
- 6. Pulp & paper manufacturing
- 7. Chemical process plant
