SMT Cleaning Machine Stencil Cleaner with 200-600L/min Air consumption Machine Description:

CW-750 pneumatic stencil cleaner is designed for solder paste and red glue printing stencil cleaning of SMT process. Driven by compredded air, constructed by super parts of pneumatic industry and our good manufacturing processing, we guarantee an efficient, reliable cleaning machine and high quality cleaning result. By “One button” easy operation, the machine complete “clean+dry” process automatically. Special designed pipe and patent rotation pod system guarantee stable jet pressure on stencil.

Machine Feature:

1. SUS304 machine structure, acid and alkali corrossion resistance, 10 years life time
2. Totally driven by compressed air, no electric power, totally no fire or explosion risk caused by electrical spark
3. One button easy operation, clean and dry complete automatically
4. Special designed rotate rod and nozzle, ensure good cleaning quality and guarantee stable stencil tension
5. Equipped auto liquid fill in and drain function
6. Inner-lock safety door, once open, machine stopped immediately to ensure operator safety
7. 3 level precise filtering system to make liquid clean by recycled used.

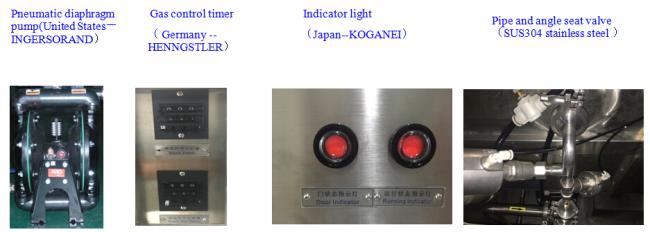

8. Super well-know pneumatic parts from all over the word ensure stable using of the machine
9. Modular design, easy maintenance
10. Liquid recycle use to ensure low consumption

Machine Specification:

Advantages:

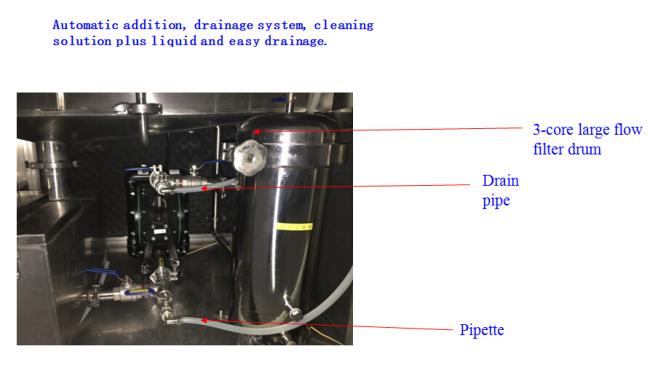

Automatic addition, drainage system, cleaning solution plus liquid and easy drainage.

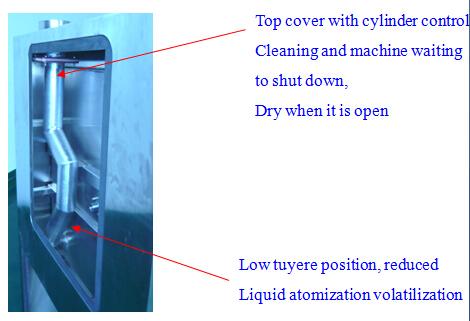

Three-stage filtration system, low exhaust and S-type exhaust pipe design, cleaning fluid recycling, the amount of liquid is very small

Global quality control devices to ensure high quality, stable performance, long service life.

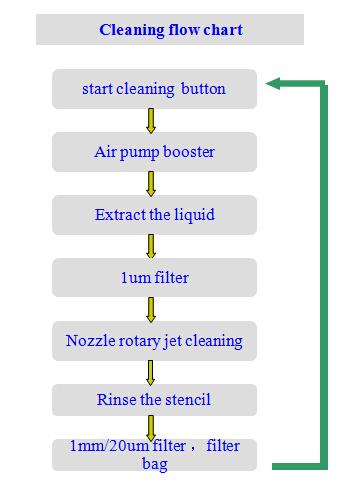

Cleaning process
