Key Features of SFPPCAGE001-02-L EMI SFP+ Cage:

• Connector Type: SFP+ Cage, supports 10 Gb/s data rates ideal for high-bandwidth applications like 10 Gigabit Ethernet and Fibre Channel.
• Contact Plating: The SFPPCAGE001-02-L does not include additional plating in the contact area.
• Package: Implemented using Through-Hole Technology, which provides a stable attachment to the PCB.
• PCB Mount Angle: Features a side-entry mount angle.
• RoHS Compliance: Fully compliant with RoHS-6 regulations, this SFP+ Cage is free from hazardous substances.
• Shield EMI Tabs: Equipped with Electromagnetic Interference shielding tabs ensuring signal integrity and reliable data transmission.
• Dimensions: Compact footprint measures 48.8 mm in length, 14.8 mm in width, and 9.8 mm in height.
• Number of Ports: This model features a 1x1 port configuration for single-port applications.
• Temperature Range: Operates within -40°C to +85°C.

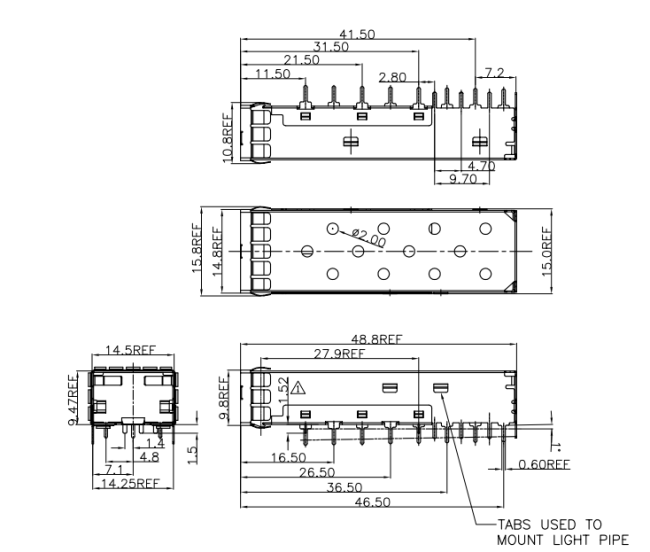

SFPPCAGE001-02-L Drawing:

Applications of Pulse SFP+ Cage:

1. Networking Equipment: Ideal for switches, routers, and network interface cards (NICs).
2. Data Centers: Provides reliable connections for servers and storage devices.
3. Telecommunications: Essential for infrastructure such as base stations and networking hardware.
4. High-Performance Computing: Supports demanding data processing and transfer needs.
5. Test and Measurement Equipment: Ensures accurate and interference-free data collection and analysis.
