Product Type Features:

• Connector Product Type: Connector Assembly
• Modular Jack & Plug Interface Type: RJ45
• Modular Jacks & Plugs Products: RJ Type Jacks & Plugs
• Modular Connector Style: Jack
• Grounding Options: PCB and Panel Ground
• Connector & Contact Terminates To: Printed Circuit Board

Configuration Features:

• Multiple Port Configuration: Stacked
• Port Configuration: Multiple Ports
• Port Matrix Configuration: 2 x 8
• Connector Contact Density: Standard
• Number of Positions: 8
• Number of Loaded Positions: 8
• PCB Mount Orientation: Right Angle
• Number of PCB Ground Tabs: 13

Body Features:

• Shield Material: Copper Alloy
• Shield Plating Material: Nickel
• Modular Jack Latch Orientation: Standard - Latch Down
• Connector Profile: Low
• Grounding Tab Plating Material: Tin over Copper

Contact Features:

• PCB Contact Termination Area Plating Material: Tin
• Contact Underplating Material: Nickel
• Contact Current Rating (Max) (A): .2, 1.5
• Contact Mating Area Plating Material: Gold
• Contact Base Material: Phosphor Bronze
• Contact Mating Area Plating Material Thickness: 1.27 µm [ 50 µin ]

Termination Features:

• Termination Method to PCB: Through Hole - Solder
• Termination Post & Tail Length: 3.56 mm [ .14 in ]

Mechanical Attachment:

• Panel Mount Feature: Without
• Connector Mounting Type: Panel Mount

Housing Features:

• Mating Entry Location: Side
• Centerline (Pitch): 1.02 mm [ .04 in ]
• Housing Color: Black
• Housing Material: PCT GF

Dimensions:

• PCB Thickness (Recommended): 1.57 mm [ .062 in ]
• Connector Height: 25.17 mm [ .991 in ]

Usage Conditions:

• Operating Temperature Range: -40 – 85 °C [ -40 – 185 °F ]

Operation/Application:

• Indicator Type: Not Illuminated
• Shielded: Yes
• Circuit Application: Signal

Industry Standards:

• UL Flammability Rating: UL 94V-0

• Performance Category: Cat 5

Packaging Features:

• Packaging Quantity: 10
• Packaging Method: Tray

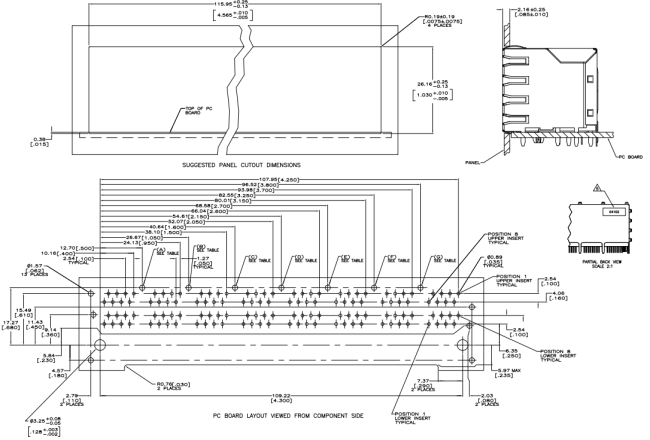

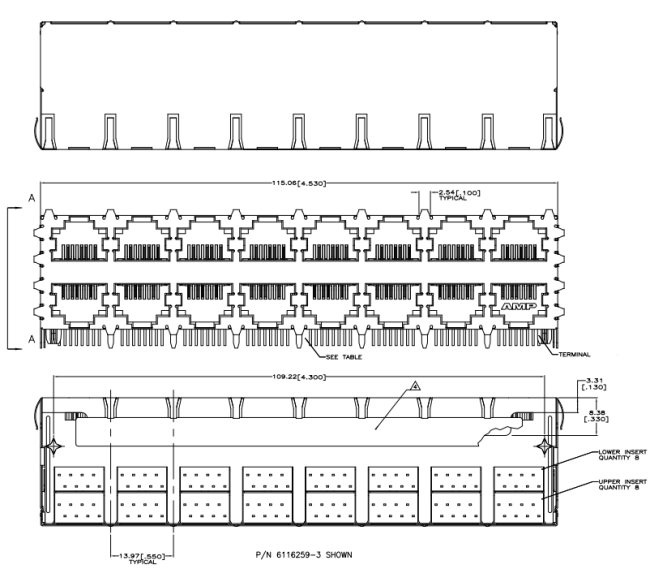

 RJ45 2x8 Datasheet:
