4pr 30W PoE Ethernet Magnetics HXU6200NL / HXU6200NLT Medical Grade

Applications of HXU6200NL HXU6200NLT PoE Ethernet Transformer:

• MRI Machine
• Surgical Equipment
• CPAP
• Infusion Pumps
• Dialysis equipment

Key Features of Medical Grade Ethernet Magnetics​:

1. Pour-Fill Construction Ensures robust construction.
2. Reinforced Medical Safety Isolation.
3. Confirmed compliance with RoHS-6 standards.
4. Designed for 1000BASE-T networks.
5. UL60601 Qualified Meets standards for medical applications.
6. Capable of handling 4 pairs of Power over Ethernet at 30W.
7. Operating temperature range from -40°C up to +85°C.
8. Provides 3KVrms high voltage isolation.
9. 4mm Creepage ensures safe separation distances.
10. 2.5mm Air Clearance maintains appropriate air gaps for safety.
11. +16 Years production support.
12. Warranty for Ten Years.
13. 100% Electrical Testing.

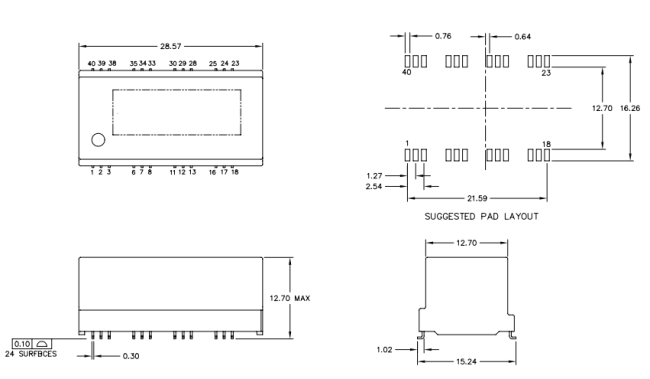

HXU6200NL / HXU6200NLT Data Sheet--Mechanical:

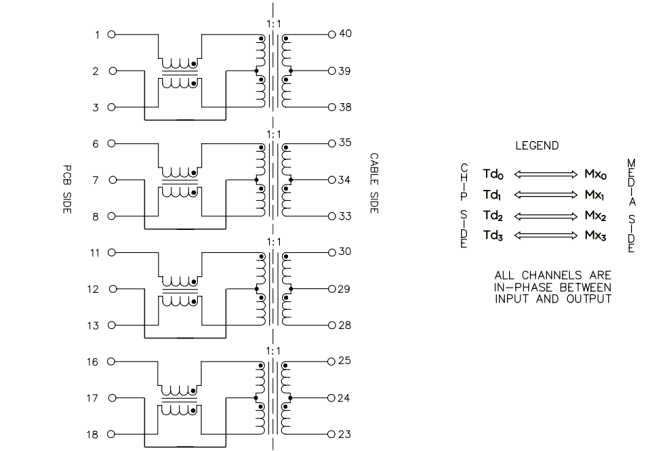

HXU6200NL / HXU6200NLT Data Sheet--Schematics:
