2x6 RJ45 MagJack 1-1840055-4 1000BASE-T Ethernet ICM Fast Delivery
Price:
$0.9 - $2.1
MOQ:
100pcs
Delivery Time:
About 3-5 Days
Brand:
Link-pp
Product Description
1-1840055-4 MagJack Overview:
The 1-1840055-4 Magjacks ICM is a 12-port (2x6) RJ45 connector with Integrated Magnetics designed for 1000BASE-T applications. Combining integrated magnetics and LED indicators within a compact, shielded housing, it delivers robust signal integrity, power efficiency, and real-time network status monitoring. This module is ideal for high-density networking equipment requiring reliable data and power transmission in industrial, commercial, and IoT environments.
Technical Specifications:
|
Part Number |
1-1840055-4 |
|---|---|
|
Series |
Integrated Connector Module (ICM) |
| Connector Type | RJ45 MagJack |
| Number of Ports | 2x6 |
| Ethernet Speed | 10/100/1000BASE-T |
| LED Indicators | Yes (Green/Yellow per port) |
| Tab Direction | Up and Down |
| Mounting Type | Through-Hole (THT) |
| Orientation | Right Angle (90°) |
| Shielding | Yes |
| Operating Temperature | 0°C to +70°C |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold (50µin / 1.27µm) |
| Shield Material | Brass |
| Housing Material | Thermoplastic (UL 94V-0 rated) |
| Turn Ratio(±5%) | 1:1 |
| Compliance | RoHS Compliant |

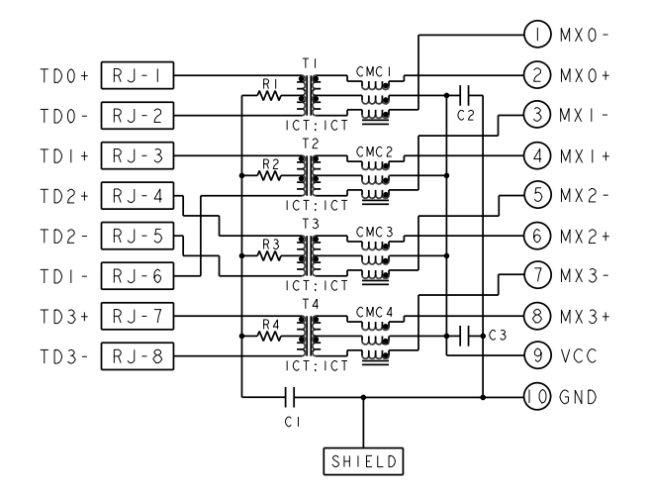

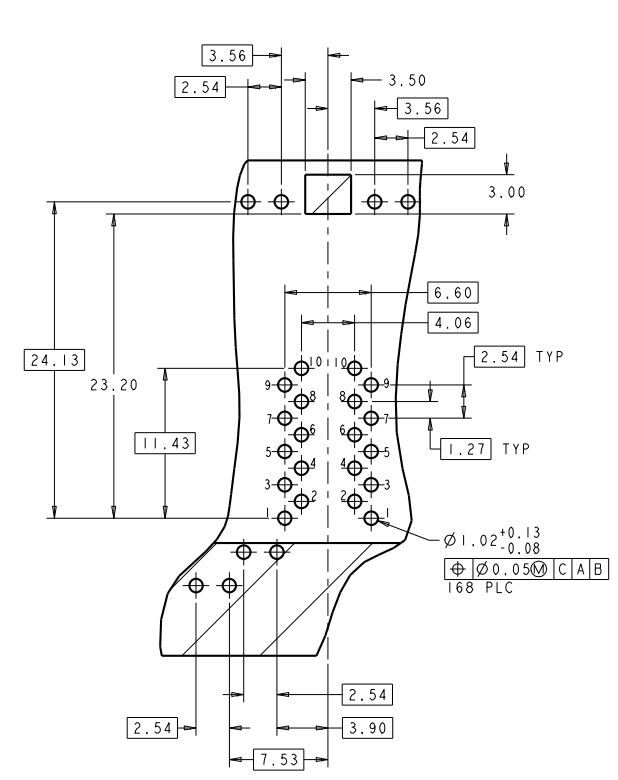

1-1840055-4 Drawing:
