HST-48001S HST-48002S 1000Base-T Transformer SMD 48Pins Magnetics

Price Negotiable

Price: $1.1-$16

MOQ: 50/500/1000/60K

Delivery Time: in Stock Ship Today

Brand: LINK-PP

Product Description

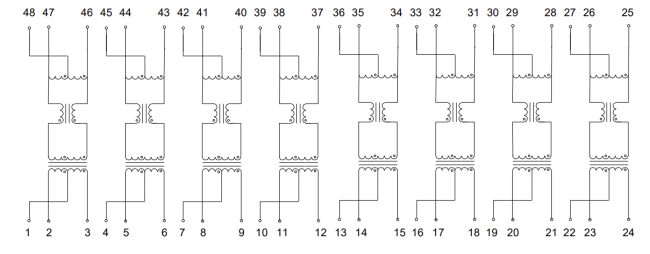

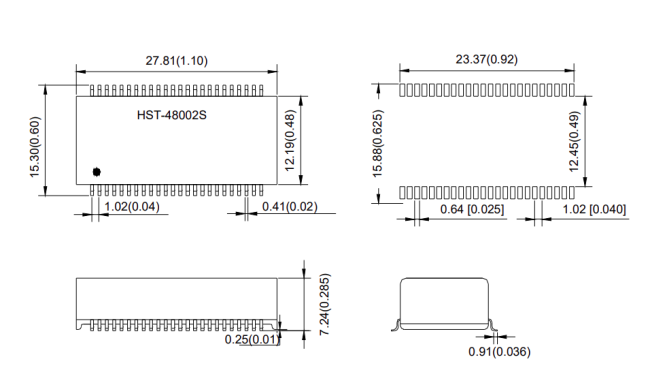

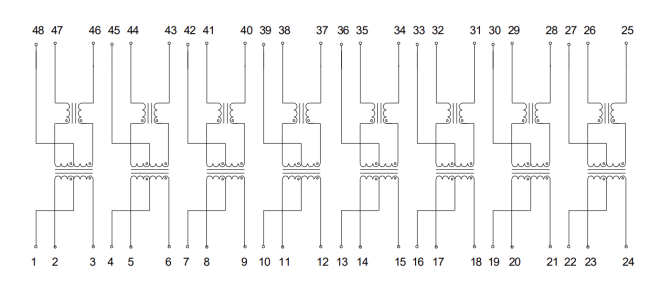

Electrical Specifications @ 25℃ of 1000BASE-T Magnetics Modules:

Part Number	HST - 48001S	HST - 48002S
Insertion Loss	1.0 dB MAX	1.4 dB MAX
Return Loss (@ 100Ω)1 - 30 MHz	-18 dB MIN	-18 dB MIN
Return Loss (@ 100Ω) 40 MHz	-14.4 dB MIN	-14.4 dB MIN
Return Loss (@ 100Ω) 50 MHz	-13.1 dB MIN	-13.1 dB MIN
Return Loss (@ 100Ω) 60 - 80 MHz	-12 dB MIN	-12 dB MIN
Return Loss (@ 100Ω) - 100 MHz	-10 dB MIN	-10 dB MIN
DCMR 30 MHz	-43 dB MIN	-43 dB MIN
DCMR 60 MHz	-37 dB MIN	-37 dB MIN
DCMR 100 MHz	-33 dB MIN	-33 dB MIN
Crosstalk 30 MHz	-45 dB MIN	-45 dB MIN
Crosstalk 60 MHz	-40 dB MIN	-35 dB MIN
Crosstalk 100 MHz	-35 dB MIN	-30 dB MIN
Hipot	1500Vrms MIN	1500Vrms MIN

SMD 48Pins Transformers Key Features:

● Designed to meet IEEE 802.3ab requirements.
● Suitable for non-PoE applications.
● Primary inductance(Lp)350uH min.@100KHz,0.1Vrms,DC 8mA.
● Leakage Inductance (LL) 0.5uH Max (at 100kHz, 0.1V).
● Balance Inductance (BL)1.0uH Max (at 100kHz, 0.1V)
● Designed for reflow soldering at a temperature of 260 °C Max.
● Operating Temperature 0℃ to +70'℃,10%~90%RH.
● RoHS compliance.
