1000BASE-T 7498111124 THR RJ45 Magjack Non-PoE Industrial Grade
Price:
$0.3-$2.8
MOQ:
50/500/1000/25K
Delivery Time:
About 1-2 Days
Brand:
LINK-PP
Product Description
7498111124 RJ45 MagJack Specifications:
The 7498111124 is a WE-RJ45LAN series Through Hole Reflow RJ45 Connector with integrated magnetics, suitable for 1000BASE-T Ethernet applications. This product complies with IEEE 802.3ab standards and is RoHS and REACH compliant.
| Specification | Details |
|---|---|
| Connector Type | THR RJ45 Magnetic Connector |
| Number of Ports | 1 |
| Part Number | 7498111124 |
| Speed | 10/100/1000Base-T |
| Tab | Down |
| PoE | Non |
| Improved CMRR | NO |
| Shielding | Shielded With EMI Fingers |
| Mounting Type |
Through-Hole Reflow |
| LED Indicators | yellow-green LEDs |
| Operating Temperature | -40 °C up to +85 °C |
| Compliance | IEEE 802.3, RoHS |
| Applications | EtherCAT or Profinet, as well as hubs, routers, switches, IP cameras, and IoT applications. |
Material Properties
- Plastic Housing Material: Thermoplastic LCP black
- Plastic Housing Flammability Rating: UL94 V-0
- Shielding Material: Brass
- Shielding Plating: 30µ" Nickel
- Contact Material: Phosphor Bronze
- Contact Plating: 30µ" Gold over 50µ" Nickel

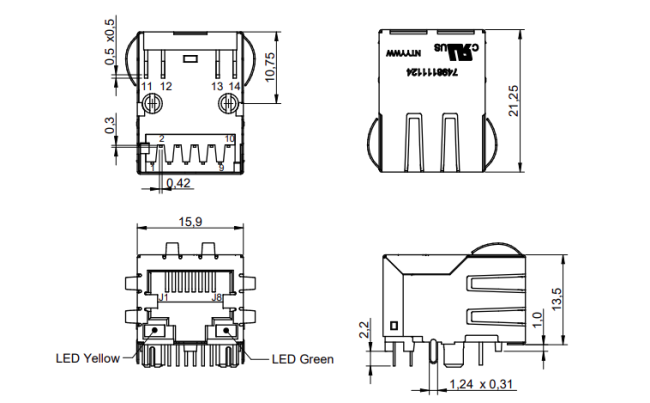

7498111124 Datasheet--Dimensions

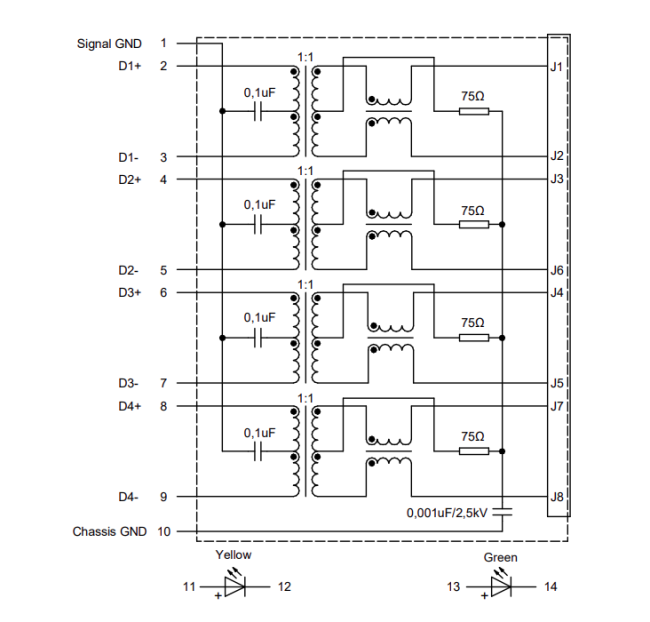

7498111124 Datasheet--Schematic
