1000BASE-T 1-1840863-4 2x8 Ports Gigabit PoE+ RJ45 Connector
Price:
$0.06-$3.2
MOQ:
400/2000/10K/25K
Delivery Time:
3-5 days
Brand:
LINK-PP
Product Description
Overview of 1-1840863-4 Gigabit PoE+ Magjack:
The 1-1840863-4 is a 2x8 stacked RJ45 connector module featuring integrated magnetics, designed to support 1000BASE-T Ethernet applications with PoE+ (30W) capability. This Magjack combines high-performance signal integrity, robust EMI shielding, and compliance with PoE+ power delivery, making it an excellent solution for Gigabit networking equipment, industrial switches, and IP surveillance devices.
Key Features
- Speed Support: 10/100/1000BASE-T (Gigabit Ethernet)
- Port Configuration: 2x8 stacked layout for high-density PCB design
- PoE Rating: IEEE 802.3at PoE+ up to 30W per port
- Integrated Magnetics: Supports auto-MDI/MDIX; symmetrical magnetic design
- Impedance: 100 Ohms, optimized for Ethernet PHY compatibility
- Isolation Voltage: 2250VDC for 60 seconds (rise time 500V/sec)
- EMI Tabs: Yes — improves shielding and reduces radiated emissions
- Mounting Type: Through-hole for wave soldering (peak 260°C, 10s max)
- Operating Temperature: 0°C to +70°C
Mechanical Specifications:
| Items |
1000BASE-T RJ45 PoE module |
|---|---|
| Housing Material | Black thermoplastic, UL 94V-0 flame retardant |
| Shielding | Brass with 0.76μm minimum semi-bright nickel pre-plating |
| Contact Plating | Phosphor bronze base 0.27μm min nickel underplate 2.54μm min SAC (SnAgCu) solder dip or pure tin tails Palladium-nickel at mating interface with 2.54μm matte tin finish |
| LED Construction | Diffused epoxy lens with carbon steel frame |
| RJ45 Cavity | Conforms to FCC Part 68 Subpart F |
| LED Indicators | Dual LED (Green/Yellow) per port |
| Green LED | 565 nm, 2.2V typical @ 20mA |
| Yellow LED | 588 nm, 2.2V typical @ 20mA |
| Operating Temperature | 0°C - +70°C |
| RoHS Compliant | YES |

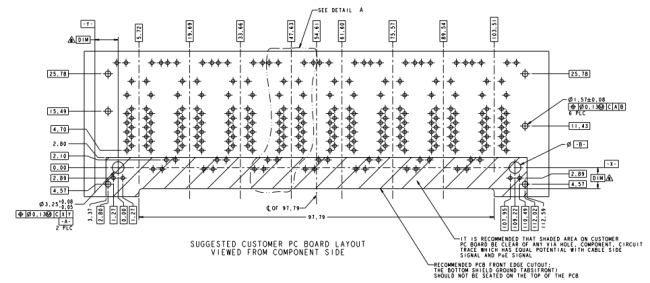

1-1840863-4 Stacked PoE+ Magjack Datasheet
