615008142121 8P8C RJ45 Modular Jack With 2xBipolar Y/G LED
Price:
$0.06-$0.7
MOQ:
100pcs
Delivery Time:
Ship Within 3 Days
Brand:
LINK-PP
Product Description
615008142121 RJ45 Modular Jack Overview
It is an 8P8C (RJ45) shielded modular jack from the WR-MJ series, designed for through-hole (THT) mounting onto a printed circuit board (PCB). It is commonly used for Ethernet connections and other communication applications. 615008142121 connector is designed for general-purpose electronic devices. It includes EMI tabs (also known as EMI Panel Fingers) to enhance electromagnetic interference shielding and ensure signal integrity. The integrated yellow/green LEDs can be used to display network connection status and activity.
Key Features and Specifications:
|
Feature
|
Description
|
|---|---|
|
Part Number
|
615008142121
|
|
Series
|
WR-MJ
|
|
Type
|
8P8C (RJ45, Ethernet) Modular Jack with EMI Tabs and LEDs
|
|
Mounting Type
|
Through-Hole Mount (THT)
|
|
Orientation
|
Horizontal, Right Angle
|
|
Shielding
|
Yes, with EMI ground tabs
|
|

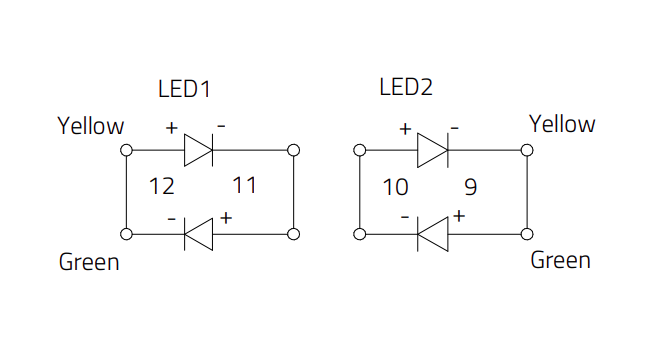

LED Indicators
|
Yes, two Yellow/Green LEDs
|
|
Contact Material
|
Copper Alloy, Selective Gold Plating
|
|
Insulator Material
|
PBT, Black, Flammability Rating UL94 V-0
|
|
Electrical Properties
|
1.5A Current Rating, 120V AC Working Voltage
|
|
Durability
|
500 Mating Cycles
|
|
Operating Temperature
|
-40°C to +85°C
|
|
Compliance
|
RoHS, REACH, and UL Certified
|

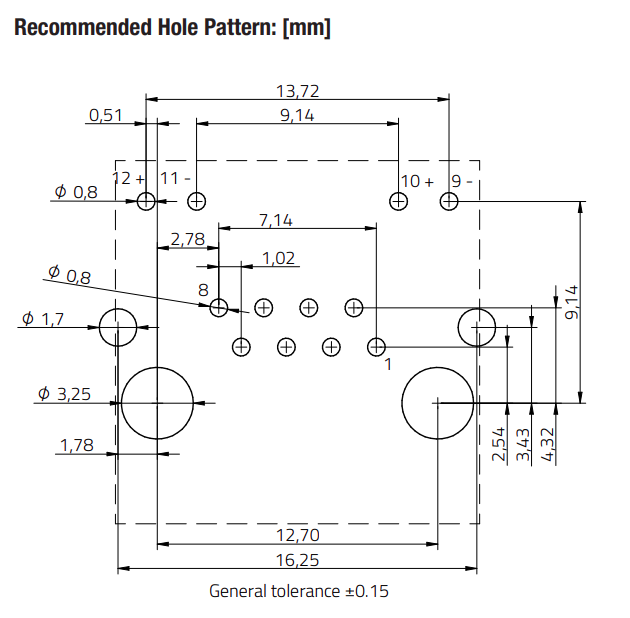

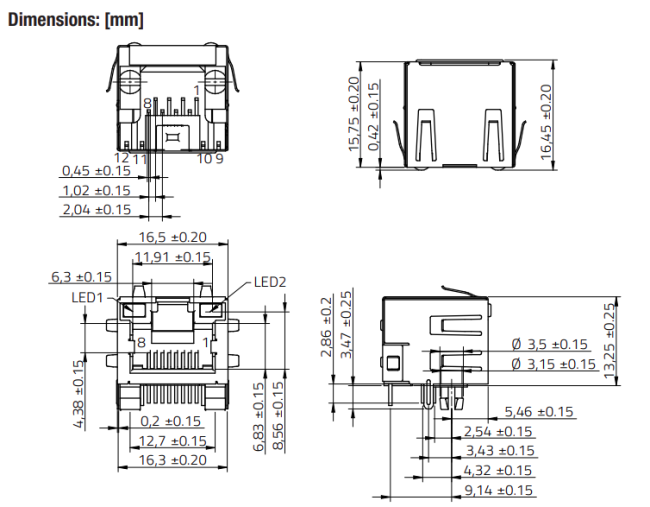

615008141321 Tab UP 8P8C Jack Datasheet:
