Product Description:

Performance Characteristics:

1. Insertion Loss (IL): ≤1 dB (0.5–100 MHz)
2. Return Loss (RL): ≥18 dB (0.5–40 MHz)
3. Crosstalk Attenuation: ≥35 dB (0.5–100 MHz)
4. Common Mode Rejection Ratio (CMRR): ≥30 dB (0.5–100 MHz)
5. Isolation Voltage: 2250 VDC (Max), for 500 V/s, all ports connected

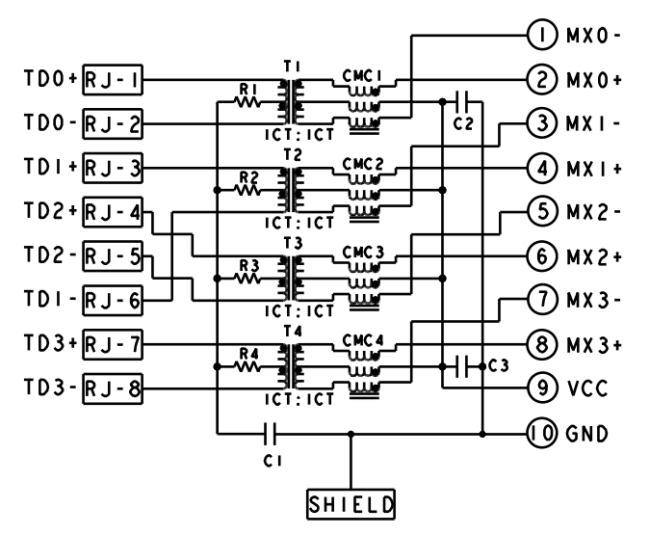

RJ45 2X8 1-1840870-4 Datasheet:

Key Features & Benefits of Stacked RJ45 1-1840870-4:

• Port Configuration: 2x8 stacked layout, optimized for high-density designs.
• Data Rate: Supports 1000BASE-T Gigabit Ethernet with backward compatibility to 10/100BASE-T.
• Magnetics Performance: 100Ω impedance, 350uH OCL minimum, 1:1 turns ratio on all four pairs, ensuring signal integrity and EMI suppression.
• LED Indicators: Dual-color (Green/Yellow) LEDs provide a clear link and activity status for each port.
• Construction:
• Housing: Black thermoplastic, UL 94V-0 rated for flame resistance.
• Shield: Brass, nickel pre-plated with tin solder tails for durability.
• Contacts: Phosphor bronze with gold plating for long-term reliability.
• EMI Tabs: Integrated design enhances electromagnetic compatibility.
• Environmental Specs: Operating temperature range 0°C to +70°C, RoHS compliant, halogen-free.
• Isolation Voltage: Up to 2250VDC for enhanced safety.
