LPJ4284CNL PoE RJ45 Connector with 10/100Base-T Magnetics
The LPJ4284CNL is a high-quality, single-port RJ45 MagJack connector with integrated magnetics designed for 10/100Base-T Ethernet and Power over Ethernet (PoE) applications. It features a robust through-hole side-entry design, shielded housing with EMI tabs, and complies with global standards for reliable network performance.
Key Features of LPJ4284CNL RJ45 MagJack
High-quality LPJ4284CNL RJ45 MagJack Ethernet connector with integrated magnetics and IEEE 802.3af PoE support. Supports 10/100Base-T, side-entry THT mounting, and industrial temperature range — ideal for network equipment and industrial applications.
- Connector Type: Single-port RJ45 8P8C Modular Jack
- Integrated Magnetics: Built-in Ethernet magnetics for signal conditioning and EMI suppression
- PoE Support: Compliant with IEEE 802.3af PoE specifications
- Speed: Supports 10Base-T and 100Base-TX Ethernet
- Mounting: Through-hole (THT), side entry, tab-down orientation
- Shielding: Shielded housing with EMI grounding tabs
- LED Option: Without LED indicators
- Operating Temp: –40°C to +85°C industrial temperature range
- Compliance: UL, RoHS, REACH, ISO19001, ISO14001 standards supported
PoE RJ45 Connector Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | LPJ4284CNL |
| Connector Type | RJ45 8P8C Ethernet MagJack |
| Number of Ports | 1×1 |
| Transmission Speed | 10/100Base-T |
| Integrated Magnetics | Yes |
| PoE Compliance | IEEE 802.3af |
| Mounting Method | Through Hole (THT) |
| Orientation | Side Entry, Tab-Down |
| Shielding | With EMI Tabs |
| LED | None |
| PCB Retention | T-Post |
| Contact Plating | Gold 6μ″ / 15μ″ / 30μ″ |
| Operating Temp | –40°C to +85°C |
| Certifications | UL, RoHS, REACH, ISO19001, ISO14001 |
Mechanical Dimensions
| Item | Specification |
|---|---|
| Height | ~13.30 mm |
| Length | ~21.25 mm |
| Width | ~15.93 mm |
| Net Weight | ~0.007 kg / pc |
| Packaging | 50 pcs / Tray; 1200 pcs / Carton |
| Carton Size | 32 × 30 × 31 cm |
| Gross Weight | ~8.5 kg / Carton |

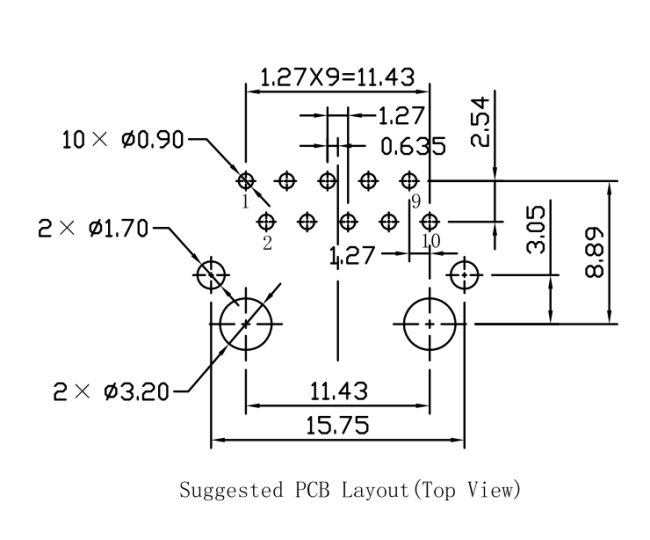

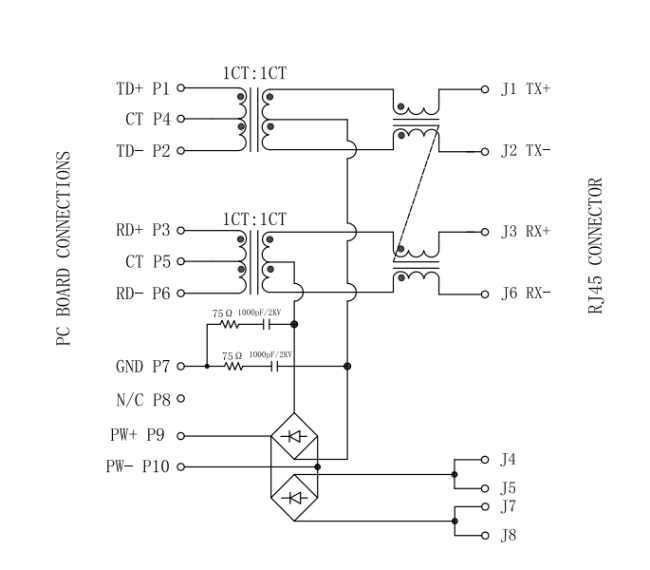

LPJ4284CNL PoE RJ45 Connector Datasheet:
Quality & Testing
Each LPJ4284CNL connector undergoes rigorous quality assurance and testing, including electrical performance verification, signal integrity assessment, PoE current and thermal performance validation, mechanical durability testing, and environmental reliability evaluations.
Performance & Compliance
This RJ45 MagJack delivers high-performance network connectivity and robust operational reliability. It features integrated magnetics to support signal integrity and noise suppression, and its industrial-rated temperature tolerance makes it suitable for a wide range of environments. Compliance with major global safety and environmental standards ensures deployment confidence in commercial and industrial applications.
