G24P02S 10/100/1000 BASE-T SMD-24P LAN Magnetics Module 15.1x7.1mm
G24P02S 1000BASE-T Ethernet Transformer Electrical Specifications @ 25℃
| Parameter | Specification |
|---|---|
| OCL | 350uH Min. @ 100KHz/0.1V with 8mA DC Bias |
| Hi-POT | 1500Vrms |
| Turn Ratio | 1:1 ±3% |
| Leakage Inductance | 0.5uH Max @ 100KHz/0.2V |
| Cw/w | 30pF Max @ 100KHz/0.2V |
| D.C.R | 1.2 ohm Max |
| Insertion Loss | 1–100MHz: -1.0dB Max |
| Cross Talk | 1–100MHz: -30dB Min |
| CMRR | 1–100MHz: -30dB Min |
Return Loss
| Frequency Range | Return Loss |
|---|---|
| 1–30MHz | -18dB Min |
| 40MHz | -14.4dB Min |
| 50MHz | -13.1dB Min |
| 60–80MHz | -12dB Min |
| 80–100MHz | -10dB Min |
Why Choose the G24P02S Magnetics Module?
The G24P02S stands out as a dependable 10/100/1000 BASE-T magnetics module for designers who need a balance of performance, compliance, and compact size. It is especially suitable for Ethernet interfaces where board space is limited but signal quality cannot be compromised.
Key advantages include:
- Supports 10/100/1000M Ethernet
- Single port design for streamlined integration
- 1.5kV hi-pot isolation for electrical safety
- Complies with IEEE 802.3ab
- RoHS-compliant construction
- Stable electrical performance for Gigabit networking
G24P02S Datasheet

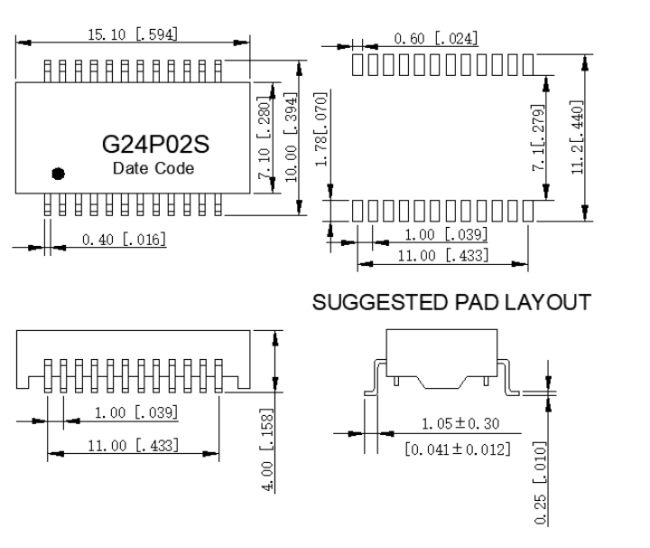

G24P02S Datasheet Mechanical

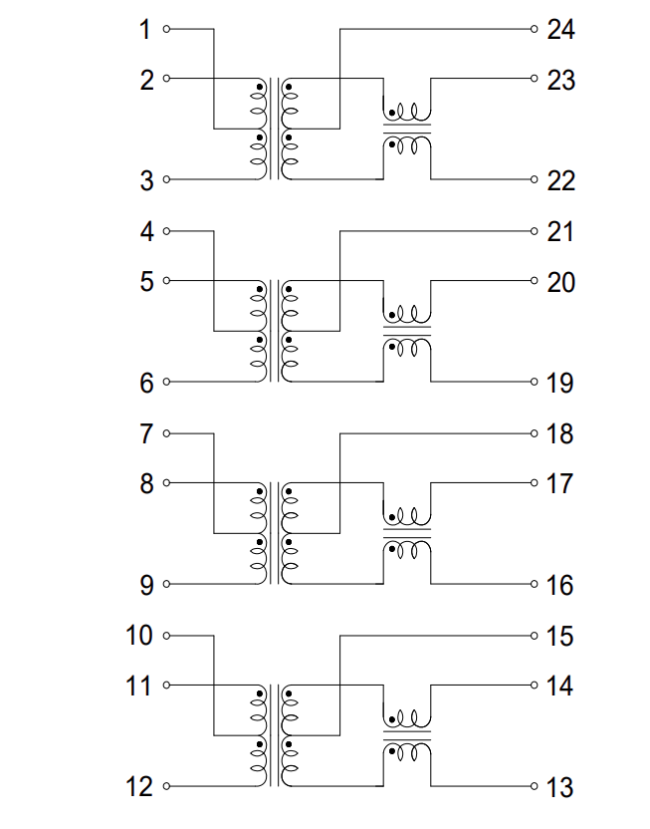

G24P02S Datasheet Schematic
G24P02S SMD LAN Transformer Design and Integration Benefits
Because the G24P02S uses a surface-mount SMD-24P package, it is suitable for compact PCB layouts and high-density electronic assemblies. Its single-port structure simplifies design integration, while the 1:1 turns ratio supports standard Ethernet circuit requirements.
For engineers and procurement teams, this module offers a practical combination of:
- easy PCB mounting
- standard Gigabit Ethernet compatibility
- electrical isolation
- long-term design reliability
Typical Applications
The G24P02S magnetics module is commonly used in:
- Ethernet switches
- Routers
- Network interface cards
- Industrial communication devices
- Set-top boxes
- Embedded networking equipment
- IP-based devices
- Other 10/100/1000 BASE-T networking systems
Frequently Asked Questions About G24P02S LAN Transformer
The G24P02S 10/100/1000 BASE-T Single Port Magnetics Module combines compact design, reliable electrical performance, and standard Gigabit Ethernet compatibility. For OEMs, designers, and sourcing teams searching for a single port Ethernet magnetics module with 1.5kV isolation and IEEE 802.3ab compliance, G24P02S is a strong and practical option.
1. What is the G24P02S used for?
The G24P02S is used in 10/100/1000 BASE-T Ethernet interfaces as a single-port magnetics module for signal isolation and transmission performance.
2. Is G24P02S suitable for Gigabit Ethernet?
Yes. The G24P02S supports 10/100/1000M operation and is compliant with IEEE 802.3ab, making it suitable for Gigabit Ethernet designs.
3. Does the G24P02S support PoE?
No. The G24P02S is a non-POE magnetics module.
4. What is the isolation voltage of G24P02S?
The module provides 1.5kV Vrms isolation voltage.
5. What package does G24P02S use?
It uses an SMD-24P package with a size of 15.1 x 7.1 mm.
