SFP0-3040-L is a 2x1 stacked SFP cage/connector with light pipes, designed for compact front-panel networking hardware that needs dual SFP port density in a single stacked layout. According to the datasheet, it is a shielded, press-fit SFP cage/connector with a 5 GB/s data rate, a -40°C to +85°C operating temperature range, and RoHS compliance. The mechanical drawing also shows a side-entry, stacked configuration with integrated light-pipe ports for visual indication and board integration.

SFP0-3040-L Small Form-factor Pluggable Cage Overview

The SFP0-3040-L is a high-performance, Stacked 2x1 SFP Cage designed to provide maximum port density in space-constrained networking environments. Engineered for reliability and high-speed data integrity, this side-entry cage features integrated Light Pipes for real-time port status indication and a robust Press-Fit mounting style for secure PCB attachment without the need for complex soldering.

Supporting data rates up to 5Gb/s, the SFP0-3040-L is the ideal solution for telecommunications, data centers, and industrial networking applications requiring durable, shielded interconnect systems.

Key Features and Benefits

• High-Density Stacked Design: The 2x1 configuration allows for two SFP ports in a single vertical footprint, optimizing PCB real estate.
• Integrated Light Pipes: Features pre-installed light pipes to provide clear visual signaling for network activity and link status.
• Press-Fit Mounting: Precision-engineered press-fit pins ensure a reliable mechanical and electrical connection, reducing assembly time and costs.
• Superior EMI Shielding: Fully shielded housing prevents electromagnetic interference, ensuring signal integrity in high-frequency environments.
• Industrial Temperature Resilience: Operates reliably in extreme environments ranging from -40°C to +85°C.
• RoHS Compliant: Manufactured with environmentally friendly, lead-free materials in accordance with global standards.

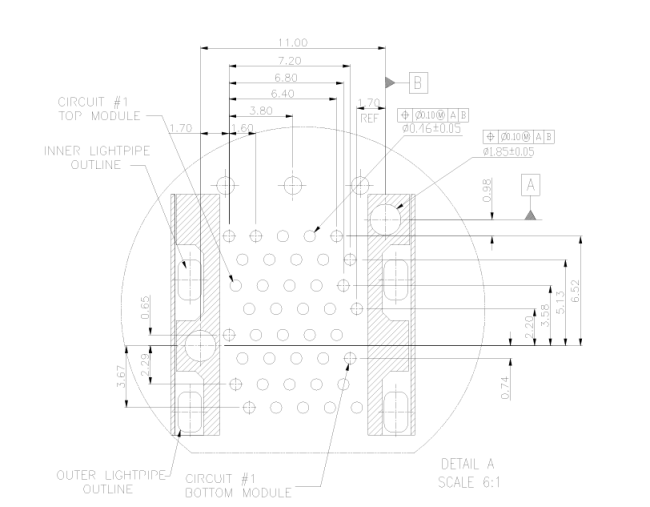

Technical Specifications of 2X1 SFP Cage

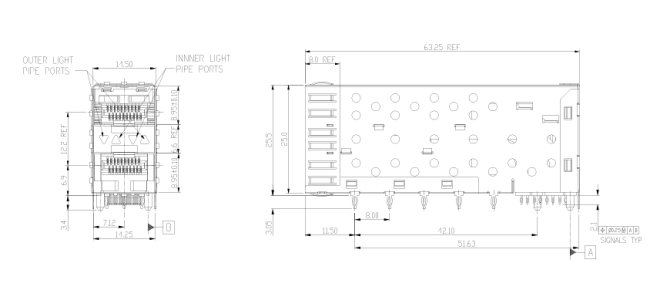

Technical Datasheet of 5GB/S SFP Cage

Applications of SFP Cage with Light Pipes

The SFP0-3040-L Stacked SFP Cage is optimized for high-speed networking equipment, including:

• Enterprise Switches & Routers: Enhancing port density in rack-mounted hardware.
• Storage Area Networks (SAN): High-reliability connections for data storage arrays.
• Telecommunications Infrastructure: Robust performance for cellular base stations and backhaul equipment.
• Industrial Ethernet: Wide temperature range support for harsh factory and outdoor environments.

FAQ About SFP0-3040-L Stacked 2x1 SFP Cage

Q1. What is the SFP0-3040-L?

SFP0-3040-L is a 2x1 stacked SFP cage/connector with light pipes, intended for compact high-density front-panel designs.

Q2. Is the SFP0-3040-L shielded?

Yes. The datasheet lists the product as shielded, which helps support EMI-conscious system designs.

Q3. What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

Q4. What mounting style does it use?

The product uses a press-fit mounting style.

Q5. Is SFP0-3040-L RoHS compliant?

Yes, the datasheet indicates RoHS compliance.
