LPJG4801GENL Gigabit RJ45 Connector With LED Industrial Grade
LPJG4801GENL is a single-port magnetic RJ45 connector with green/yellow LEDs, tab-down latch, EMI tabs, and 10/100/1000 Base-T support for non-PoE Ethernet designs.
Key Features and Advantages of LPJG4801GENL Gigabit RJ45 Connector
- Integrated Magnetics: Reduces PCB space and simplifies design by incorporating transformers and chokes into the housing.
- Gigabit Performance: Fully supports 10/100/1000 Base-T speeds with AutoMDIX capability.
- Industrial Temperature Range: Operates reliably from -40°C to +85°C, making it suitable for harsh environments and outdoor deployments.
- Enhanced EMI Protection: Features integrated EMI tabs to ensure robust grounding and electromagnetic interference suppression.
- Standard Footprint: 1x1 Port, 10P8C configuration with a Latch Down (Tab Down) orientation for secure connectivity.
- High Isolation: 1500Vrms isolation voltage ensures equipment protection and data safety.
Industrial RJ45 Magjack Specifications
| Item | Specification |
|---|---|
| Part Number | LPJG4801GENL |
| Connector Type | Magnetic Jack / RJ45 Female Connector |
| Port Count | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Mounting Type | Through Hole |
| Orientation | 90° Right Angle, Side Entry |
| Latch | Down |
| LED Option | Green/Yellow |
| Shielding | EMI Tabs With Shield Support |
| Temperature Range | -40°C to +85°C |
| Package Size | 21.25 mm × 15.93 mm × 13.30 mm (L × W × H) |
Electrical Specifications of AR11-3827I RJ45 Connector With LED
| Item | Specification |
|---|---|
| Turns Ratio | TX = 1CT:1CT, RX = 1CT:1CT |
| Inductance | 350 µH min @ 100 kHz, 100 mV, 8 mA DC bias |
| Insertion Loss | 1~100 MHz: -1.0 dB max |
| Return Loss | 1~30 MHz: -18 dB min; 30~60 MHz: -16 dB min; 60~80 MHz: -12 dB min; 80~100 MHz: -10 dB min |
| Crosstalk | 1~30 MHz: -40 dB min; 30~60 MHz: -35 dB min; 60~100 MHz: -30 dB min |
| Common Mode Rejection | 1~50 MHz: -40 dB min; 50~150 MHz: -30 dB min |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature | -40°C to +85°C |

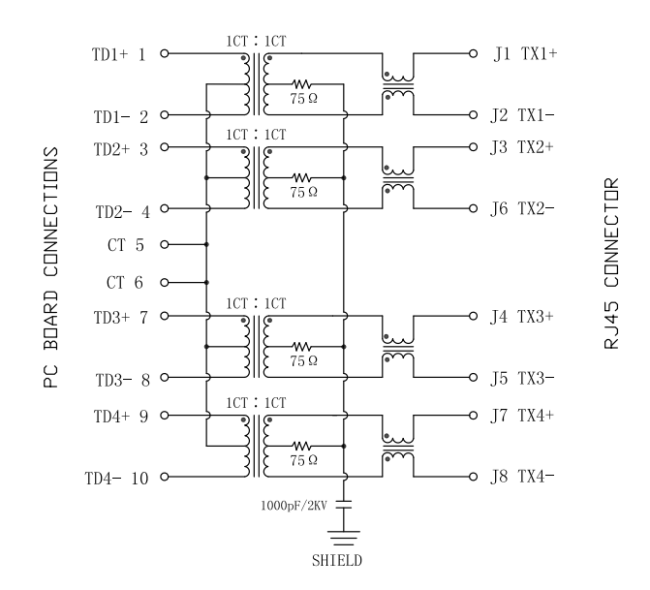

LPJG4801GENL RJ45 Connector Drawing
Applications of RJ45 Magjack
The LPJG4801GENL is specifically designed for high-speed data transmission in various sectors:
- Industrial Automation: PLCs, IoT Gateways, and Industrial Ethernet Switches.
- Telecommunications: Hubs, Routers, and Servers.
- Computing: Embedded Motherboards and Network Interface Cards (NIC).
- Smart Infrastructure: Security IP Cameras and Smart Lighting Controllers.
Compliance & Quality
- RoHS Compliant: Manufactured with lead-free materials.
- Standardized Interface: Fully compliant with IEEE 802.3 standards for 1000 Base-T.
LPJG4801GENL Industrial Magnetic RJ45 Jack FAQs
The LPJG4801GENL is a high-performance, integrated Magnetic RJ45 Jack (MagJack) designed for Gigabit Ethernet applications. Combining superior EMI shielding with industrial-grade durability, this 10/100/1000 Base-T connector is the ideal solution for networking interfaces that require a compact footprint without compromising signal integrity.
With its 90° Right Angle orientation and Side Entry PCB mounting, it is engineered for seamless integration into routers, industrial PCs, and telecommunications equipment.
Q1. What is LPJG4801GENL used for?
It is used as an integrated magnetic RJ45 connector for 10/100/1000 Base-T Ethernet ports in non-PoE network designs.
Q2. Does LPJG4801GENL include LEDs?
Yes. The product is listed with green/yellow LED options.
Q3. Is LPJG4801GENL a through-hole connector?
Yes. LINK-PP lists the mounting type as through hole.
Q4. What temperature range does it support?
It supports -40°C to +85°C.
