LP11ACS2000 1x1 SFP Cage Press-Fit With EMI Fingers RoHS Compliant
LP11ACS2000 is a 1x1 SFP cage with EMI spring finger, copper alloy Ni-plated structure, tray packaging, and wide operating temperature range from -55°C to +85°C.
LP11ACS2000 1x1 SFP Cage Overview
The LP11ACS2000 SFP Cage is a 1x1 SFP cage with EMI spring finger designed for compact high-speed optical networking applications. Its metal housing uses copper alloy with nickel plating to support durability and EMI control, while the integrated spring-finger structure helps improve electromagnetic containment at the port interface. According to the drawing, the part is supplied in tray packaging and is rated for -55°C to +85°C operating temperature.
Key Features
- Superior EMI Shielding: Equipped with high-resiliency EMI Spring Fingers for effective containment and grounding.
- Extreme Temperature Resilience: Rated for operation from -55°C to +85°C, suitable for industrial and outdoor applications.
- Durable Construction: Manufactured from high-grade Copper Alloy with Nickel plating for corrosion resistance and long-term conductivity.
- Standard Footprint: Designed for seamless integration with recommended PCB configurations and bezel designs.
Technical Specifications of Press-Fit SFP Cage
| Item | Specification |
|---|---|
| Product Name | LP11ACS2000 |
| Product Type | SFP Cage |
| Configuration | 1x1 Port |
| Number of Ports | 1 |
| EMI Feature | EMI Springs |
| Material | Copper Alloy, Ni-Plated |
| Packaging | Tray Packaging |
| Operating Temperature | -55°C to +85°C |
| Lightpipe | No |
| Length | 48.75 mm |
| Width | 15.10 mm |
| Height | 9.75 mm |
LP11ACS2000 SFP Cage Drawing

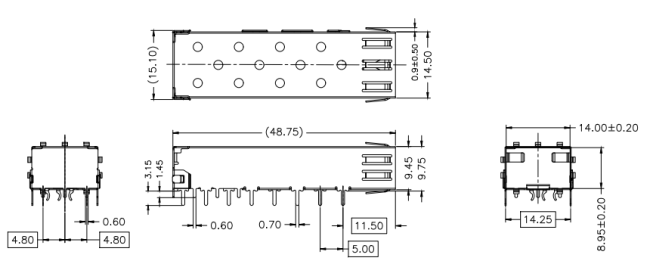

1. LP11ACS2000 SFP Cage Datasheet - MECHANIC

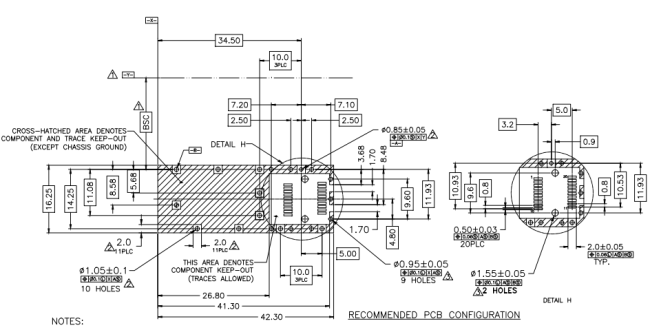

2. LP11ACS2000 SFP Cage Datasheet - RECOMMENDED PCB CONFIGURATION

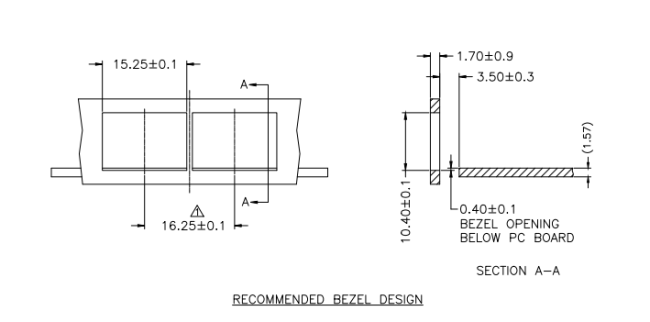

3. LP11ACS2000 SFP Cage Datasheet - RECOMMENDED BEZEL DESIGN
Applications of SFP Cage Connector
The LP11ACS2000 SFP Cage is optimized for high-density networking equipment, including:
- Switches and Routers
- Network Interface Cards (NICs)
- Storage Area Networks (SAN)
- Industrial Ethernet Hubs
- Telecommunication Base Stations
FAQs About Press-Fit SFP Cage
1.What is the LP11ACS2000?
LP11ACS2000 is a 1x1 SFP cage with EMI spring finger designed for single-port SFP module integration.
2. What material is used for LP11ACS2000?
The cage material is listed as copper alloy, Ni-plated.
3. What is the operating temperature range?
The operating temperature range is -55°C to +85°C.
4. Does LP11ACS2000 include a lightpipe?
No. The datasheet lists Included Lightpipe: No.
5. What are the dimensions of LP11ACS2000?
The drawing shows an approximate size of 48.75 mm x 15.10 mm x 9.75 mm.
