LPJD0011DNL Vertical RJ45 Connector With 10/100 Magnetic Top Entry
The LINK-PP LPJD0011DNL is a highly reliable Vertical (180° Top Entry) RJ45 Magjack designed for 10/100Base-T Fast Ethernet applications. By integrating the isolation magnetics and common-mode chokes directly into a vertical housing, this connector minimizes PCB footprint and optimizes cable routing in tight or stacked enclosure designs.
Operating within a 0°C to 70°C commercial temperature range, the LPJD0011DNL is fully compliant with IEEE 802.3 standards. It features a robust Bob Smith termination circuit to suppress EMI and is completely LED-free, making it a cost-effective, space-saving solution for SOHO modems, switches, and LAN-on-Motherboard (LOM) applications.
Technical Specifications of LPJD0011DNL Vertical RJ45 Magjack
1. General & Mechanical Parameters
| Feature | Specification |
| Manufacturer / Brand | LINK-PP |
| Part Number (MPN) | LPJD0011DNL |
| Product Type | Vertical RJ45 Connector with Magnetics (Magjack) |
| Network Speed | 10/100 Base-T (Fast Ethernet) |
| Mounting Angle / Style | 180° Vertical (Top Entry) / Through Hole (THT) |
| Ports & Contacts | 1x1 Port / 8P8C |
| LED Option | Without LED |
| Dimensions (W x L x H) | 16.00 mm x 16.70 mm x 16.90 mm |
| Operating Temperature | 0°C to +70°C |
2. Electrical & Magnetic Characteristics (@ 25°C)
| Parameter | Value |
| Turns Ratio (TX / RX) | 1CT : 1CT / 1CT : 1CT |
| Inductance (OCL) | 350 µH Min. (@ 100KHz, 0.1V, 8mA DC Bias) |
| HiPot (Isolation Voltage) | 1500 Vrms |
| Insertion Loss | -1.0 dB Max (0.3 ~ 100MHz) |
| Return Loss (Min) | -18dB (1~30MHz) | -16dB (40MHz) | -12dB (50MHz) | -10dB (60MHz) |
| Crosstalk & CMR (Min) | -30dB @ 100MHz (Crosstalk) | -20dB @ 100MHz (CMR) |

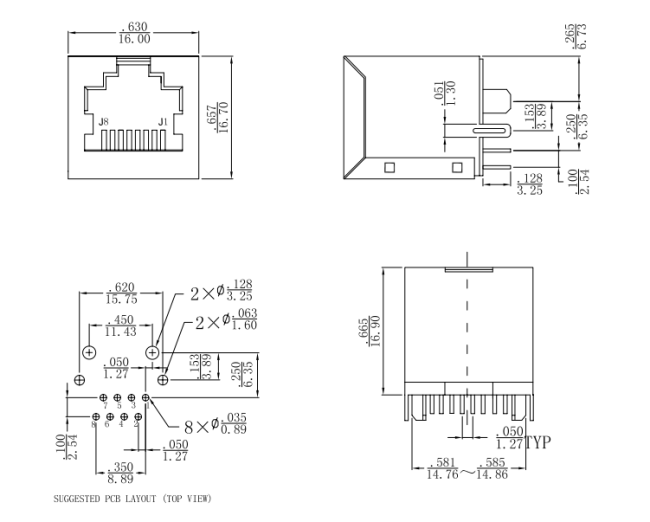

LPJD0011DNL Vertical RJ45 Connector Datsheet - Mechanical / Schematic
Key Features of 10/100Base-T Top Entry RJ45
1. Vertical Space Optimization (180° Top Entry)
Unlike standard right-angle connectors, the 180-degree vertical orientation allows network cables to be plugged in from the top. This is critical for top-down chassis designs, testing equipment, and dense multi-board configurations.
2. Advanced EMI Suppression (Bob Smith Termination)
The internal schematic features integrated isolation transformers alongside a built-in Bob Smith termination circuit. Unused pins and center taps are terminated with 75Ω resistors and share a 1000pF/2KV high-voltage capacitor connected to the shield ground. This significantly reduces electromagnetic interference (EMI) and prevents signal reflection.
3. High-Reliability Manufacturing
- 1500Vrms HiPot Isolation: Protects downstream PHY transceivers from voltage spikes and static discharge.
- Wave Solder Compatible: The UL94V-0 thermoplastic housing withstands wave soldering peak temperatures of 265°C for up to 5 seconds.
- 6µ" Gold Plating: Ensures stable connectivity and corrosion resistance for standard commercial environments.
Applications of 10/100Base-T Vertical RJ45
The LPJD0011DNL is engineered for standard indoor and commercial networking hardware, including:
-
SOHO Equipment: ADSL/VDSL modems, home routers.
-
Networking: Fast Ethernet Hubs and Switches.
-
Computing: LAN-on-Motherboard (LOM) and embedded PC boards.
Frequently Asked Questions
Q: What is the mounting orientation of the LPJD0011DNL?
A: It features a 180-degree vertical (top entry) mounting orientation, meaning the Ethernet cable is inserted perpendicular to the PCB.
Q: Does this RJ45 connector support PoE?
A: No, the LPJD0011DNL is designed for standard LAN Ethernet data transmission (Non-PoE).
Q: What is the operating temperature range?
A: It supports a standard commercial operating temperature range of 0°C to 70°C.
Q: Does it have built-in LEDs?
A: No, this specific model (LPJD0011DNL) is designed without LED indicators to save cost and simplify PCB routing.
Q: What is the recommended soldering profile?
A: For THT wave soldering, the recommended maximum tip temperature is 265°C for a duration of no more than 5 seconds.
