0826-1X1T-43-F Gigabit MagJack 1x1 Tab Up RJ45 ICM 350µH OCL
1. How does the 0826-1X1T-43-F handle EMI and signal cross-talk?
Electromagnetic interference (EMI) is one of the leading causes of EMC certification failures in high-speed Ethernet switches and routers. The 0826-1X1T-43-F utilizes a fully enclosed, nickel-plated copper shield with multiple solder-dipped ground leads that tie directly to the chassis ground. Furthermore, its superior crosstalk suppression (-30 dB min up to 60MHz) and high common-mode rejection ratios isolate internal noise from radiating outside the system.
2. Why is 350µH OCL critical for Gigabit stability?
Maintaining a minimum of 350 µH OCL with an 8mA DC bias ensures that the magnetic core does not saturate when handling DC currents inherent in active data lines. This guarantees signal fidelity, minimizes packet jitter, and protects transceiver physical layers (PHY) from line transients.
0826-1X1T-43-F 1000Base-T Magjack Overview
The Bel Fuse 0826-1X1T-43-F is an industry-standard, high-reliability 1000BASE-T Gigabit MagJack Integrated Connector Module (ICM). Designed for engineers and hardware developers who refuse to compromise on signal integrity and electromagnetic compatibility (EMC), this single-port (1x1), Tab Up through-hole connector integrates precision magnetics directly into the RJ45 housing.
Backed by Bel Fuse's patented technology (US Pat. 7,123,117) and rigorous UL recognition (Files #E196366, #E169987), the 0826-1X1T-43-F ensures seamless data transmission for commercial networking equipment, industrial control systems, and high-speed communication hardware operating from 0°C to +70°C.
Key Features of 0826-1X1T-43-F Magnetic RJ45 Jack
- Optimized Gigabit Performance: Fully compliant with IEEE 802.3 1000BASE-T electrical specifications, ensuring robust data throughput and minimal packet loss.
- Superior Signal Integrity: Features precision-matched 1CT:1CT turns ratios and a minimum 350µH Open Circuit Inductance (OCL) with 8mA DC bias to prevent data corruption.
- Integrated EMI/EMC Shielding: Equipped with robust metal shielding (nickel-plated copper alloy with solder-dipped ground leads) and integrated EMI tabs to effectively suppress radiated emissions.
- Built-in Visual Diagnostics: Integrated Orange/Green (OG/Y) and Yellow LEDs streamline board layout by providing immediate link and activity status.
- High-Durability Contact Design: 50 micro-inch hard gold plating on the mating interface guarantees thousands of insertion cycles and superior corrosion resistance.
Technical Specifications of 0826-1X1T-43-F Integrated Connector Module
| Parameter | Specification Detail |
| Manufacturer | LINK-PP Compatible with Bel Magnetic Solutions |
| Part Number | 0826-1X1T-43-F |
| Port Configuration | 1x1 Single Port, Tab Up, 8 Cores |
| Transmission Speed | 1000BASE-T (Gigabit Ethernet) |
| Mounting Type | Through Hole Mount (Wave Soldering: 260°C max, 10s max) |
| Operating Temperature | 0°C to +70°C (Commercial Grade) |
| PoE Rating | Non-PoE |
| LED Configuration | LED 1: Yellow / LED 2: Green & Orange (OG/Y) |
| Compliance & Safety | RoHS Compliant, UL Recognized (#E196366, #E169987) |
Materials & Mechanical Specifications
- Housing: Thermoplastic PA, Black, UL 94V-0 Flammability Rating
- Contacts: 50 micro-inch minimum hard gold plating over 30 micro-inch nickel underplate
- Output Pins: Tin-coated copper wire, 0.018-inch diameter (100 micro-inch min. matte tin, solder-dipped)
- Packaging Details: Tray packaging 40 pcs/tray, 400 pcs/carton box
Electrical Specifications @25℃
- Turns Ratio (TP1, TP2, TP3, TP4): 1CT : 1CT (±2%)
- Open Circuit Inductance (OCL): 350 µH MIN. (@ 100kHz, 100mVrms, 8mA DC Bias)
- Insertion Loss (MAX):
- 0.1 MHz – 1 MHz: -1.1 dB
- 1 MHz – 65 MHz: -0.5 dB
- 65 MHz – 100 MHz: -0.8 dB
- 100 MHz – 125 MHz: -1.2 dB
- Return Loss (MIN):
- 0.5 MHz – 40 MHz: -18 dB
- 40 MHz – 100 MHz: -12 + 20LOG(f/80MHz) dB
- Crosstalk (MIN):
- 1 MHz – 60 MHz: -30 dB
- 60 MHz – 100 MHz: -25 dB
- Common Mode Rejection:
- CM to CM (100kHz - 100MHz): -30 dB MIN
- CM to DM (100kHz - 100MHz): -35 dB MIN
- HiPot / Isolation Voltage: 1500 Vrms or 2250 VDC (100% factory tested per IEEE 802.3)
- Internal Circuitry: Built-in 4 groups of 75Ω termination resistors and 1000pF/2kV high-voltage decoupling capacitors.
0826-1X1T-43-F RJ45 ICM Datasheet:

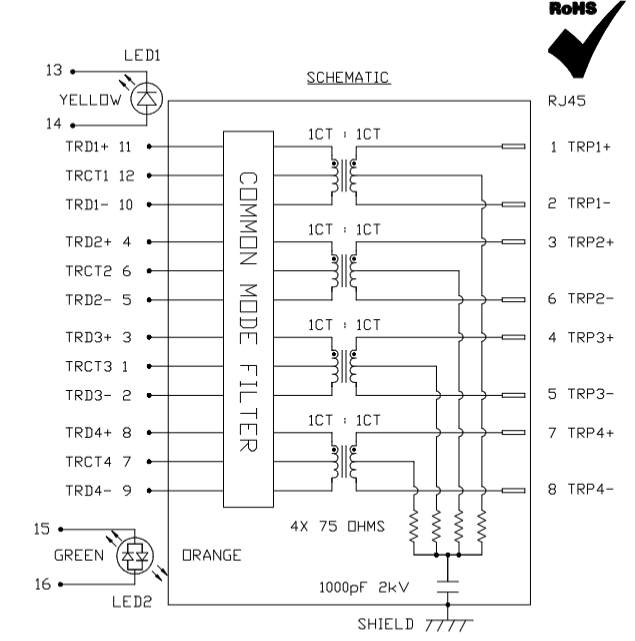

1. 0826-1X1T-43-F RJ45 Datasheet - Schematic

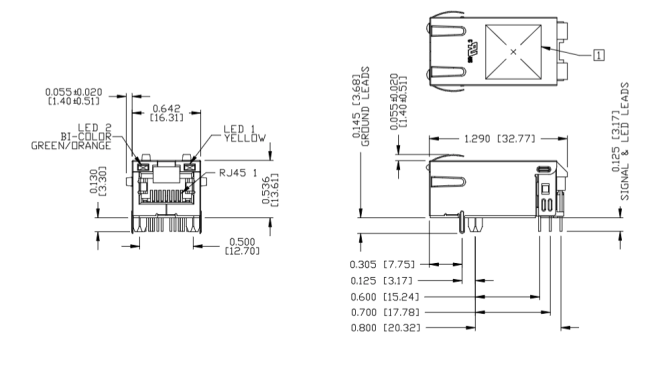

2. 0826-1X1T-43-F RJ45 Connector Dimensions

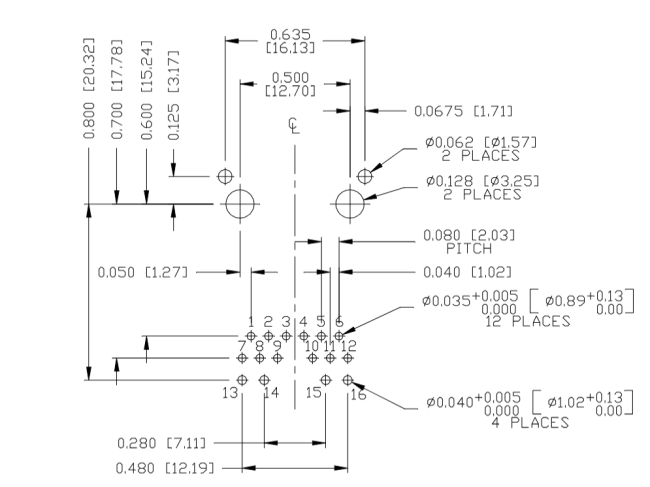

3. 0826-1X1T-43-F RJ45 Datasheet - Recommended PCB Footprint
Frequently Asked Questions:
Q: Is the Bel Fuse 0826-1X1T-43-F compatible with standard reflow soldering processes?
A: No. This is a Through Hole Mount component designed primarily for Wave Soldering. The recommended peak wave-solder temperature is 260°C maximum for a duration of no longer than 10 seconds.
Q: What is the difference between Tab Up and Tab Down configurations?
A: The Tab Up configuration (such as this model) places the latching tab at the top of the connector port. This layout is typically chosen when the PCB layout requires the Ethernet cable latch to release from the top, or to align with specific enclosure port geometries and internal clearance constraints.
Q: Does this MagJack support Power over Ethernet (PoE)?
A: No, the 0826-1X1T-43-F is rated as Non-PoE. If your application requires power delivery over data pairs (such as PoE, PoE+, or PoE++), please explore Bel Fuse's dedicated PoE-rated MagJack series.
