LINK-PP LPJK0071AWNL Gigabit Tab-Up RJ45 Connector with LED

LPJK0071AWNL is a 1×1 non-PoE 1000BASE-T Gigabit RJ45 MagJack with four integrated Ethernet magnetic channels. It uses 1CT:1 ±5% transformers, provides 350µH minimum OCL at 100kHz, 0.1V and 8mA DC bias, 1500Vrms PHY-to-line isolation, dual Green LEDs, Tab-Up THT mounting and 0°C to +70°C operation.

LPJK0071AWNL 1000 Base-T RJ45 Magjack Overview

The LINK-PP LPJK0071AWNL is a high-reliability, single-port (1x1) Gigabit Integrated Connector Module (ICM) engineered for high-speed Ethernet routing, switches, and motherboards. Featuring Tab-Up mechanical retention, premium SUS 304 stainless steel shielding, dual Green status LEDs, and 1500 Vrms dielectric isolation, this part is an exact 1:1 footprint-compatible drop-in replacement for Bel Fuse 0826-1G1T-23-F.

Key Features

• Part Number: LINK-PP LPJK0071AWNL
• Speed & Port: 1000BASE-T Gigabit Ethernet, 1×1 Single-Port MagJack
• Magnetic Architecture: 4-Channel 1CT:1 (±5%), 350 µH OCL @ 8mA DC Bias, 1500 Vrms Isolation
• Port Profile: Tab-Up, Right-Angle Through-Hole Mount (THT)
• Status LEDs: Dual Green / Green (G/G) LEDs
• Shielding: Full metal shield with integrated EMI spring fingers
• PoE Rating: Non-PoE (Pure Gigabit Data)
• Approvals: UL Recognized (File E484635) & RoHS 2011/65/EU Compliant

[ Download Official Drawing ]

[ Request Free R&D Samples ]

Magnetics Electrical Specifications

Mechanical & Materials Specifications

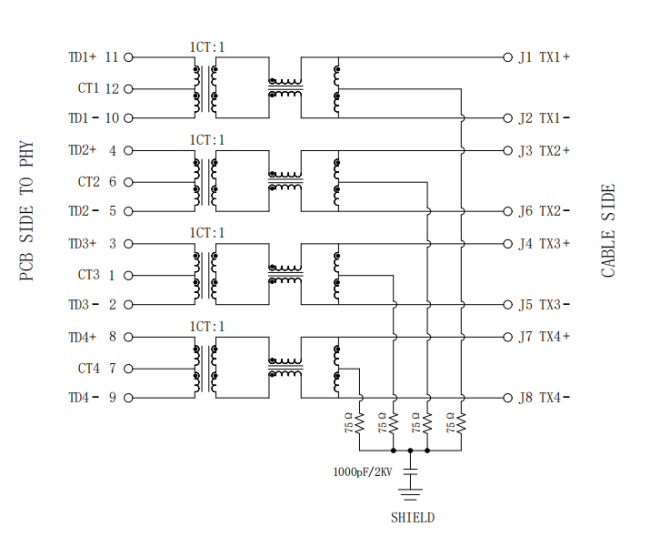

Internal 1000BASE-T Magnetics & Pinout Schematic

[ PHY CHIP SIDE ]                    [ CABLE / RJ45 SIDE ]
    Channel 1: TD1+ (Pin 11) ──┐ 1CT : 1 ┌───[CMC]─── J1 (TX1+)
               CT1  (Pin 12) ──┼───┐   ┌─┤
               TD1- (Pin 10) ──┘   │   │ └───[CMC]─── J2 (TX1-)
                                   │   │
    Channel 2: TD2+ (Pin 4)  ──┐ 1CT : 1 ┌───[CMC]─── J3 (TX2+)
               CT2  (Pin 6)  ──┼───┐   ┌─┤
               TD2- (Pin 5)  ──┘   │   │ └───[CMC]─── J6 (TX2-)
                                   │   │
    Channel 3: TD3+ (Pin 3)  ──┐ 1CT : 1 ┌───[CMC]─── J4 (TX3+)
               CT3  (Pin 1)  ──┼───┐   ┌─┤
               TD3- (Pin 2)  ──┘   │   │ └───[CMC]─── J5 (TX3-)
                                   │   │
    Channel 4: TD4+ (Pin 8)  ──┐ 1CT : 1 ┌───[CMC]─── J7 (TX4+)
               CT4  (Pin 7)  ──┼───┐   ┌─┤
               TD4- (Pin 9)  ──┘   │   │ └───[CMC]─── J8 (TX4-)
                                   ▼   ▼
               [ Bob Smith Termination: 4x 75Ω Resistors + 1000pF/2kV to Shield ]

Engineering Design Notes:

1. Full Duplex 4-Pair Routing: Signals are balanced across four independent 1CT:1 transformers, providing full common-mode noise suppression with ≥30 dB rejection across 1 MHz to 100 MHz.
2. Integrated Bob Smith Circuit: The cable-side center taps tie through four 75 Ω balance resistors into a high-voltage 1000 pF/2 kV capacitor connected directly to the outer shield. This architecture drains ESD and common-mode transients without impacting differential data eye-diagrams.

• SOHO equipment\
• ADSL modems
• LAN-on-Motherboard
• Ethernet hubs
• Ethernet switches
• Routers
• Gateways
• Embedded motherboards
• Industrial PCs within the specified temperature range
• Network firewalls
• Ethernet controllers
• Media devices
• Communication terminals

Technical FAQs

Q1: Is LINK-PP LPJK0071AWNL a direct replacement for Bel Fuse 0826-1G1T-23-F?

Yes. LPJK0071AWNL is an exact pin-to-pin, footprint-compatible drop-in replacement for Bel Fuse 0826-1G1T-23-F. It shares the identical Gigabit 4-pair pin assignment (Pins 1–12), Tab-Up latch orientation, and Dual Green LED polarities (Right: 14+/13-, Left: 16+/15-), requiring zero schematic or PCB layout modifications.

Q2: Does the LPJK0071AWNL connector support PoE?

No. The LPJK0071AWNL is a Non-PoE Gigabit connector engineered strictly for standard Ethernet data transmission. For PoE applications, consider LINK-PP's LPJK1014A8NL (PoE 15.4W) or LPJK6003AONL (PoE+ 30W) series.

Q3: What is the benefit of the SUS 304 Stainless Steel shield on LPJK0071AWNL?

The 0.20 mm thick SUS 304-1/2H Stainless Steel shield provides significantly higher mechanical yield strength, superior spring retention on EMI fingers, and improved resistance to atmospheric oxidation and salt spray compared to conventional brass shells.
