LP1164NLE 40Pins Magnetic Transformers Quad Port 10/100Base-T SMD
Price:
$0.06-$3.2
MOQ:
400/2000/10K/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
LP1164NLE 40Pins Magnetic Transformers Quad Port 10/100Base-T SMD
- Quad Port 10/100Base-T SMD
- 40Pins Magnetic Transformers
- 4x 10/100Base-T Transformer Module
| 10/100 Base -T Quad Port Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | LP1164NLE |
| ETC Part Number | PH406466 |
| Speed | 10/100BASE-T |
| Number of Ports | QUAD |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Number of Ports | QUAD |
| Package Height (Inches) | 0.244 |
| Package Height (mm) | 6.2 |
| Package Length (Inches) | 1.007 |
| Package Length (mm) | 28.58 |
| Package Width (Inches) | 0.63 |
| Package Width (mm) | 16.0 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |

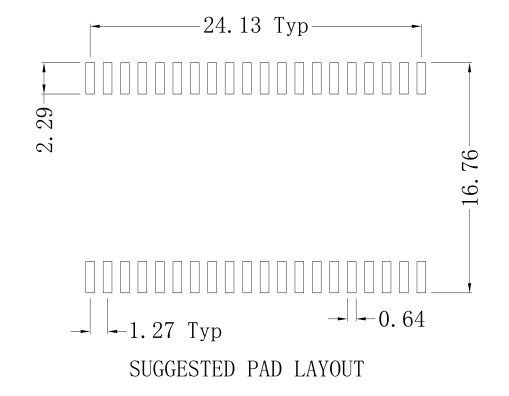

Electrical Specifications @25℃:
1.Insertion Loss:
0.1-100MHz:-1.4dB MAX
3.Return Loss(dB MIN):
2-30MHz:-18; 40MHz:-14.4
50MHz:-13.1; 60-80MHz:-12
4.Crosstalk(dB MIN):
0.1MHz:-55; 30MHz:-45
60MHz:-40; 100MHz:-33
5.DCMR(dB MIN):
1-60MHz:-37; 60-200MHz:-25
6.Hipot: 1500Vrms
7.Operating Temperature: -40℃～+85℃.
LP1164NLE 40Pins Magnetic Transformers Quad Port 10/100Base-T SMD
