0826-1D1T-23-F Magnetic RJ45 Connector LPJK0071AGNL 1000Base-T Female Jack
Price:
Negotiable & Discount
MOQ:
50/500/1000
Delivery Time:
In Stock Ship Within 3 Days
Brand:
LINK-PP
Product Description
0826-1D1T-23-F Gigabit Magjack Electrical Characteristics @ 25°C
| Parameter | Condition | Specification |
|---|---|---|
| Turns Ratio (±2%) | TP1 | 1CT : 1CT |
| TP2 | 1CT : 1CT | |
| TP3 | 1CT : 1CT | |
| TP4 | 1CT : 1CT | |
| OCL (Open Circuit Inductance) | 100 kHz / 100 mVRMS, 8 mA DC Bias | 350 μH MIN |
| Insertion Loss | 0.1 MHz – 1 MHz | -1.1 dB MAX |
| 1 MHz – 65 MHz | -0.5 dB MAX | |
| 65 MHz – 100 MHz | -0.8 dB MAX | |
| 100 MHz – 125 MHz | -1.2 dB MAX | |
| Return Loss (MIN) | 0.5 MHz – 40 MHz | -18 dB |
| 40 MHz – 100 MHz | -12 + 20LOG(f/80 MHz) dB | |
| Common Mode Rejection (CM to CM) | 100 kHz – 100 MHz | -30 dB MIN |
| CM to DM Rejection | 100 kHz – 100 MHz | -35 dB MIN |
| Isolation Voltage | 100% tested per IEEE 802.3 isolation requirements | 1500 Vrms or 2250 VDC |

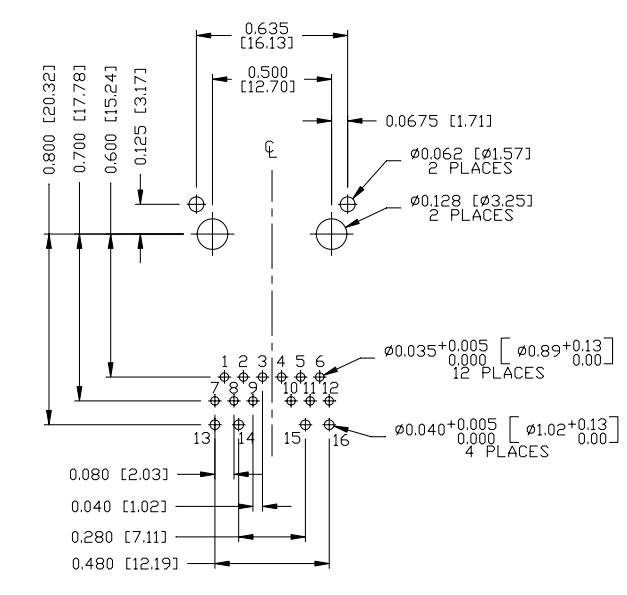

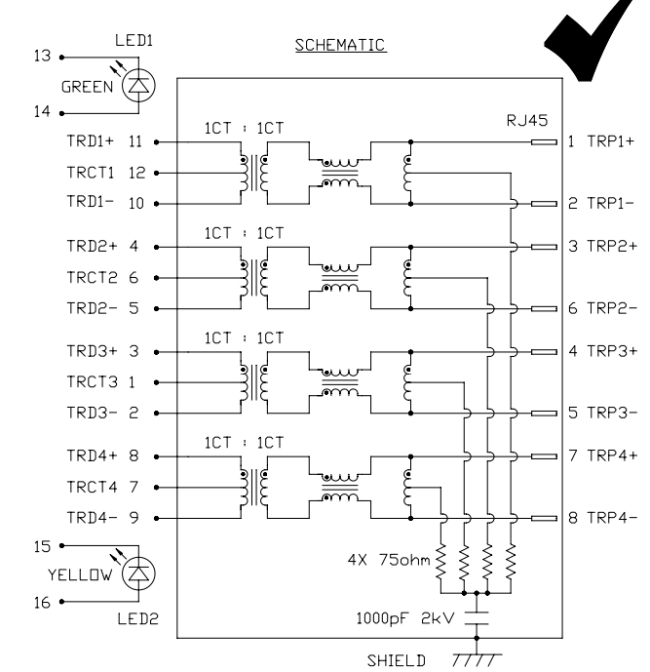

0826-1D1T-23-F Datasheet
LED Characteristics
| LED No. | Condition | Parameter | Typical Value |
|---|---|---|---|
| LED 1 | IF = 20 mA | Forward Voltage (VF) | 2.2 V (Green) |
| IF = 20 mA | Dominant Wavelength (λd) | 565 nm (Green) | |
| LED 2 | IF = 20 mA | Forward Voltage (VF) | 2.1 V (Yellow) |
| IF = 20 mA | Dominant Wavelength (λd) | 590 nm (Yellow) |
