1000Base-T Magjack HR911130A LPJG0806FBNL Gigabit RJ45 Connector

1000Base-T Magjack HR911130A LPJG0806FBNL Gigabit RJ45 Connector

1. 10/100/1000 Base-T LINK-PP LPJG0806FBNL RJ45 Connector with LED

2. 1X1 Tab-down Compatible to Hanrun HR911130A

3. Through hole RJ45 Jack with Magnetics

4. 21.3mm length RJ45 Magjack

5. Meets or Exceeds lEEE802.3ab standards for 1000Base-T

6. Minimize PCB space and Simplify PCB Layout

1X1 RJ45 Magjack with LEDs Description:

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single
  2) EMI Fingers -Top and Sides =  Without
  3) Latch Orientation = Standard - Latch Down

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole

7. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

8. Identification Marking:
  1) Left LED Color = Green - 568nm Wavelength
  2) Right LED Color  = Yellow - 585nm Wavelength

9. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature Range = 0 - 70°C

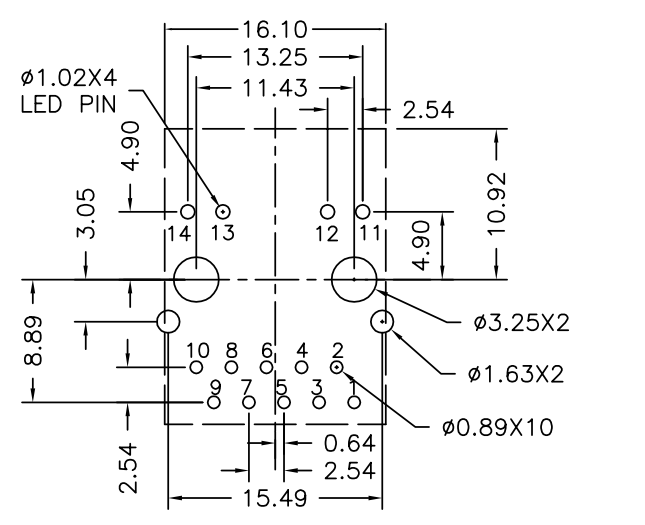

HR911130A Mounting Pattern
