Quick Details
- 203310
- Target Applications – ethernet boards
- Industrial Ethernet Modules and fmc board
- High performance for maximum EMI suppression.
- suitable for 1000 Base-TX CAT5 KVM Switch
- legacy sbc and som modules
- ISO9001,SGS,UL,CE,REACH
Features
-
Certified on all major carrier networks,attractive for network interface cards(NICS)
-
Magnetic Connectors with Tab-Up and Tab-Down with/without LED's and EMI tabs
-
Single port, Multi-port and Stackable configurations (Thru-hole/ SMT)
-
Reduces the number of components to be placed on the IPC boards
-
Frees up board space and offers signal protection
-
Noise reduction in the system
-
Improved reliability and optimal system performance
-
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
-
Helps manufacturers reach their goals of cost reduction
Specifications
|
Characteristics
|
203310 Dual Port Gigabit Magnetic RJ45 Jack For Swiches Cross LPJG26813A31NL |
| 2)SMT,THT and THT with USB | |
| 3)350μH min,OCL with 8mA bias | |
| 4)Complies with IEEE 802.3 | |
|
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) available |
|
| 6)PoE/PoE+ (350mA~720mA) | |
| Operation/Application | ×DSL Modems |
| EMbedded PC | |
| LAN Applications | |
| Hub,Router,Switches | |
| AVR,DVR | |
| Electrical Characteristics | |
| Shielded | with/without |
| Termination Features | |
| EMI Finger | with/without |
| Termination Method |
Solder |
| Body Features | |
| LED | with/without |
| EMI Fingers - Top and Sides | with/without |
| Latch Orientation | Tape UP/Down |
| PCB Tail Length | 3.5±0.5mm |
|
Height Above Board |
Optional |
| Contact Features | |
| Preloaded | YES |
| Contact Termination Type | Through Hole |
| Connector Style | Jack |
|
Cores Number |
8 |
| Industry Standards | |
| Lead Free Solder Process | Wave solder capable to 265°c |
| RoHS/elv Compliance History | Always was RoHS Compliant |
| Conditions for Usage | |
| Applies To | Printed Circuit Board |
| Environmental Conditions | Office / Premises |
| Operating Temperature(°c) | 0°c~70°c / -40°c~+85°c |
| Other Features | |
| Magnetic Circuit | 3D15 |
| Status Indicator | LED |
| Left LED Color | Optional |
| Right LED Color | Optional |
| Decoupling capacitor | with/without |
| Rear PCB Ground Tab | with/without |
| Singal Lead Quantity | 8 |
|

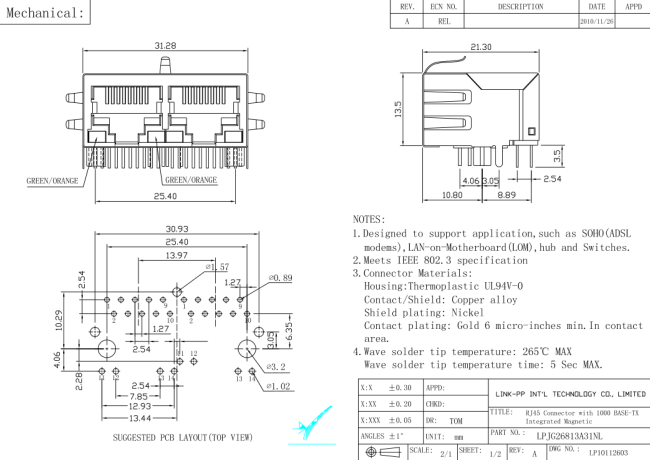

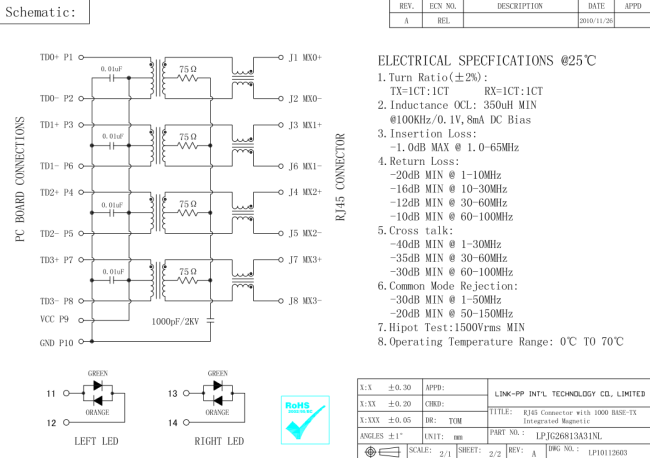

Datasheets |
E-mail Inquiry to Summer@link-PP.com |
| Others Name | Gigabit RJ45 |

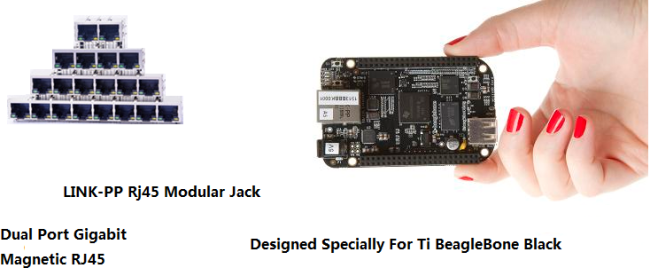

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instrument
http://www.ti.com/tool/beaglebk#0
a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.
LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
203310 Dual Port Gigabit Magnetic RJ45 Jack For Swiches Cross LPJG26813A31NL
203310 Dual Port Gigabit Magnetic RJ45 Jack For Swiches Cross LPJG26813A31NL |
|
| Type PCB Mount | Thru-Hole (THT) Or SMT |
| Number of Ports |
1, 2, 4,6,8 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8 |
| Shield and Unshield | Available in Shield and Unshield |
| Connector Type | RJ45 |
| PoE | Power Over Ethernet Integrated (With Or Without) |
| Magnetics | Magnetic Integrated |
| Magnetics Speed | Magnetics 10/100Mbps and 1000Mbps |
| Packaging | Tray Options |
| Tab Location | Tab Up and Tab Down Options |
| LED Color | Optional |
| Number of Positions | 8 and 10 Positions or Others |
| Number of Contacts | 8 and 10 Contacts or Others |
| RoHS Compliant | Yes |
| Solder Temperature | 230 TO 240 degr.C 5-10 SECONDS |
| Solder High-Temp Option | 260 degr.C 5-10 SECONDS |
| High Temperature Option | -40 to +85 Degrees F |
| Operating Temperature | -0 to 70 Degrees C |
