7498011122 SMT RJ45 Connector With 10/100BASE-T Magnetics
7498011122 (WE-RJ45LAN): 1-port SMT 10/100BASE-T RJ45 jack with integrated LAN transformer, 350µH OCL, Auto-MDIX, −40 to +85°C.
Why Choose 7498011122 RJ45 With Magnetics?
The 7498011122 (WE-RJ45LAN) is a 1-port, surface-mount 10/100BASE-T RJ45 connector with integrated LAN transformer (magnetic + connector). It is Auto-MDIX capable, optimized for SMT/reflow assembly, rated for industrial temperatures, and built with ferrite magnetics and robust shielding for reliable Ethernet links on embedded, industrial and communications boards.
- Integrated magnetics + RJ45 in one SMT package — reduces BOM, board area and assembly complexity.
- Engineered for 10/100BASE-T with PHY-friendly 1:1 turns ratio and high OCL for stable signal integrity.
- Industrial temperature range (-40 °C to +85 °C) and high isolation for reliable field operation.
- Auto-MDIX support reduces cabling errors in deployments.
7498011122 Technical Specifications & Key Features:
|
Part Number |
Manufacturer Part Number |
Manufacturer |
Description |
|
7498011122 (variants: 7498011122AR / 7498011122R, check suffix) |
LPJ19911ADNL |
LINK-PP |
10/100M SMT RJ45 |
|
|
|||
|
Ports |
Operating temperature |
Applications |
Mounting |
|
1X1 |
-40 °C to +85 °C |
10/100BASE-T (IEEE 802.3u), Auto-MDIX capable. |
SMT / Board-edge (right-angle orientation) |
|
|
|||
|
Orientation |
Termination |
LED Color |
Shielding |
|
180° Angle (Right) |
Solder |
Y/G |
Shielded |
|
Key Features
|
|||
Electrical Specifications
(test conditions: HP/Agilent 4395A, 25 °C, humidity ~33%)
| Parameter | Value | Notes / Test conditions |
|---|---|---|
| Open-circuit inductance (OCL) | 350 µH min. | 100 kHz / 100 mV @ 8 mA DC bias. |
| Turns ratio | 1:1 (Tx) / 1:1 (Rx) ±2% | 100 kHz / 100 mV. |
| Insertion Loss (IL) | ≤ −1.0 dB | 1–100 MHz (max). |
| Return Loss (RL) | ≥ −18 dB (1–30 MHz) ≥ −14 dB (30–60 MHz) ≥ −12 dB (60–80 MHz) ≥ −10 dB (80–100 MHz) | Frequency bands per datasheet. |
| Common-Mode Rejection (CMR) | ≥ −40 dB (1–30 MHz) ≥ −37 dB (30–60 MHz) ≥ −35 dB (60–100 MHz) | High CMR helps EMI performance. |
| Crosstalk (CT) | ≤ −35 dB (1–100 MHz) | Typical magjack performance for 10/100BASE-T. |
| Dielectric / Hipot | 2250 VDC / 1 minute (manufacturer test between specified pins) | See datasheet for exact test points. |
7498011122 SMT RJ45 Connectors Drawing:

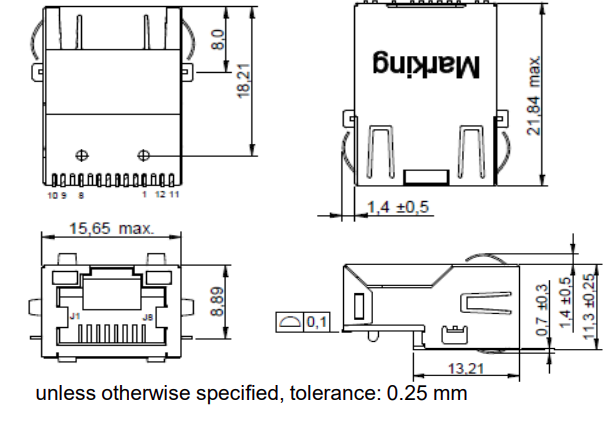

7498011122 Dimensions Drawing

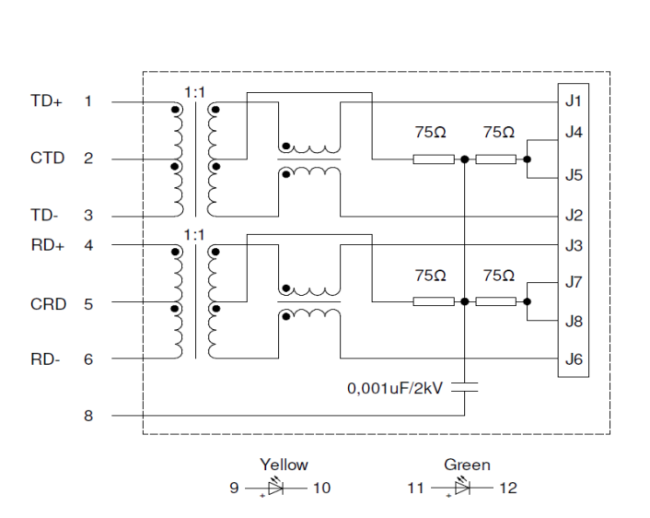

7498011122 Schematics Drawing

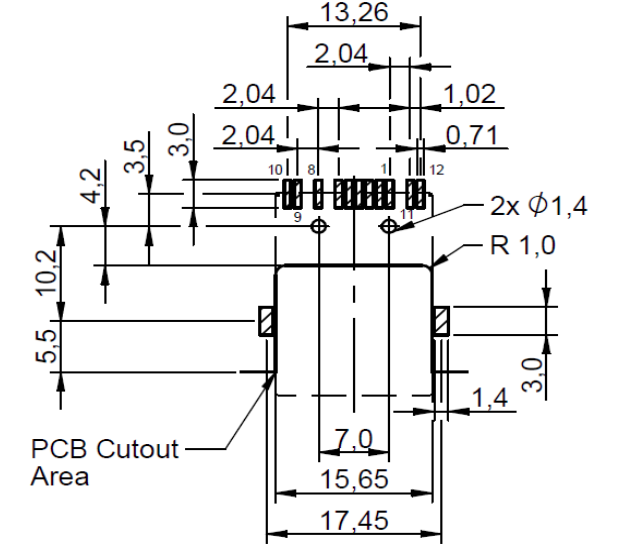

7498011122 Soldering spec.
Materials & Approvals of 7498011122 ICMs:
- Base material: Ferrite magnetic core.
- Wire: high-quality magnet wire per Würth spec.
- Contact plating: 100% tin with nickel underplate; 30 µ" gold plating on contact area (where specified).
- Shield: 50 µ" nickel over ~0.008" copper alloy.
- Housing: Thermoplastic, UL-94V-0 rated.
- Standards: Compliant with IEEE 802.3u for 10/100BASE-T.
