5-6605435-1 Magnetic RJ45 Jack 10 PIN DECOUPLING CAPACITOR LEDs LPJG0820G28NL

Name: 5-6605435-1 Magnetic RJ45 Jack 10 PIN DECOUPLING CAPACITOR LEDs LPJG0820G28NL
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED

Price Negotiable

Price: Supportive

MOQ: 50/500/1000

Delivery Time: Stock

Brand: LINK-PP

Product Description

Competitor Cross Reference

Part Number	Manufacturer Part Number	Manufacturer	Description

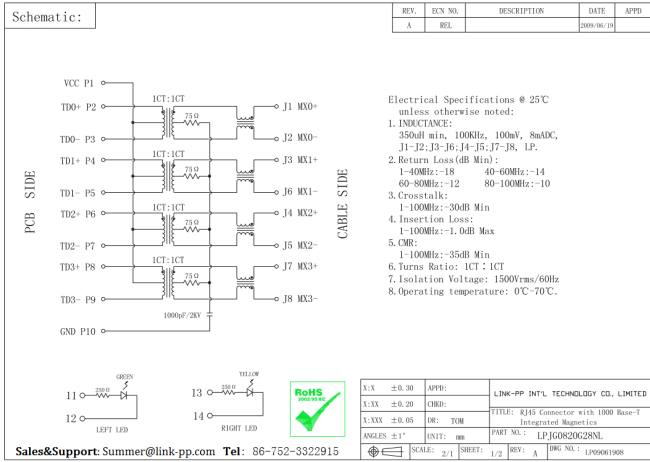

5-6605435-1	LPJG0820G28NL	LINK-PP	1X1 MAG45(TM),MODULAR JACK, SHIELDED,4N2 SCHEMATIC,415 SERIES CIRCUIT,OPTIONAL DECOUPLING CAPACITOR,WITH RESISTOR LEDS

Series	Connector Type	Applications	Mounting Type
Connectors, Interconnects	LINK-PP Rj45	10/100/1000 Mbps	Thru-Hole

Orientation	Termination	LED Color	Shielding
90° Angle (Right)	Solder	G/Y	Shielded ,EMI-Finger
Features RJ-45 connector integrated with Filter Size same as RJ-45 connector to save PCB board space Reduce EMI radiation, Improve EMI performance High performance for maximum EMI suppression. ISO9001,SGS,UL,CE,REACH Embedded mini PCI express Cellular modemfrom SierraWireless Reduce EMI radiation, Improve EMI performance Certified on all major carrier networks,attractive for network interface cards(NICS)Single port, Multi-port and Stackable configurations (Thru-hole/ SMT) Reduces the number of components to be placed on the board Frees up board space and offers signal protection Noise reduction in the system Improved reliability and optimal system performance Benefits of having shorter signal paths and the reliability gains from systems containing fewer components Helps manufacturers reach their goals of cost reduction
