China SI-40138 | LPJ0012GDNL 100Base-T Magnetic RJ45 Jack 8 Position w/LED for sale

SI-40138 | LPJ0012GDNL 100Base-T Magnetic RJ45 Jack 8 Position w/LED

Price Negotiable
Price: Supportive
MOQ: 50/500/1000
Delivery Time: Stock
Brand: LINK-PP
Product Description

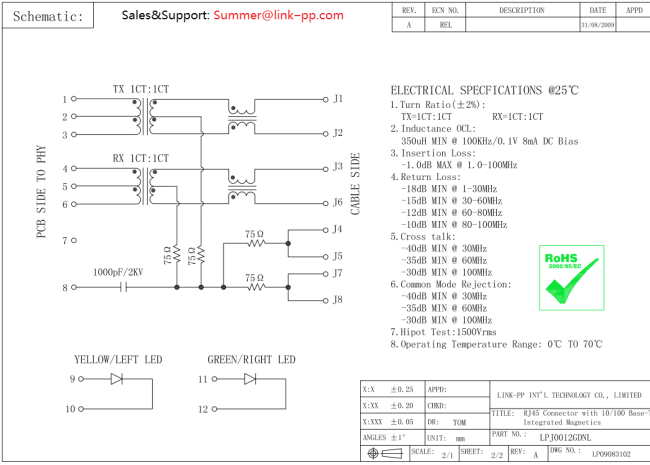

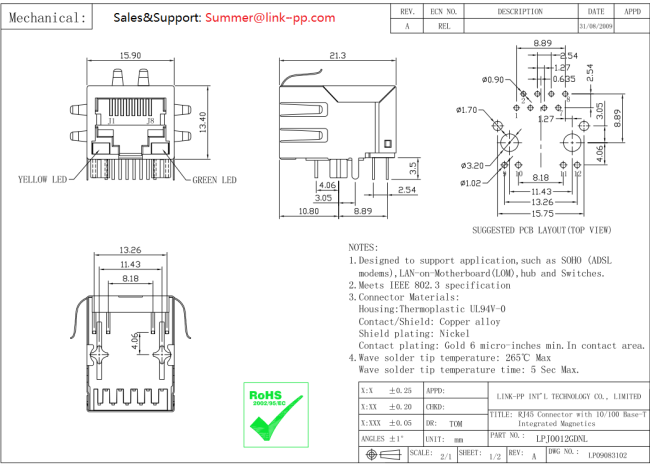

SI-40138 | LPJ0012GDNL 100Base-T Magnetic RJ45 Jack 8 Position w/LED

Specifications
Equivalent
Manufacturer
Description
SI-40138
LPJ0012GDNL
LINK-PP
SI-40138 Magnetic RJ45 Jack LPJ0012GDNL 10 / 100Base-T Single Port With Magnetic
Series
Connector Type
Applications
Mounting Type
Connectors, Interconnects
LINK-PP Female Rj45
10/100
or 1000 Mbps
Thru-Hole(SMT for Single Port)
Orientation
Termination
LED Color
Shielding
90° Angle (Right)
Solder
With Or Without
Shielded,EMI-Finger

  • RJ-45 connector integrated with Filter
  • Size same as RJ-45 connector to save PCB board space
  • Reduce EMI radiation, Improve EMI performance
  • High performance for maximum EMI suppression.
  • ISO9001,SGS,UL,CE,REACH
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • Reduce EMI radiation, Improve EMI performance
  • Certified on all major carrier networks,attractive for network interface cards(NICS)Single port,
  • Multi-port and Stackable configurations (Thru-hole/ SMT)
  • Reduces the number of components to be placed on the board
  • Frees up board space and offers signal protection
  • Noise reduction in the system
  • Improved reliability and optimal system performance
  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
  • Helps manufacturers reach their goals of cost reduction
SI-60085-F
ARJ11G-MBSC-MU2
857913020
85793-1007
SI-60088-F
ARJ11G-MBSD-LU2
857914020
85793-1007
SI-60089-F
ARJ11G-MBSE-MU2
857931001
85793-1007
SI-60090-F
ARJ12A-MASD-A-B-EMU2
857931001
85793-1010
SI-60091-F
ARJ12A-MASD-A-B-FMU2
857931003
85793-1012
SI-60092-F
ARJ12A-MCSD-MU2
857931006
85793-1013
SI-60093-F
ARJ14A-MSA-MU2
857931007
85793-1014
SI-60095-F
ARJ14A-MSB-MU2
857931007
85793-1020
SI-60096-F
ARJ14A-MSC-MU2
857931007
85793-1020
SI-60097-F
ARJ14A-MSD-A-B-ΔMU2
857931010
85793-1020
SI-60098-F
ARJ14A-MSD-MU2
857931012
85793-3006
SI-60101-F
ARJ14A-MBSD-A-B-EMU2
857931013
85793-3007
SI-60102-F
ARJ21A-MCSA-LU2
857931014
95540-2881
SI-60103-F
ARJ21A-MCSB-MU2
857931020
95540-7886
SI-60104-F
ARJ21A-MCSC-MU2
857931020
95622-3882
SI-60105-F
ARJ21A-MCSD-MU2
857931020
95622-3981
SI-60106-F
ARJ21A-MBSD-A-B-EMU2
857933006
438146621
SI-60107-F
ARJ-101D
857933007
432024101
