The J0G-0001NL PulseJack Low Profile 1x1 Tab-Up combines the RJ45 interface and magnetics in a single integrated solution. This helps simplify PCB layout, reduce component count, and support stable signal performance in 1000BASE-T Ethernet environments.

Its tab-up, side EMI tabs horizontal configuration and low-height footprint make it especially suitable for designs that need efficient space use without sacrificing electrical performance. If you are searching for a J0G-0001NL PulseJack Low Profile 1x1 Tab-Up RJ45 connector, this part is built for dependable Gigabit Ethernet connectivity in demanding network hardware.

J0G-0001NL Low-Profile RJ45 Conennctor Specifications

Key Features of J0G-0001NL PulseJack

The J0G-0001NL PulseJack Low Profile 1x1 Tab-Up offers a strong combination of mechanical durability and electrical performance:

• 1000BASE-T Gigabit Ethernet support
• 1x1 single-port RJ45 integrated magnetics
• Shielded design for improved EMI suppression
• Low-profile, small-footprint construction
• Right-angle, through-hole mounting
• Built-in LED indicators
• Compliant with IEEE 802.3 standard
• 350µH minimum OCL with 8mA bias current
• RoHS compliant
• Peak wave solder temperature rating: 260°C

J0G-0001NL Datasheet

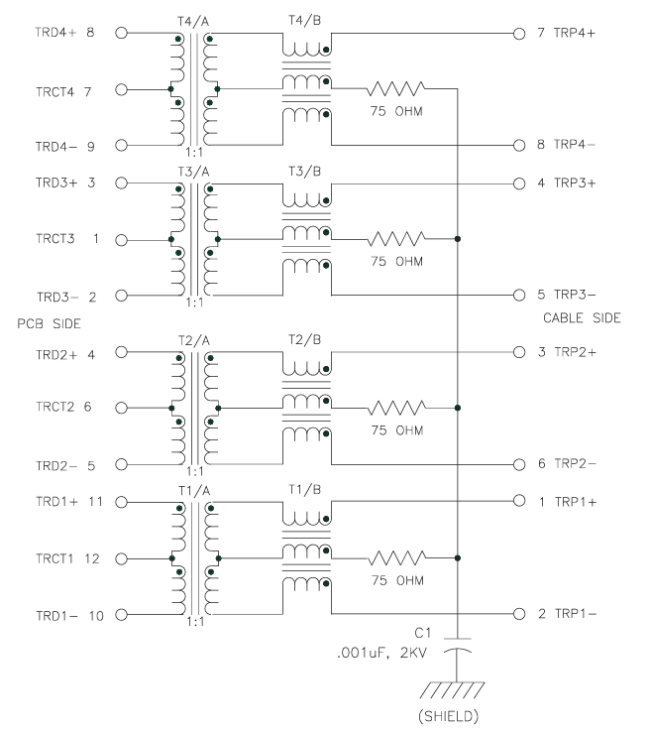

J0G-0001NL Datasheet - SCHEMATIC

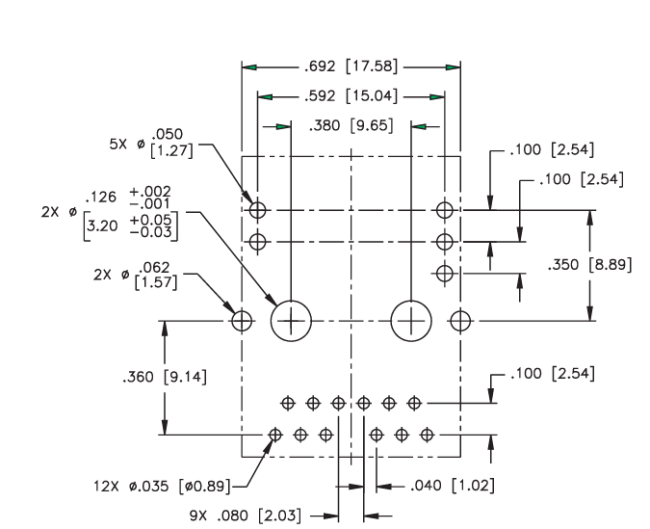

J0G-0001NL Datasheet - SUGGESTED FOOTPRINT

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°

The J0G-0001NL PulseJack Low Profile 1x1 Tab-Up is engineered for stable performance across the Gigabit Ethernet frequency range.

1. Operating Conditions

• Operating temperature: 0°C to +70°C
• Isolation voltage: 2250 VDC
• Turns ratio: 1CT:1CT
• Hipot test voltage: 1500Vrms at 60Hz for 1 minute

2. Performance Data

Insertion Loss (TX/RX): 1–100 MHz: -1.2 dB

Return Loss:

• 1–10 MHz: -18 dB
• 30 MHz: -18 dB
• 60–80 MHz: -12 dB
• 80–100 MHz: -10 dB

Crosstalk:

• 1–10 MHz: -40 dB
• 32–65 MHz: -35 dB
• 65–1000 MHz: -30 dB

Common Mode Rejection: 1–125 MHz: -30 dB

These values make the J0G-0001NL RJ45 MagJack suitable for network designs that require dependable signal integrity and strong noise suppression.

Material Specification of J0G-0001NL 1000BASE-T Low Profile RJ45

The J0G-0001NL PulseJack Low Profile 1x1 Tab-Up uses quality materials to support long-term reliability:

1. Shield

• Material: Brass
• Finish: 20–40µ inches nickel over brass

2. Contacts

• Material: Phosphor bronze
• Plating area: 15µ inches gold over 30–80µ inches nickel
• Solder area: Tin matte finish over nickel

3. Housing

• Material: Thermoplastic
• Flammability rating: UL 94 V-0

4. MSL Rating: 1

Why Choose the J0G-0001NL Low Profile 1x1 PulseJack?

If you need a compact and robust RJ45 connector with integrated magnetics, the J0G-0001NL is a practical choice for modern Ethernet designs. Its advantages include:

• Space-saving low-profile structure
• Reliable Gigabit Ethernet transmission
• Built-in magnetics to simplify PCB design
• Improved EMI performance from the shielded construction
• Suitable for a wide range of networking and computing applications

This makes the J0G-0001NL PulseJack Low Profile 1x1 Tab-Up ideal for engineers looking to improve layout efficiency while maintaining electrical performance.
