JK0654219 Magnetic RJ45 Jack 10 /100/1000 Base-TX RJ45 LPJK0071AWNL

Name: JK0654219 Magnetic RJ45 Jack 10 /100/1000 Base-TX RJ45 LPJK0071AWNL
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED

Price Negotiable

Price: Supportive

MOQ: 50/500/1000

Delivery Time: Stock

Brand: LINK-PP

Product Description

JK0654219 Magnetic RJ45 Jack 10 /100/1000 Base-TX RJ45 LPJK0071AWNL

Spec	Pin to Pin	Manufacturer	Description
JK0654219	LPJK0071AWNL	LINK-PP	1x 10/100/1000Mbps
Series	Connector Type	Applications	Mounting Type
Connectors, Interconnects	LINK-PP Rj45	Gigabit Port Ethe	Thru-Hole

Orientation	Termination	LED Color	Shielding
90° Angle (Right)	Solder	Green/Yellow	Shielded, EMI Finger

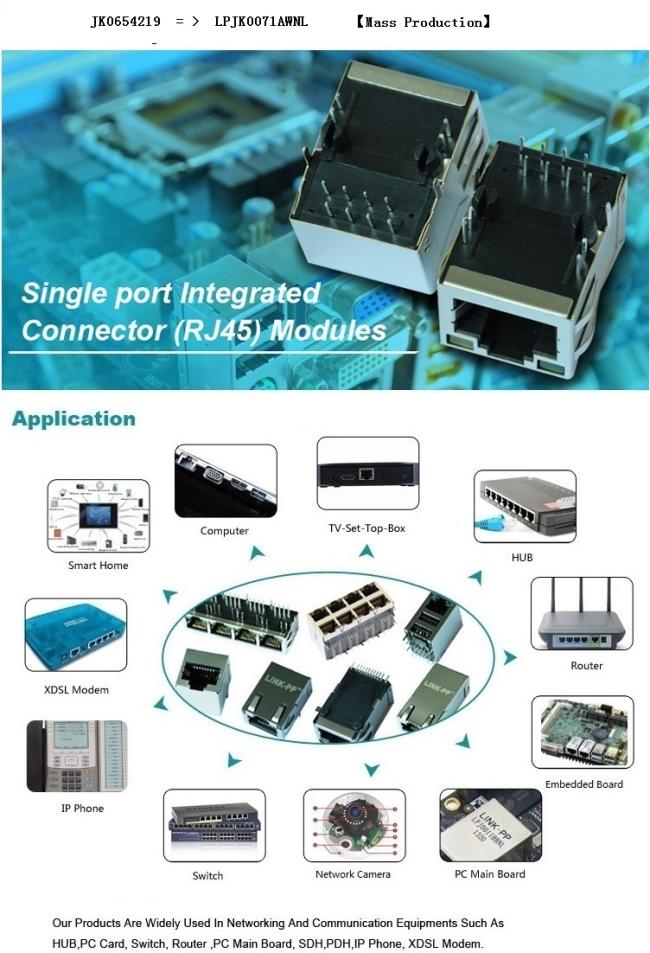

JK0654219 = > LPJK0071AWNL 【Mass Production Model】 10/100/1000 Base-TX RJ45 single port (1X1) Tab-UP with or without LEDs integrated magnetics connector (ICM), designed to support applications, such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC applications. Single port Tab-UP with internal magnetics for 10/100/1000 Base-TX Available with or without LEDs Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP Internal magnetics are 100% electrically tested for HI-POT and functionality Internal magnetics options available Meets or exceeds IEEE 802.3ab standard for 1000Base-T 350 µH minimum OCL with 8 mA bias current High performance for maximum EMI suppression Minimum 1500 Vrms isolation per IEEE 802.3 requirement
