HY911130A Magnetic RJ45 Jack LPJG0806FBNL 10/100/1000Base-T Speed

Name: HY911130A Magnetic RJ45 Jack LPJG0806FBNL 10/100/1000Base-T Speed
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED

Price Negotiable

Price: Supportive

MOQ: 50/500/1000

Delivery Time: Stock

Brand: LINK-PP

Product Description

HY911130A Single Port RJ45 Connector with Integrated Magnetics

Specification	P/N	Manufacturer	Description
HY911130A	LPJG0806FBNL	LINK-PP	1x10/100/1000,R/A,Shield w/led
Series	RoHS Compliant	Applications	Standards
Shielded RJ45 Magjack	YES, Pb Free	10/100/1000Base-T	lEEE802.3ab

Orientation	Termination	LED Color	Shielding
90° Angle (Right)	Solder	Green/Yellow	Shielded

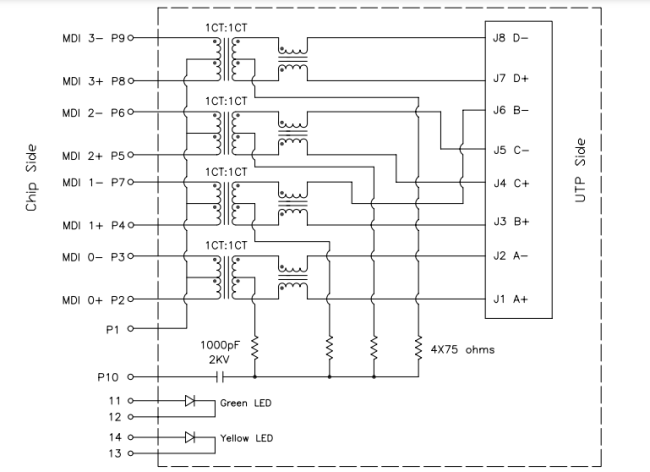

Key Features: LINK-PP LPJG0806FBNL 10/100/1000 Base-T 1X1 RJ45 connector Tab-Down with LEDs and integrated magnetics (ICM), designed to support Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC applications. Compatible with Hanrun HY911130A Magnetic RJ45 Jack. Meets or Exceeds lEEE802.3ab standards for 1000Base-T High performance for EMI suppression, Crosstalk, Return Loss, and Consistent ElectricalMinimum 1500Vrms isolation per lEEE802.3 requirement Minimize PCB space and Simplify PCB Layout Less magnetic components to place on PCB, Higher reliability and yields HY911130A Single Port RJ45 Connector Schematics:
