China XFATM6CB-CLYG1-4MS Magjack Rj45 LPJ4026GDNL With Magnetic 10 / 100Base-T for sale

XFATM6CB-CLYG1-4MS Magjack Rj45 LPJ4026GDNL With Magnetic 10 / 100Base-T

Price Negotiable
Price: Supportive
MOQ: 50/500/1000
Delivery Time: Stock
Brand: LINK-PP
Product Description

XFATM6CB-CLYG1-4MS Magjack Rj45 LPJ4026GDNL With Magnetic 10 / 100Base-T



Competitor Cross Reference





Part Number

Manufacturer

Part Number

 Manufacturer Description

XFATM6CB-CLYG1-4MS

LPJ4026GDNL

 LINK-PP

XFATM6CB-CLYG1-4MS , Magjack Rj45 LPJ4026GDNL With Magnetic 10 / 100Base-T

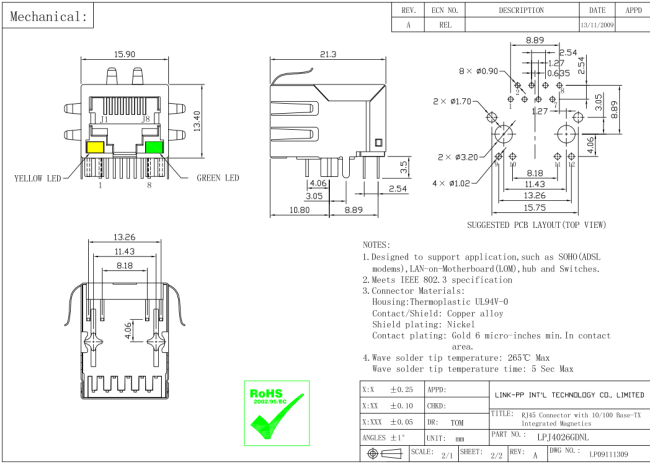

Series Connector Type Applications Mounting Type
Connectors, Interconnects LINK-PP Rj45 Ti BeagleBone Black Thru-Hole

Orientation Termination LED Color Shielding
90° Angle (Right) Solder Y/G Shielded
Features

  • XFATM6CB-CLYG1-4MS=>  LPJ4026GDNL【Mass Production Model】
  • 10/100 Base-TX RJ45 single port (1X1) Tab-down with or without LEDs integrated magnetics connector
    (ICM), designed to support applications, such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM),
    and PC applications.
  • Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP
    Internal magnetics are 100% electrically tested for HI-POT
    and functionality
  • Internal magnetics options available

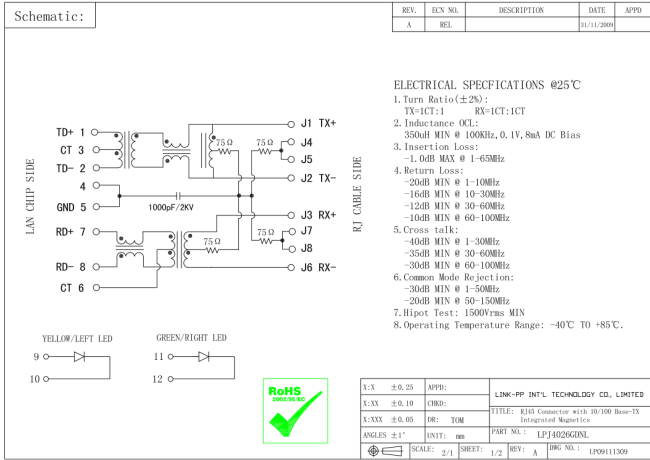

    Meets or exceeds IEEE 802.3ab standard for 100Base-T
    350 µH minimum OCL with 8 mA bias current
    High performance for maximum EMI suppression
    Minimum 1500 Vrms isolation per IEEE 802.3 requirement

Related Part

TG05-1505NURL 43223-8306 XFATM2MB-CTxu1-4M 13F-14
TG05-S001NURL 43223-8307 XFATM2MB-CTYG1-4M 13F-15
TG37-1505NURL 43249-6001 XFATM2PB-CLxu1-4MS 13F-16
TG37-S001NURL 43249-6004 XFATM2S-CAxu1-4MS 13F-15
TG39-1505NURL 43249-6101 XFATM2S-CLGRYR1-4MS 13F-17A
TG83-1505NURL 43249-6104 XFATM2S-CLxu1-4MS 13F-18
TG91-1505NURL 43249-6107 XFATM2S-CLZGY1-4MS 13F-19
TG04-TDK2NSRL 43249-6501 XFATM2SA-CLxu1-4MS 13F-1A
TG04-TDK1N1RL 43249-6504 XFATM2SB-CLxu1-4MS 13F-21
TG05-2004NARL 43249-8001 XFATM2SD-CLGRYR1-4MS 13F-22
TG05-2004NCRL 43249-8004 XFATM2SD-CLxu1-4MS 13F-22A
TG04-4004NARL 43249-8010 XFATM2SD-CLZGY1-4MS 13F-23
TG04-4004NCRL 43249-8101 XFATM2SD-CTxu1-4M 13F-23A
LG01-0346N1LF 43249-8102 XFATM2TVS-CLxu1-2MS 13F-23B
LD01-0166F4LF 43249-8104 XFATM2X-CLxu1-4S XFATM13-STACK16-4
LD01-0366F4LF 43249-8105 XFATM2Y -CLxu1-2MS XFATM13-STACK2-4



Specification







LINK-PP RJ45  Designed for BeagleBone Black of Texas Instruments



LINK-PP

is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.

Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0

You will look at our logo "LINK-PP”on  BeagleBone Board



                                LINK-PP ------ Appointed Supplier And Supporter Of Embedded System for Ti
