74990111215 RJ45 With Integrated Magnetics For Smart Home LPJ0151GDNL
Price:
$0.625↑
MOQ:
50/500/1000
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
Description of 74990111215 RJ45 With Integrated Magnetics:

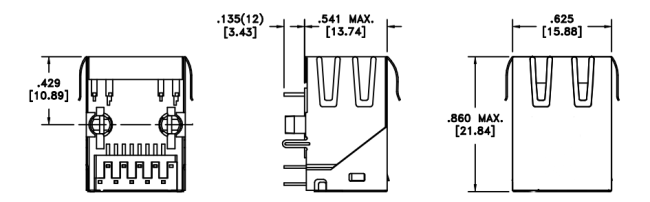

The 74990111215 Through Hole RJ45 Connector is active for 10/100 Base-T and AutoMDIX applications. It has a 1X1 single port configuration and is shielded with an EMI finger for enhanced performance. The RJ45 Connector has a 90° angle orientation, yellow-green LED color, and solder termination. Operating between 0°C and 70°C, it offers reliable connectivity with a gold-plated contact finish thickness of 30.0µin.
74990111215 Electrical Specifications 25℃:

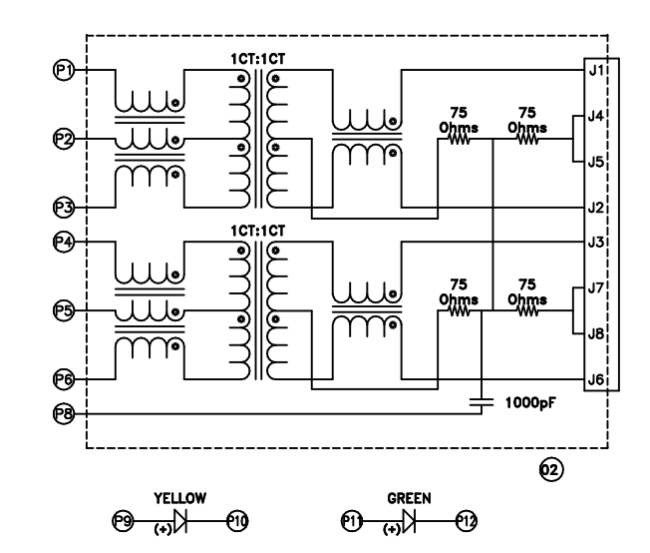

| TURNS RATIO/POLARITY: | (P1-P3):(J1-J2)= 1:1, ±2%. (P4-P6):(J3-J6)= 1:1, ±2%. |
| INDUCTANCE: | 350uH min.,100kHz,100mV,8mADC. |
| DIELECTRIC RATING: | 1500Vrms for 1 minute between P1-J1(tie P3+P4). |
| INSERTION LOSS: | -1.0dB max. @ 1MHz - 100MHz |
| RETURN LOSS: |
-18dB min. @ 1M - 30MHz -16dB min. @ 30M - 45MHz -14dB min. @ 45M - 60MHz -12dB min. @ 60M - 80MHz |
| CROSSTALK: | -35dB min. @ 1MHz - 100MHz |
| COMMON MODE REJECTION: | -35dB min. @ 1MHz - 100MHz -25dB min. @ 100MHz - 500MHz |
| OPERATING TEMPERATURE RANGE: | 0℃ to +70℃ |
|
74990111215 RJ45 Magjack Datasheet:
|
|
