RJLD-260TC1 10/100Base-T RJ45 with Magnetics Cross LPJ4011ABNL MagJack
Price:
$0.05-$1.28
MOQ:
50/500/1000/25K
Delivery Time:
in Stock
Brand:
LINK-PP
Product Description
RJLD-260TC1 is a single-port RJ45 modular jack with integrated magnetics, designed for 10/100Base-T Ethernet applications.
It combines the Ethernet interface and isolation transformer in one compact, shielded housing, simplifying PCB layout and improving EMI performance.
RJLD-260TC1 Electrical Characteristics
RJLD-260TC1 meets IEEE Ethernet requirements and provides reliable signal integrity for LAN interfaces.
- Operating standard: IEEE 802.3 / 802.3u
- Nominal OCL: ≥ 350 µH @ 100 kHz, 0.1 Vrms, 8 mA bias
- Hi-Pot isolation: 1500 Vrms minimum
- Low insertion loss and excellent crosstalk suppression
- Designed for stable performance in noisy industrial environments
Mechanical & Physical Design
- Mounting type: Through-hole
- PCB orientation: Side entry (right angle)
- Connector interface: 8P8C RJ45
- Shielding: Full metal shield
- LEDs: Integrated (typically green & yellow)
- Compact footprint suitable for high-density PCB layouts
RJLD-260TC1 Technical Specifications
Electrical Specifications
| Parameter | Specification |
|---|---|
| Ethernet Speed | 10/100Base-T |
| Ethernet Standard | IEEE 802.3 / 802.3u |
| Integrated Magnetics | Yes |
| OCL | ≥ 350 µH |
| Dielectric Withstanding Voltage | 1500 Vrms |
| LED Indicators |
Yes (Link / Activity) |
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | RJ45 Modular Jack |
| Port Configuration | 1×1 (Single Port) |
| Mounting Style | Through Hole |
| Entry Direction | Side Entry (Right Angle) |
| Latch Orientation | Latch Down |
| Shielding | Shielded |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -55 °C to +125 °C |
| Compliance | RoHS |

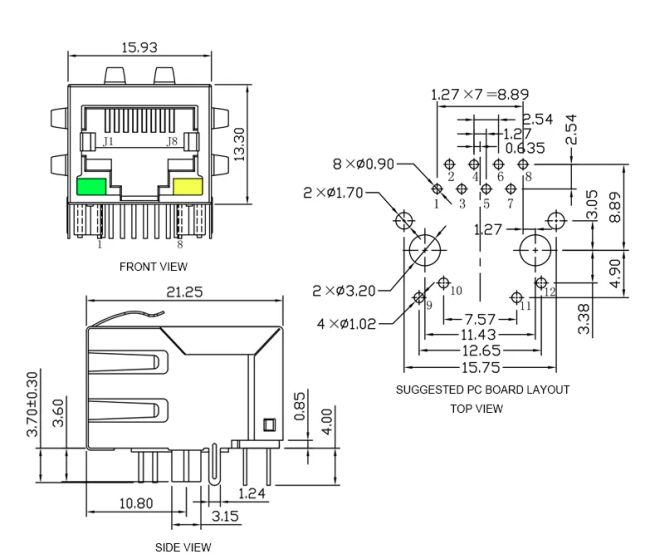

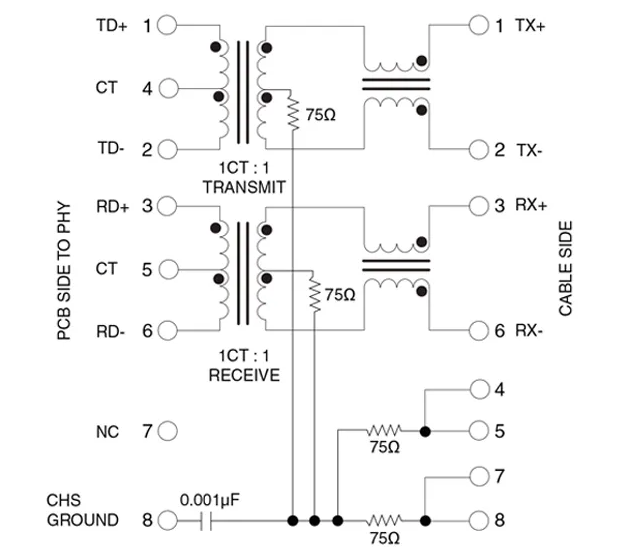

RJLD-260TC1 Datasheet
Why Choose RJLD-260TC1?
- Reduces BOM count with integrated magnetics
- Improves EMI performance with full shielding
- Stable operation in industrial temperature environments
- Ideal for cost-effective 10/100M Ethernet designs
