J0G-0003NL Low Profile RJ45 Jack with 1000Base-T Integrated Magnetics
J0G-0003NL is a single port RJ45 connector for 1000BASE-T applications, featuring a 90° right-angle side-entry design, through-hole mounting, 2250 VDC isolation, and RoHS compliance.
Specifications of J0G-0003NL Low Profile RJ45 Magjack
| Item | Specification |
|---|---|
| Part Number | J0G-0003NL |
| Description | CONN,RJ45,1X1,1GD,1:1,TY NPB |
| Connector Type | RJ45 |
| Port Count | 1x1 |
| Data Rate | 1000BASE-T |
| Mounting Style | Through-Hole |
| Orientation | 90° Right Angle |
| PCB Mount Angle | Side Entry |
| Turns Ratio | 1CT:1CT |
| Isolation Voltage | 2250 VDC |
| Temperature Range | 0°C to +70°C |
| RoHS | Yes |
| LED Option | Yellow & Green / Green |
| Shield EMI Tabs | Without |
| Side EMI Tabs | No |
Why Choose the J0G-0003NL RJ45 Connector?
The J0G-0003NL single port RJ45 connector is a compact, high-performance 1x1 Ethernet connector designed for 1000BASE-T networking applications. With a 90° right-angle orientation, side-entry PCB mount, and through-hole installation, this connector is a practical choice for space-conscious equipment that needs stable Gigabit Ethernet connectivity.
Engineered for reliable signal transmission and robust electrical performance, the J0G-0003NL RJ45 connector is well suited for industrial systems, networking devices, communication equipment, and embedded Ethernet designs. Its 2250 VDC isolation voltage, 1CT:1CT turns ratio, and RoHS-compliant construction make it a dependable option for engineers looking for a single-port RJ45 solution.
Key advantages include:
- Single port 1x1 design for compact Ethernet ports
- 1000BASE-T support for Gigabit networking
- Right-angle, side-entry orientation for space-saving PCB layouts
- Through-hole mounting for secure mechanical stability
- 2250 VDC isolation voltage for enhanced electrical protection
- RoHS compliant for environmentally conscious designs
- Yellow & Green / Green LED option for link/activity indication

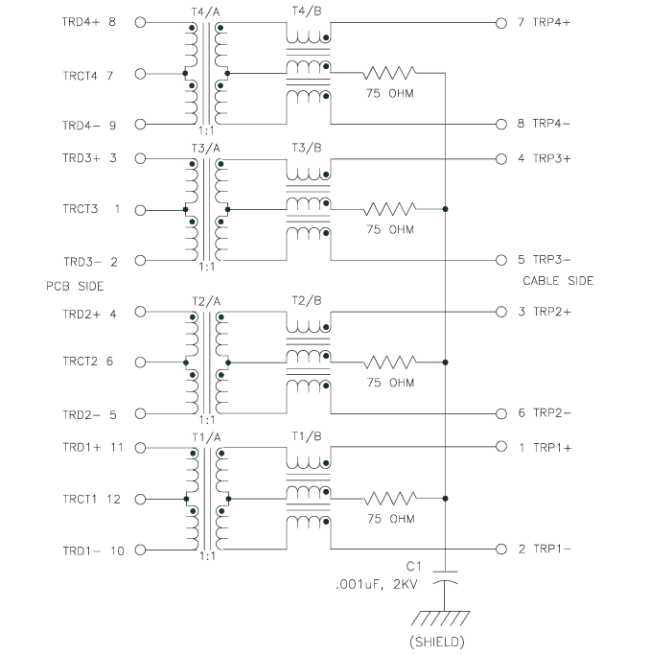

J0G-0003NL Datasheet - Schematics
Electrical Performance J0G-0003NL Low Profile PulseJack
The J0G-0003NL RJ45 connector is designed to support strong signal integrity across the Gigabit Ethernet range. Its electrical characteristics make it suitable for systems that require dependable transmission and controlled performance.
Electrical Specifications @ 25°C Operating Temperature: 0°C to +70°C
| Parameter | Test Range | Typical Performance |
|---|---|---|
| Insertion Loss (TX/RX) | 1–100 MHz | -1.0 dB |
| Return Loss | 1–10 MHz | -18 dB |
| Return Loss | 30 MHz | -18 dB |
| Return Loss | 60–80 MHz | -12 dB |
| Return Loss | 80–100 MHz | -10 dB |
| Crosstalk | 1–10 MHz | -40 dB |
| Crosstalk | 32–65 MHz | -35 dB |
| Crosstalk | 65–1000 MHz | -30 dB |
| Common Mode Rejection | 1–125 MHz | -30 dB |
| Hipot / Dielectric Withstand Test | 60 Hz, 1 minute | 1500 Vrms |
Applications of J0G-0003NL Through-Hole RJ45 Magjack
The J0G-0003NL single port RJ45 connector can be used in a wide range of Ethernet-enabled products, including:
- Network switches
- Routers and gateways
- Industrial control equipment
- Embedded systems
- Communication modules
- Smart devices
- Ethernet interface boards
- Data transmission equipment
J0G-0003NL Frequently Asked Questions
The J0G-0003NL single port RJ45 connector is a strong fit for 1000BASE-T Ethernet designs that need a compact right-angle, side-entry, through-hole solution. With solid electrical performance, reliable mechanical mounting, and RoHS compliance, it is an excellent choice for engineers sourcing a 1x1 RJ45 connector for professional networking and industrial applications.
1. What is the J0G-0003NL used for?
The J0G-0003NL is a single port RJ45 connector used for 1000BASE-T Gigabit Ethernet connections in networking, industrial, and embedded applications.
2. Is the J0G-0003NL a right-angle RJ45 connector?
Yes. It features a 90° right-angle orientation and side-entry PCB mount design.
3. Does the J0G-0003NL support Gigabit Ethernet?
Yes. It is designed for 1000BASE-T applications.
4. What is the isolation voltage of the J0G-0003NL?
The isolation voltage is 2250 VDC.
5. Is the J0G-0003NL RoHS compliant?
Yes, it is RoHS compliant.
