L835-1X1T-S7 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded
Quick Details
Low-Profile 1000 Base-T Shielded
1. RoHS “NL” peak solder rating 260°C
2. Low height and small footprint to minimize board space
3. Meets IEEE 802.3 specification

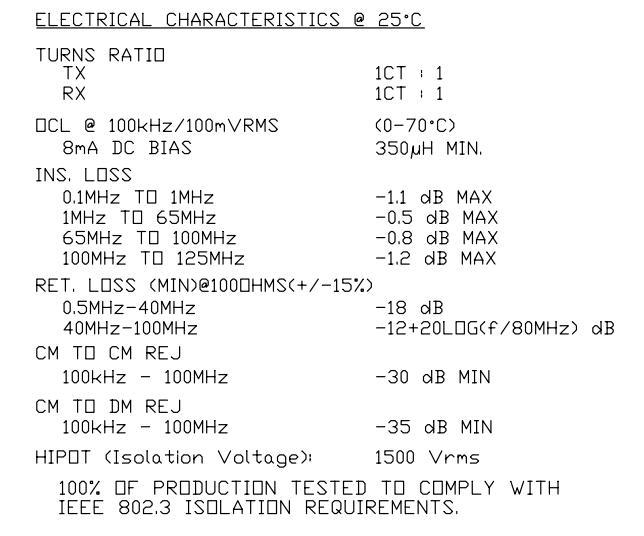

4. 350µH minimum OCL with 8mA bias current
5. High performance for maximum EMI suppression
6. Designing Model: 【L835-1X1T-S7】
7. Mass Production Model:【LPJKXXXXNL】
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
Description
L835-1X1T-S7 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded
| Part Number | L835-1X1T-S7 |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | ORANGE&GREEN/YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| Package Height (mm) | 11.38 |
| Package Length (mm) | 26.06 |
| Package Width (mm) | 16.52 |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
 |
|
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
Other Replacable Parts
| 0811-1X4T-06 | 0833-2X4R-33 | 0826-1X1T-80-F | 0854-2X4R-66 |
| 0811-1XX1-01 | 0863-2X4R-Y4-F | 0826-1X1T-GH-F | 0854-2X4R-66-F |
| 0811-1XX1-02 | 0863-2X5R-54 | 0826-1X1T-JG-F | 0854-2X6R-66 |
| 0811-1XX1-03 | 0863-2X6R-54 | 0826-1X1T-M1-F | 0854-2X6R-66-F |
| 0811-1XX1-12 | 0863-2X6R-54-F | 0826-1X2T-23-F | 0854-2X6R-AH |
| 0811-1XX1-22 | 0863-2X8R-54 | 0826-1X2T-32-F | 0854-2X8R-66 |
| 0811-1XX1-27 | 0863-2X8R-54-F | 0826-1X4T-23 | 0854-2X8R-66-F |
| 0811-1XX4-03 | 0811-2X6R-28 | 0826-1X4T-23-F | 0854-2X8R-AH |
| 0811-22X8R-28-F | 0811-2X6R-28-F | 0826-1X4T-32-F | 0862-1J1T-43 |
| 0811-2X4R-28 | 0811-2X8R-19 | 0826-1X4T-43 | 0862-1J1T-43-F |
| 0811-2X4R-28-F | 0811-2X8R-28 | 0826-1X4T-43-F | 0863-2X4R-54 |
| 0811-2X6R-19 | 0812-1X1T-03 | 0826-1XX1-46 | 0863-2X4R-54-F |
| S811-1X1T-06-F | 08B0-1X4T-06-F | 0826-1D1T-43-F | 08B1-1XX1-03-F |
| S811-1X1T-06-F | 08B0-1G4T-06-F | 0826-1E1T-43-F | 0817-1G1T-21-F |
| S811-1X1T-06-F | L886-1G2T-BF | 0826-1L1T-43-F | 0817-1X1T-21-F |
| S811-1X1T-A4-F | 0810-1X4T-06-F | 0826-1XX1-43-F | 08B0-1C1T-06-F |
| S811-1X1T-A4-F | V811-1X4T-06-F | 0826-1Y1T-43-F | 0817-1AX1-11-F |
| S811-1X1T-A4-F | 0843-2C1T-33-F | V890-1RX1-A1 | 08B0-1X1T-27-F |
| 08B1-1X1T-36-F | 0879-2C1R-54 | 0875-1B1T-P1 | 08B0-1B1T-36-F |
| 08B0-1X1T-06-F | 0813-1X4T-57-F | 0826-1X1T-GJ-F | 08B0-1G1T-36-F |
| 08B0-1G1T-06-F | 08B0-1G4T-36-F | 0821-1G1T-43-F | 08B0-1XX1-03-F |
| 08B0-1D1T-06-F | 08B0-1X4T-03-F | 0821-1D1T-43-F | 08B0-1D1T-03-F |
| 0817-1A1T-11-F | 08B0-1B4T-36-F | 0826-1L1T-23-F | 0826-1AX1-47-F |
| 08B0-1X1T-36-F | 08B0-1D4T-06-F | 0826-1M1T-23-F | S811-1X1T-03-F |
| 0826-1X1T-M1-F | 0813-1X4T-23-F | 0826-1E1T-23-F | V895-1001-AW |
| 08B0-1X1T-03-F | 0826-1B4T-23-F | 0826-1D1T-23-F | L811-1X1T-06-F |
| 08C2-1X1T-03 | 0826-1D4T-23-F | 0826-1B1T-23-F | L811-1X1T-03-F |
| 08C2-1X1T-36 | 0826-1K4T-23-F | 0826-1J1T-23-F | C893-1DX1-E5 |
