LPJ0013AHNL 1x10/100 BaseT,BS-RB10005 Magnetic RJ45 Jack RB1-125BTAGA
Price:
Supportive
MOQ:
50/500/1000
Delivery Time:
Stock
Brand:
LINK-PP
Product Description

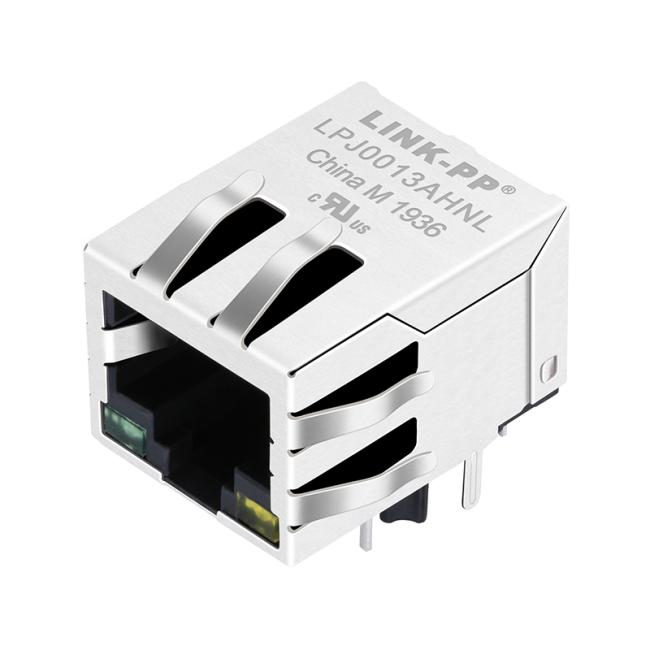

LPJ0013AHNL 1x10/100 BaseT,BS-RB10005 Magnetic RJ45 Jack RB1-125BTAGA
| LPJ0013AHNL |
BS-RB10005
|
RB1-125BTAGA
|
10/100 BaseT
|
- Spc BS-RB10005 Cross Analogue Alternate Equivalent Pin to Pin
- Spec RB1-125BTAGA Cross Analogue Alternate Equivalent
- Description : Integrated RJ45 Connector
- Ports : Single port
- Type : Tab up, with LED,Industrial Temperature
- Ethernet 10/100base-T Connectivity LPJ0013AHNL Compatible
- LPJ4013AHNL Extended Temperature

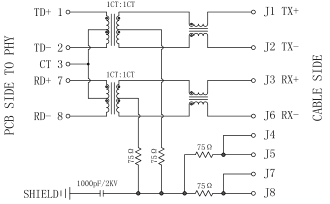

A. Transmitter filter & Receiver filter
Type : Balance low pass 100Ωimpedance
Insertion loss : 1~100 MHz -1.0dB max.
Return loss : 1~30 MHz -18dB min. load 100Ω
30~60MHz -16dB min. load 100Ω
60~80MHz -12dB min. load 100Ω
B. Common Mode Rejection
@ 1~100 MHz -30dB min.
C Cross Talk
@ 1~100 MHz -30dB min.
D .Inductance @ 100KHz, 0.1V, 8mA DC BIAS
Input(R1-R2), Input(R7-R8) : 350 μH min.
E.HiPot Test
Input(R1-R2) To Output(C1-C2) : 1500Vac 60s or 2250Vdc 60s
Input(R7-R8) To Output(C3-C6) : 1500Vac 60s or 2250Vdc 60s
Type : Balance low pass 100Ωimpedance
Insertion loss : 1~100 MHz -1.0dB max.
Return loss : 1~30 MHz -18dB min. load 100Ω
30~60MHz -16dB min. load 100Ω
60~80MHz -12dB min. load 100Ω
B. Common Mode Rejection
@ 1~100 MHz -30dB min.
C Cross Talk
@ 1~100 MHz -30dB min.
D .Inductance @ 100KHz, 0.1V, 8mA DC BIAS
Input(R1-R2), Input(R7-R8) : 350 μH min.
E.HiPot Test
Input(R1-R2) To Output(C1-C2) : 1500Vac 60s or 2250Vdc 60s
Input(R7-R8) To Output(C3-C6) : 1500Vac 60s or 2250Vdc 60s
F.Operating and Storage Temperature
Operating Temperature : -40°C to +85°C
Storage Temperature : -40°C to +85°C
Operating Temperature : -40°C to +85°C
Storage Temperature : -40°C to +85°C
 |
 |
