08B-11X1T-36-F MagJack Shielded RJ45 10/100BASE-T ICMs Tab-Up
08B-11X1T-36-F MagJack — Shielded RJ45 10/100BASE-T connector, 1×1 port, through-hole, tab-up, no LEDs, -40°C to +85°C, RoHS & UL recognized. Ideal for industrial and networking SMT boards.
Product Overview
08B-11X1T-36-F is a single-port shielded RJ45 connector with integrated Ethernet magnetics, designed for 10/100BASE-T applications.
This through-hole, right-angle (90°) RJ45 connector features tab-up orientation, no LED indicators, and industrial-grade operating temperature from -40°C to +85°C, making it ideal for rugged networking and embedded Ethernet designs.
The connector integrates high-performance magnetics compliant with IEEE 802.3 isolation requirements, providing excellent signal integrity, EMI suppression, and system reliability while reducing external component count.
Key Features & Benefits
- Integrated magnetics (TX/RX 1CT:1) — simplifies PCB routing and reduces BOM cost versus discrete transformers.
- Shielded (EMI finger) & metal housing — improves EMI performance and ground continuity in noisy environments.
- Board guide & through-hole pins — robust mechanical support for wave-solder and high-reliability assemblies.
- Industrial temperature range (−40°C to +85°C) — suitable for industrial networking and outdoor enclosures.
- High isolation (HIPOT 1500 Vrms) — meets IEEE 802.3 isolation requirements for safe Ethernet designs.
- Wave-solder recommended — peak 260°C max, 10 s max — designed for standard wave solder processes.
- RoHS compliant & UL recognized — supports regulatory and procurement requirements (File #E196366 and E169987).
Mechanical Specifications
| Parameter | Value |
|---|---|
| Connector Type | RJ45 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Port Configuration | Tab Up |
| Orientation | Right Angle (90°) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Height Above PCB | 0.531" (13.49 mm) |
| Shielding | Shielded, EMI Finger |
| Number of Cores per Jack | 4 |
| LED | Does Not Contain LED |
| Board Guide | Yes |

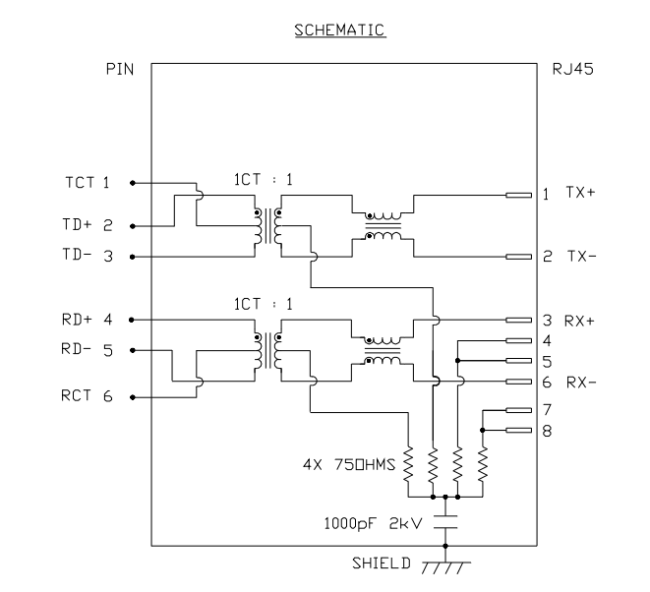

08B-11X1T-36-F Datasheet:
08B-11X1T-36-F ICMs Electrical Characteristics @ 25°C
| Parameter | Specification |
|---|---|
| Turns ratio (TX / RX) | 1CT : 1 |
| DCL @ 100 kHz / 100 mV RMS (8 mA DC bias) | 350 µH min. |
| Insertion loss (1 MHz – 100 MHz) | −1.0 dB max |
| Return loss (1–30 MHz) | ≥ −18 dB |
| Return loss (30–60 MHz) | ≥ −18 + 20·log(F/30MHz) dB |
| Return loss (60–80 MHz) | ≥ −12 dB |
| Cross talk (TX–RX, 500 kHz–100 MHz) | ≥ −35 dB |
| CM to CM rejection (100 kHz–100 MHz) | ≥ −30 dB |
| CM to DM rejection (100 kHz–100 MHz) | ≥ −40 dB |
| Hipot (isolation) | 1500 Vrms |
| Tested to | IEEE 802.3 isolation requirements (100% production tested) |
All units are 100% tested in production to comply with IEEE 802.3 isolation requirements.
Materials & Plating Specifications
1. Housing: Thermoplastic PBT, Black
- Flammability Rating: UL 94V-0
2. Contacts: Copper Alloy
- Contact Finish: 15 µin (0.38 µm) Hard Gold
- Underplate: 30 µin Min. Nickel
3. Pins: Tin-Coated Copper Wire
- Diameter: 0.018 inch
- Finish: 100 µin Min. Matte Tin
- Pins are solder dipped
4. Shield: Pre-plated Nickel on Copper Alloy
- All ground leads solder dipped
Compliance, Testing & Reliability
- RoHS compliant — suitable for lead-free manufacturing.
- UL Recognized — File #E196366 and E169987.
- Jack cavity conforms to FCC rules and regulations (EMI containment).
- 100% production HIPOT tested to meet IEEE 802.3 isolation requirements.
- Suggested assembly process: wave soldering compatible; recommended peak 260°C, 10 s max (verify with your process window and flux selection).
Assembly & Soldering Recommendations of THT RJ45 Magjacks
- Recommended soldering: Wave soldering (through-hole). Use suggested peak 260°C and ≤10 s dwell as general guidance; validate with your board stackup and components.
- Pre-solder inspection: Ensure soldermask-defined openings align with pins and EMI tabs; allow thermal reliefs for ground tabs if required.
- Board layout tips: Provide sufficient copper on ground pads for EMI tabs, and place mounting holes or stiffeners if board will undergo mechanical stress. Keep magnetics area clear of high-speed digital traces to avoid crosstalk coupling.
- Cleaning: Use flux and cleaning agents compatible with PBT and plating finishes. Avoid aggressive chemistries that may attack housing or plating.
