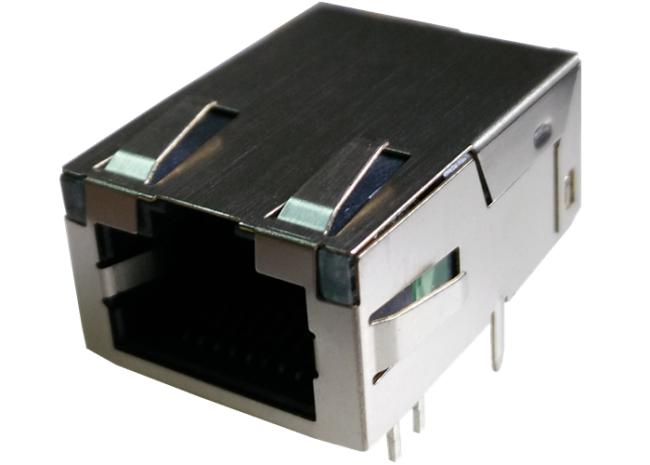

1368398-8 TE Low Profile Rj45 PCB Gigabit Tab-up 10/100/1000 Magnetics

1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN Or More

Ethernet Applications





1368398-8 Low-Profile RJ45

18 years production experience,
2600 staff,
100% test
Flexible delivery time

Famous Customer
