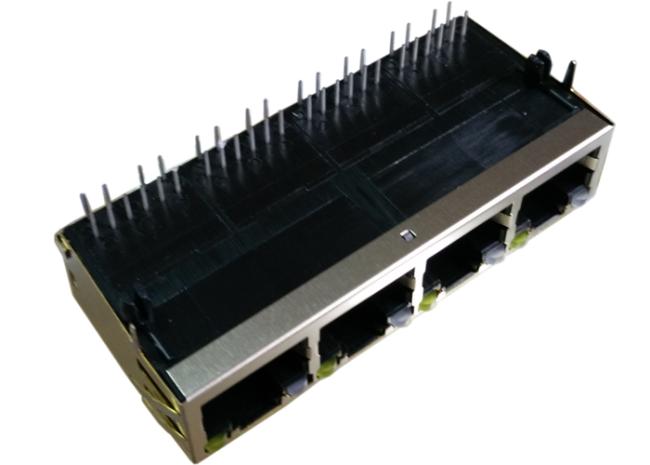

0826-1B4U-43 Quad Port 1x4 Gigabit Magjack 0826-1B4T-23-F Rj45 10/100/1000 Lan
0826-1B4U-43 Quad Port 1x4 Gigabit Magjack 0826-1B4T-23-F Rj45 10/100/1000 Lan
| 0826-1B4U-43 / 0826-1B4T-23-F | 4 Port Shielded RJ-45 | 1x4 Gigabit Magjak | 10/100/1000 Quad Rj45 jack |
Designing Model: 【0826-1B4U-43 / 0826-1B4T-23-F】
0826-1B4U-43 Quad Port 1x4 Gigabit Magjack 0826-1B4T-23-F Rj45 101001000 Lan
• 0826-1B4U-43 / 0826-1B4T-23-F Rj45 Quad Port jack
• 1x4 Rj45 ConnecTor / Quad Rj45 jack 0826-1B4U-43 / 0826-1B4T-23-F
• Rj45 multi connecTor / 1 x 4 Rj45 Shielded 0826-1B4U-43 / 0826-1B4T-23-F
• 1x4 Lan Rj45 / 1x10/100/1000Base-Tx Fast Ethernet Rj45
• Rj45 1x / 1xRj45 1GB 0826-1B4U-43-F
• Rj45 1x4 Ethernet Connector / Connecteur Multiple Ethernet
• 1 x 4 Rj45 Lan Jack For Lan Insert
• Operating temperature 0° to +70° C
• Storage temperature -40° to +85° C
• Integrated design conserves valuable board space
• Minimum interwinding breakdown voltage of 1500 Vrms
• Adaptable, modular design provides higher reliability
• Reduced pin count for improved crosstalk and optimum PCB trace routing
• Mass Production Part [LPJXXXXNL]
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
0826-1B4U-43 Quad Port 1x4 Gigabit Magjack 0826-1B4T-23-F Rj45 10/100/1000 Lan
MAGNETICS SPECIFICATIONS @ 25˚C
TURNS RATIO: 1CT:1CT ±3%
OCL(100 KHz, 0.1 V , 8 mA) 350 µH MIN
INSERTION LOSS:
1-100 MHz -1.1 dB MAX
RETURN LOSS:
1-40 MHz -18 dB MIN
60 MHz -14 dB MIN
80 MHz -12 dB MIN
100 MHz -10 dB MIN
CROSSTALK (1-100 MHz) -40 dB MIN
CMR (1-100 MHz) -40 dB TYP
ISOLATION 1500 Vrms
MATERIALS AND FINISH
HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK
SHIELDING: Cu ALLOY , PLATED WITH Ni
CONTACTS: PHOSPHOR BRONZE
CONTACT FINISH: Au, 0.8µm [30µin]/6u/15U/30U/50U optional
TERMINAL FINISH: Sn
MECHANICAL CHARACTERISTICS
DURABILITY : 1000 MATING CYCLES
ELECTRICAL CHARACTERISTICS
CONTACT RESISTANCE: 30 MILLIOHMS MAX
OPERATING TERMPERATURE: 0˚C TO 70˚C
HIPOT:
1500Vrms MIN Or More
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
0826-1B4U-43 Quad Port
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Other Replaceable List
| 0826-1B4U-43 Quad Port 1x4 Gigabit Magjack 0826-1B4T-23-F Rj45 10/100/1000 Lan | |||
|---|---|---|---|
| 0826-1B4U-43 / 0826-1B4T-23-F | 203218 | 0826-1G1T-23 | 1-6605706-1 |
| 0810-2H4R-28 | 2-1761889-1 | 0826-1G1T-78 | 0826-1G4T-32 |
| 0811-1X1T-06 | 1840506-6 | 1-6610132-1 | 2-1761889-1 |
| 0826-1G4T-32 | 203218 | 2-1761889-1 | 1840506-6 |
| 1761889-1 | 0826-1B4U-43 / 0826-1B4T-23-F | 1761889-3 | 2-1761889-3 |
| 0813-1X1T-43 | 1-1840402-6 | 6-1840402-7 | 2-1761889-1 |
| 2-1761889-3 | 203218 | 203218 | 1840402-6 |
| 1-1840402-6 | 2-1761889-3 | 0826-1X1T-M1-F | 6-1761889-8 |
| 203218 | 1761889-1 | 0826-1B4U-43 / 0826-1B4T-23-F | 1-1840402-6 |
| 1761889-8 | 6-1840402-1 | 203218 | 203218 |
| 2-1761889-1 | 1761889-1 | 1761889-3 | 0826-1D4T-M1-F |
| 0826-1A1T-32-F | 203218 | 6-1840402-1 | 1761889-2 |
| 2-1761889-3 | 2-1761889-2 | 203218 | 0826-1B4U-43 / 0826-1B4T-23-F |
