LINK-PP LPJG0843GENL Gigabit RJ45 Connector with 1500Vrms Hi-Pot
Discover the LINK-PP LPJG0843GENL Gigabit RJ45 connector, a single-port 10/100/1000 Base-T tab-down RJ45 jack with integrated magnetics, green/yellow LEDs, EMI tabs, and RoHS compliance.
Key Features of LPJG0843GENL Gigabit RJ45 Connector
The LINK-PP LPJG0843GENL is a premium, high-performance Gigabit RJ45 Connector featuring integrated 1000 Base-T magnetics. Designed to meet IEEE 802.3 specifications, this single-port (1x1) connector ensures reliable Ethernet connectivity for Non-PoE applications. Featuring a space-saving Tab-Down, side-entry design with built-in EMI shielding and Green/Yellow LED indicators, it is the ideal networking component for SOHO devices, motherboards, hubs, and switches.
- Network Speed: 10/100/1000 Base-T (Gigabit Ethernet)
- Configuration: 1x1 Single Port, 10p8c (RJ45)
- Orientation: Right Angle (90°), Side Entry PCB Mount, Tab Down
- Shielding: Integrated stainless steel shield with EMI tabs for excellent noise reduction
- Visual Indicators: Integrated LEDs (Left: Green, Right: Yellow)
- Compliance: Fully RoHS Compliant (2011/65/EU) and meets IEEE 802.3 standards.
Specifications of LPJG0843GENL 1000Base-T RJ45
1. General Specifications
| Parameter | Specification |
|---|---|
| Part Number | LPJG0843GENL |
| Manufacturer | LINK-PP INT'L TECHNOLOGY CO., LIMITED |
| Part Status | Active |
| Connector Type | RJ45 Connector with Integrated Magnetics |
| Application | LAN Ethernet (Non-PoE) |
| Number of Ports | 1x1 Single Port |
| Network Speed | 10/100/1000 Base-T |
| Mounting Type | Through Hole |
| PCB Mounting | Side Entry |
| Orientation | 90° Right Angle |
| Latch Configuration | Tab Down |
| Shielding | With EMI Tabs |
| LED Indicators | Green / Yellow |
| Operating Temperature | 0°C to +70°C |
| Dimensions (L × W × H) | 0.837" × 0.627" × 0.524" (21.25mm × 15.93mm × 13.30mm) |
| Compliance | RoHS (2011/65/EU) |
2. Electrical Specifications (@ 25°C)
| Electrical Parameter | Test Condition / Frequency Range | Performance |
|---|---|---|
| Turn Ratio | Primary : Secondary | 1CT:1CT (±2%) |
| OCL (Open Circuit Inductance) | @100KHz, 0.1V, 8mA DC Bias | 350µH Min |
| Hipot Isolation Voltage | - | 1500 Vrms Min |
| Insertion Loss | 1 ~ 65 MHz | -0.5 dB Max |
| Insertion Loss | 65 ~ 100 MHz | -0.8 dB Max |
| Insertion Loss | 100 ~ 125 MHz | -1.2 dB Max |
| Return Loss (100Ω Load) | 1 ~ 30 MHz | -16 dB Min |
| Return Loss (100Ω Load) | 30 ~ 40 MHz | -13.5 dB Min |
| Return Loss (100Ω Load) | 40 ~ 50 MHz | -11.5 dB Min |
| Return Loss (100Ω Load) | 60 ~ 80 MHz | -10 dB Min |
| Cross Talk | 1 ~ 100 MHz | -30 dB Min |
| Common Mode Rejection | 1 ~ 100 MHz | -30 dB Min |
3. LED Specifications
| LED Parameter | Condition | Specification |
|---|---|---|
| Left LED Color | - | Green |
| Left LED Wavelength | - | 565nm |
| Right LED Color | - | Yellow |
| Right LED Wavelength | - | 585nm |
| Forward Voltage (VF) | @ 20mA | 1.8V ~ 2.6V |
| Reverse Leakage Current (IR) | @ 5V | 10µA Max |
4. Material Specifications
The LPJG0843GENL Gigabit RJ45 connector is constructed using industrial-grade materials to ensure mechanical durability and stable electrical performance.
| Material Component | Specification |
|---|---|
| Housing Material | Thermoplastic PBT + 30% Glass Fiber |
| Flammability Rating | UL94V-0 |
| Contact Material | Phosphor Bronze (C5210R-EH), 0.35mm |
| Contact Plating | Gold over Nickel, Min 6µ" Gold |
| Pin Material | Brass (C2680R-H), 0.35mm |
| Shielding Material | Stainless Steel (SUS 201-1/2H), 0.2mm |
| Wave Solder Temperature | 265°C Max for 5 Seconds |
LPJG0843GENL LINK-PP RJ45 Datasheet

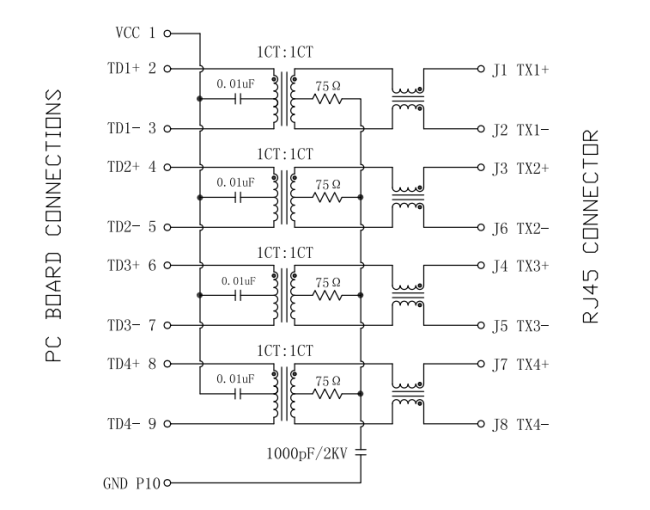

1. LPJG0843GENL Gigabit RJ45 Connector Datasheet - Schematic

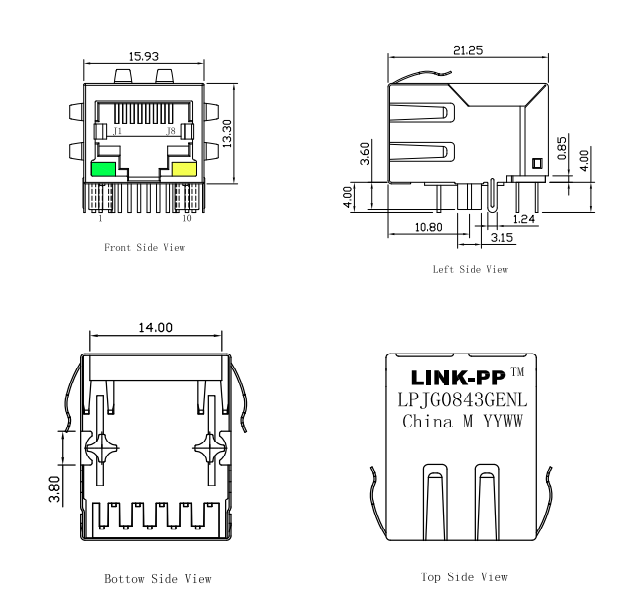

2. LPJG0843GENL Gigabit RJ45 Connector Datasheet - Mechanical

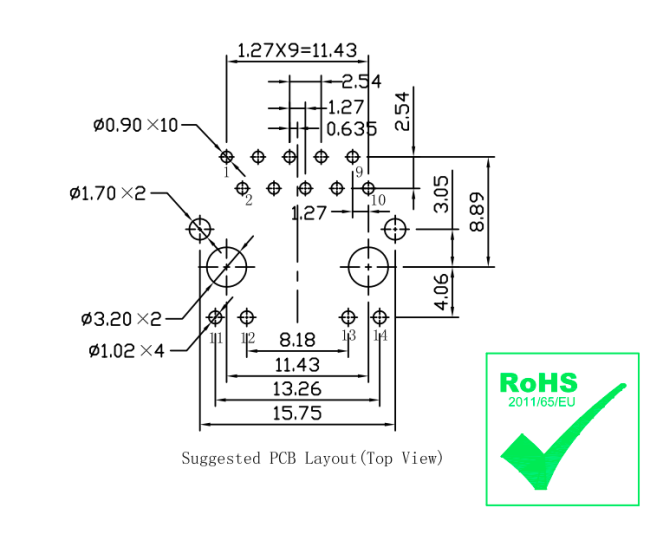

3. LPJG0843GENL RJ45 Datasheet - Suggested PCB Layout
Why Use an Integrated RJ45 Connector?
Using an RJ45 connector with integrated magnetics offers several advantages compared with discrete transformer solutions:
- Simplifies PCB routing
- Reduces component count
- Saves board space
- Improves EMI performance
- Enhances signal isolation
- Accelerates product development
- Improves manufacturing consistency
For Gigabit Ethernet applications, integrated magnetic RJ45 connectors like the LPJG0843GENL provide an efficient and cost-effective networking interface solution.
FAQ About LPJG0843GENL RJ45 with Magnetics:
1. What is the LPJG0843GENL?
The LPJG0843GENL is a single-port RJ45 connector with integrated 1000 Base-T magnetics designed for Gigabit Ethernet networking applications.
2. Does the LPJG0843GENL support Gigabit Ethernet?
Yes. It supports 10/100/1000 Base-T Ethernet transmission.
3. Is the LPJG0843GENL suitable for PoE applications?
No. This model is intended for LAN Ethernet non-PoE applications.
4. What mounting style does the connector use?
It uses a through-hole side-entry PCB mounting configuration with a 90° right-angle orientation.
5. Does this RJ45 connector include shielding?
Yes. It includes EMI tabs and a stainless-steel shield for improved EMI protection.
6. What LED colors are integrated into the connector?
The connector includes Green and Yellow LED indicators.
