LPJ27002-2CNL Cross 7499061000 Rj45 Female Connectors
LPJ27002-2CNL Cross 7499061000 Rj45 Female Connectors
|
Cross 7499061000 |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
7499061000 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJ27002-2CNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Rj45 2x2 Magnetics |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
7499061000 Electrical Specifications @25℃

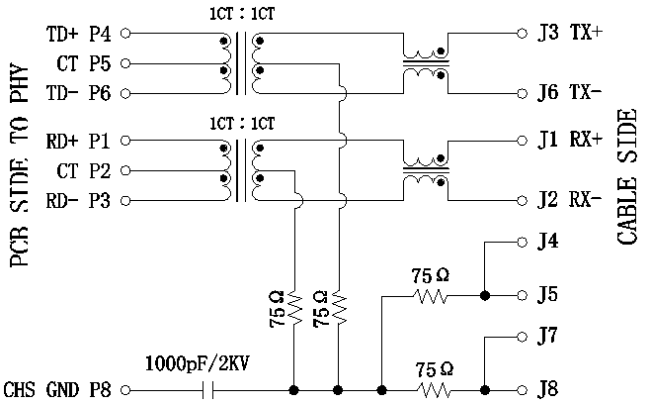

1.Turns Ratio(%%P3%):
TX=1CT∶1CT RX=1CT∶1CT
2.Inductance(@100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Insertion Loss:
1-65MHz: -1.0dB MAX
4.Return Loss(100Ω%%P15Ω):
1-10MHz: -20dB MIN
10-30MHz: -16dB MIN
30-60MHz: -12dB MIN
60-80MHz: -12dB MIN
5.Crosstalk:
1-30MHz: -40dB MIN
30-60MHz: -35dB MIN
60-100MHz: -30dB MIN
6.Common Mode Rejection:
1-50MHz: -30dB MIN
50-150MHz: -20dB MIN
7.Hipot: 1500Vrms
8.Operating Temperature: -40℃～+85℃.
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
