Belfuse SI-51005-F Magjacks RJ45 Connector With LEDs LPJG17332AWNL
SI‑51005‑F is a single-port RJ45 Jack with integrated magnetics, shielded EMI shell, gold‑plated contacts, and right‑angle through‑hole mount — ideal for Gigabit Ethernet, industrial switches, routers, media converters, and embedded network devices requiring compact design and reliable EMI performance.
Overview of Gigabit Magjack
The SI-51005-F is a high-performance 1×1 RJ45 Integrated Connector Module (ICM) designed for 10/100/1000Base-T Ethernet applications.
It integrates the RJ45 interface, magnetics (transformer, chokes), EMI components, LEDs, and shielding into one compact module, significantly reducing PCB layout complexity and improving signal integrity.
This connector is ideal for network devices requiring high reliability, strong EMI suppression, and efficient PCB design, including switches, routers, industrial controllers, IoT gateways, and embedded Ethernet systems.
Belfuse SI-51005-F Magjack Datasheet

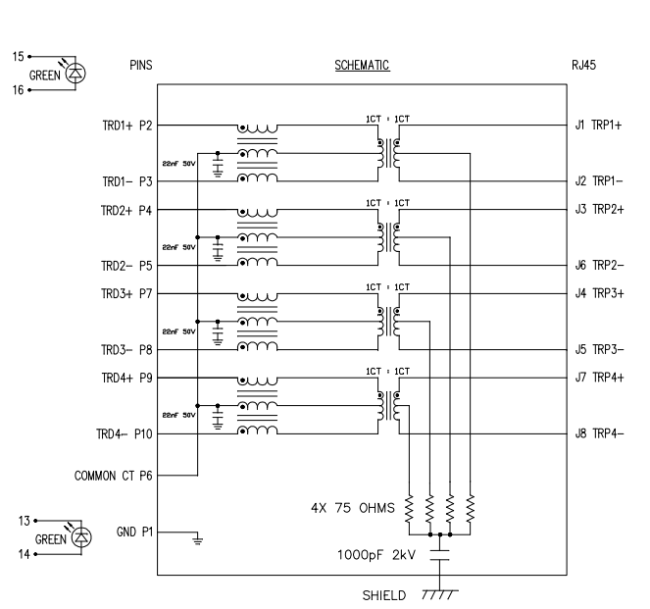

SI-51005-F Datasheet-Schematics
SI-51005-F Datasheet-PCB Layout
SI-51005-F Technical Specifications
Electrical
| Parameter | Description |
|---|---|
| Ethernet Speed | 10/100/1000Base-T |
| Magnetics | Integrated transformer + EMI components |
| LEDs | Green / Green (Link & Activity) |
| Isolation Voltage | 1500 Vrms (typ.) |
Mechanical
| Parameter | Description |
|---|---|
| Connector Type | RJ45, 1×1, 8P8C |
| Mounting Style | Through-Hole, Right-Angle |
| Shielding | Yes, metal shield with EMI fingers |
| Contact Material | Copper alloy |
| Contact Plating | 50 µin gold |
| Housing Material | Thermoplastic, UL 94V-0 |
| PCB Height | 0.550 in (13.97 mm) |
Environmental
| Parameter | Value |
|---|---|
| Operating Temperature | −40°C to +85°C |
| Storage Temperature | −40°C to +85°C |
| RoHS | Compliant |
Applications of SI-51005-F Magjacks
- Industrial Ethernet equipment
- Network switches & routers
- Media converters
- Embedded network control boards
- Smart IoT devices
- Home gateways & CPE equipment
- IP cameras & NVR systems
- Automation controllers (PLC, HMI)
