China LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED for sale

LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

Price Negotiable
Price: $0.11-$24
MOQ: 50/500/1000/60K
Delivery Time: Stock
Brand: LINK-PP
Product Description

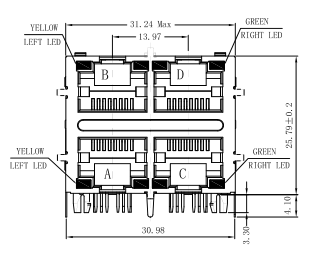

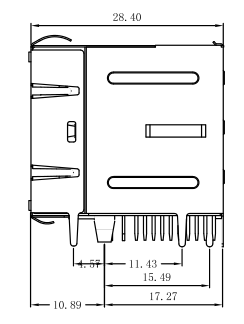

LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED
  • 4x Magnetic Rj45 Fast Ethernet
  • LPJ27434AGNL # LINK-PP
  • R/A Shield Connector
  • 6u,15,30u,50u Gold Plating
  • 2x2 Port Ethernet Port

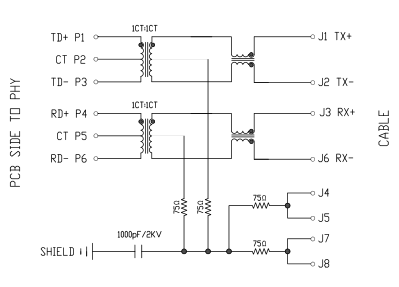

Electrical Specifications @25℃


2.Turns Ratio:
TX = 1CT∶1CT
RX = 1CT∶1CT

3.Insertion Loss:
0.1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-18 30～60MHz:-16
60～100MHz:-12
5.Crosstalk(dB Typ):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Typ):
1～50MHz:-30 50～150MHz:-20
8.Hi-Pot: 1500Vrms @60Hz
9.Operating Temperature: -40℃～+85℃.





LINK-PP 2x2 Magjack Rj45 Series Available Part
LPJ27434AWNL LPJ27434AFNL LPJ27434CNL
LPJ27434AWNLDJE LPJ27434DHL LPJ27434AGNL
LPJ27434BGNL LPJ27434BFNL LPJ27434BWNL
