China LPJD0012BDNL Vertical Rj45 RJ45 Magnetics Jack , 10/100Mbps, Straight 180 Degree for sale

LPJD0012BDNL Vertical Rj45 RJ45 Magnetics Jack , 10/100Mbps, Straight 180 Degree

Price Negotiable
Price: Supportive&Discount
MOQ: 50/500/1000
Delivery Time: Stock
Brand: LINK-PP
Product Description

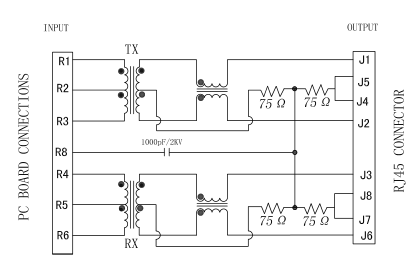

LPJD0012BDNL Vertical Rj45 RJ45 Magnetics Jack , 10/100Mbps, Straight 180 Degree

  • LPJD0012BDNL LINK-PP RJ45 With Integrated Magnetics
  • 1CT:1CT  10/100Mbps, Straight 180 Degree
  • Isolation @ 60Hz: Input to output:1500Vrms.
  • Rj45 Shield With LED
  • Top Entry Rj45 Jack

Electrical Specifications @ 25℃
1.Turns Ratio:
TX=1:1

RX=1:1
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
0.3～100MHz:-1.2dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-16 40MHz:-13.5
50MHz:-11.5 60～80MHz:-10
5.Crosstalk(dB Min):
30MHz:-40 60MHz:-36
100MHz:-30
6.Differential to Common Mode Rejection:
30MHz:-35dB Min 60MHz:-32dB Min
100MHz:-30dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature Range:0℃～70℃.
