4x10/100Mbps PulseJack JX80-0022NL / LPJ46404AFNL Green LED Rj45 Connectors

4x10/100Mbps PulseJack JX80-0022NL / LPJ46404AFNL Green LED Rj45 Connectors

1. LINK-PP LPJ46404AFNL Four Port Filter Rj-45
2. Cross Equivalent to JX80-0022NL PulseJack

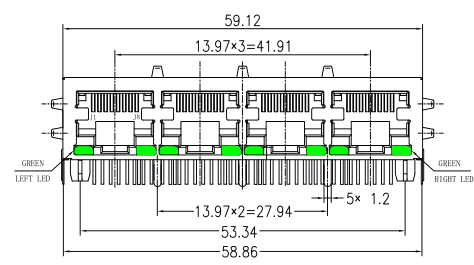

3. Rj45 4x 10/100Base-T Ethernet Filtered Jack With GREEN-LED Indicators
4. Rj45 With Integrated Magnetics Industry standard
5. Fully IEEE803.2 Compliant over entire temperature range -40°C to +85°C

Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-16 30～60MHz:-12
60～80MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Hipot: 1500V AC 6S 1mA
8.Operating Temperature: -40℃～+85℃.
