China JKM-0010NL , LPJ0011CNL RJ45 1x10/100M 8P8C Connector Lan Magnetics Jack for sale

JKM-0010NL , LPJ0011CNL RJ45 1x10/100M 8P8C Connector Lan Magnetics Jack

Price Negotiable
Price: $0.09-$1.85
MOQ: 50/500/1000/25K
Delivery Time: Stock
Brand: LINK-PP
Product Description

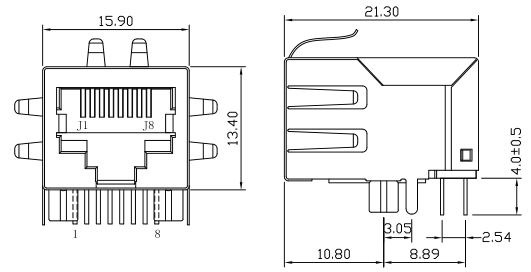

JKM-0010NL , LPJ0011CNL RJ45 1x10/100M 8P8C Connector Lan Magnetics Jack
  • 1X1 Tab-Down RJ45 LPJ0011CNL 10/100Mbps Fast Ethernet
  • Transformer RJ45 8P8C pin Integrated Magnetics Connector
  • Cross Equivalent JKM-0010NL Pin to Pin Replace Cost-Effective
  • Meets IEEE802.3 specification
  • 350μH minimum OCL with 8mA DC bias current
  • Temperature range from 0℃ TO 70℃





ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%): 1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 0.3-100MHz
-1.5dB MAX @100-125MHz
4.Return Loss:
-15dB MIN @ 40MHz
-13.1dB MIN @ 50MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 100MHz
5.Cross talk:
-45dB MIN @ 30MHz
-40dB MIN @ 60MHz
-35dB MIN @ 100MHz
6.Common Mode Rejection:
-43dB MIN @ 30MHz
-37dB MIN @ 80MHz
-33dB MIN @ 100MHz
7.CMRR: -30dB Min @1-100MHz
8.Hipot Test: 1500Vrms MIN
9.Operating Temperature Range: 0℃ TO 70℃
