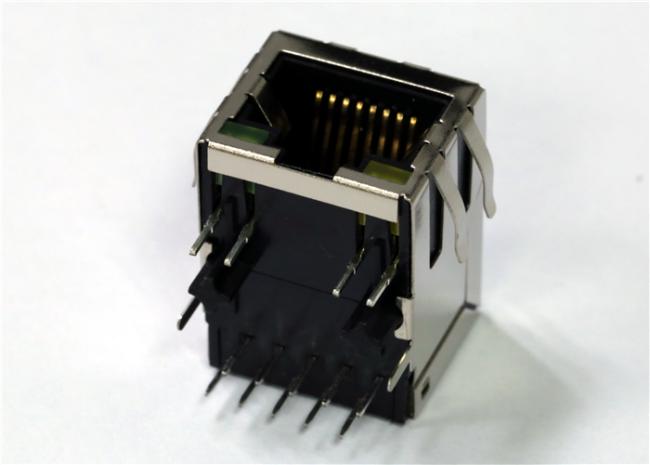

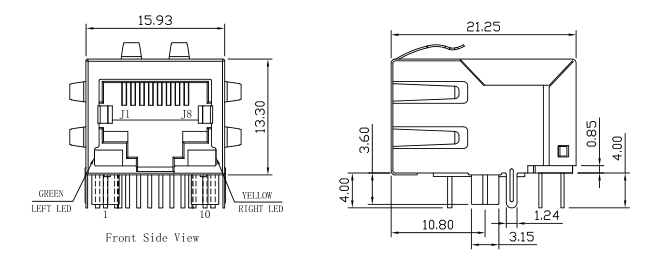

1-2301994-0 Industrial RJ45 Magjack With Integrated Magnetics
| Parameter | Specification |
|---|---|
| Modular Connector Type | RJ45 Jack |
| Port Configuration | 1 x 1 (Port) |
| No. of Positions / Loaded Contacts | 8P8C |
| LAN Category | Cat6 |
| Connector Mounting | Through Hole Mount |
| Connector Orientation | Right Angle |
| Shielding | Shielded |
| Magnetics | With Magnetics |
| LEDs | With LED |
| Light Pipes | Without Light Pipe |
| Speed | 1G |
| Ports | 1 x 1 |
| Orientation | R / A |
| Tab | Down |
| Operating Temperature Range | -40°C to 85°C |
| Packaging | T&R |
| Voltage Mode | Yes |
| Current Mode | Yes |
KEY FEATURES
• Extended Operating Temperature from -40°C to +85 °C
• Minimum product life requirement of 10 years
• 260 °C reflow Pin in Paste Soldering
• Plating thickness 0,76 µm [30 µinch] gold over
1,27 µm [50 µinch] nickel
• Improved EMI integrity and signal integrity performance
• Both current and voltage mode PHY-chips supported
• The RJ45 jack with integrated magnetics with 1x1 form factors addresses many of the industrial applications
• Integrated magnetics reduces the (analog) design efforts
required by the customer
• Offering standardized Tape & Reel or Tray packing for fully
automated or manual assembly process
Jack Placement Note:
The RJ45 Jack should be handled only by the housing to avoid deformation, contamination, or other damage to the contact solder tines and, where applicable, shield solder tines
A. Alignment
The RJ45 Jack with integrated Magnetics shall be flush and evenly seated on the PC board. A hold-down may hold the jack in place during the soldering process.
B. Position
Determine which hole in the PC board is to receive the number one contact tine, then orient the jack so the number one solder tine is aligned with the hole. Start all solder tines into the board, then press the top of the jack until it sits on the PC board.
