Dual Port SMD Gigabit Magnetic POE Transformer / POE+ Isolation Magnetic LP6080NL
Price:
$0.06-$3.2
MOQ:
400/2000/10K/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description

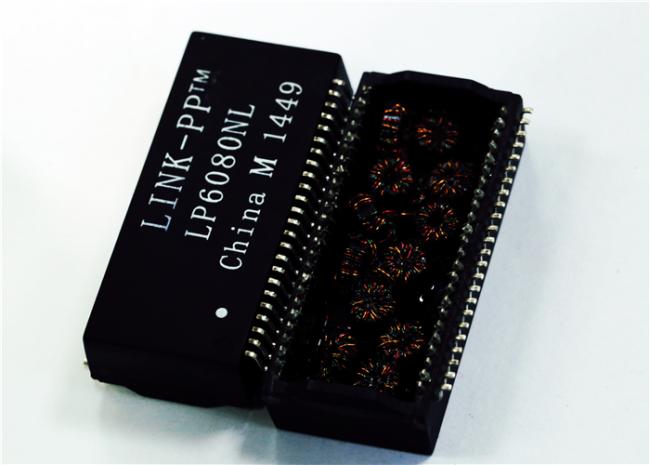

Dual Port SMD Gigabit POE Magnetic Transformer / POE+ Isolation Magnetic LP6080NL
Product Features:
LP6080NL Dual 1000Base-T POE Magnetic Transformer
IEEE802.3af/at Compliant
RoHS & UL Certificate
100% Electrical Testing
1500Vrms Hi-Pot
Patented Open Frame Construction
| Mounting | Surface Mount |
| Family | 100/1000M POE/POE+ Magnetics |
| Transformer Type | Isolation Transformer |
| Minimum Crosstalk | -40@100MHz dB |
| Lead Style | Gull Wing |
| Package Type | SMD |
| Maximum OCL Inductance | 0.35 mH |
| Maximum Isolation Voltage | 1500 Vrms |
| Minimum CMRR | -40@1MHz to 100MHz dB |
| Minimum Return Loss | -10@100MHz dB |
| Turns Ratio | 1:1 |
| Operating Temperature | -40 to 85 °C |
| Packaging | Tape and Reel |
| Maximum Insertion Loss | -1.1@1MHz to 100MHz dB |
| Product Length | 28.00 mm |
